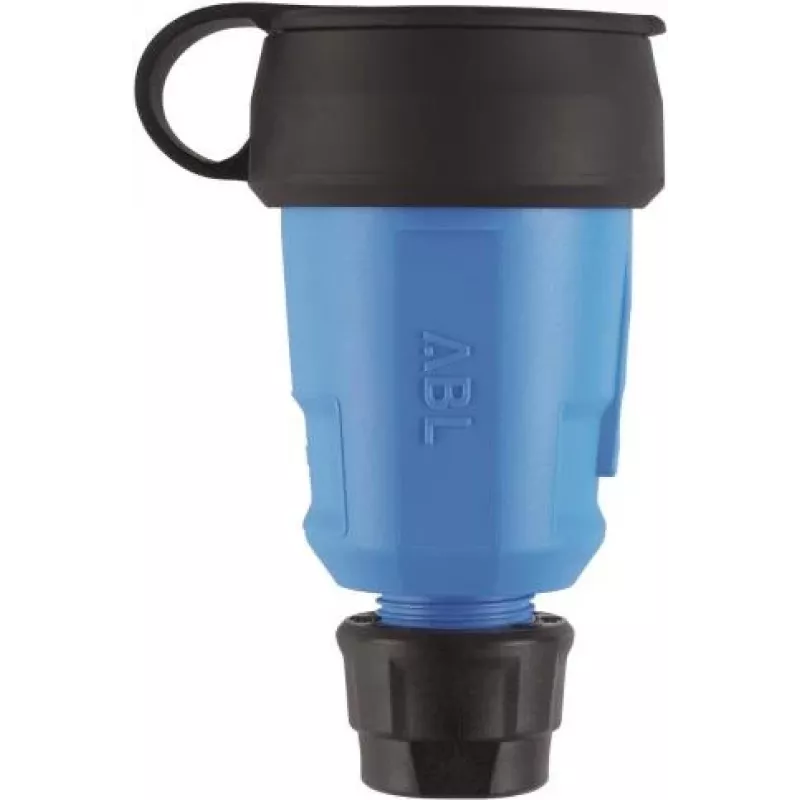

ABL 100000082 Hight Coupling 1580 SK MD azul

This Schuko coupling provides a secure 16 A connection for portable power distribution in damp or outdoor environments. Its blue thermoplastic housing and IP44 splash protection make it suitable for construction sites and workshops.

Advantages

The coupling features screw terminals for reliable wiring and a straight cable entry that accepts cables up to 13 mm in diameter. Nickel-plated brass contacts ensure consistent conductivity.

Suitable for

• Extension leads and mobile power distribution
• Damp rooms and protected outdoor areas
• Construction sites and workshops

Key specifications

• Connector type: Schuko coupling
• Rated current: 16 A
• Rated voltage: 250 V AC
• Number of poles: 2P+E
• Protection class: IP44
• Connection: Screw terminals
• Max. cable diameter: 13 mm
• Housing material: Thermoplastic (polyamide)
• Contact material: Brass, nickel-plated
• Colour: Blue

Recommendations

Pair with a matching ABL plug or socket for a complete, splash-proof power connection.
