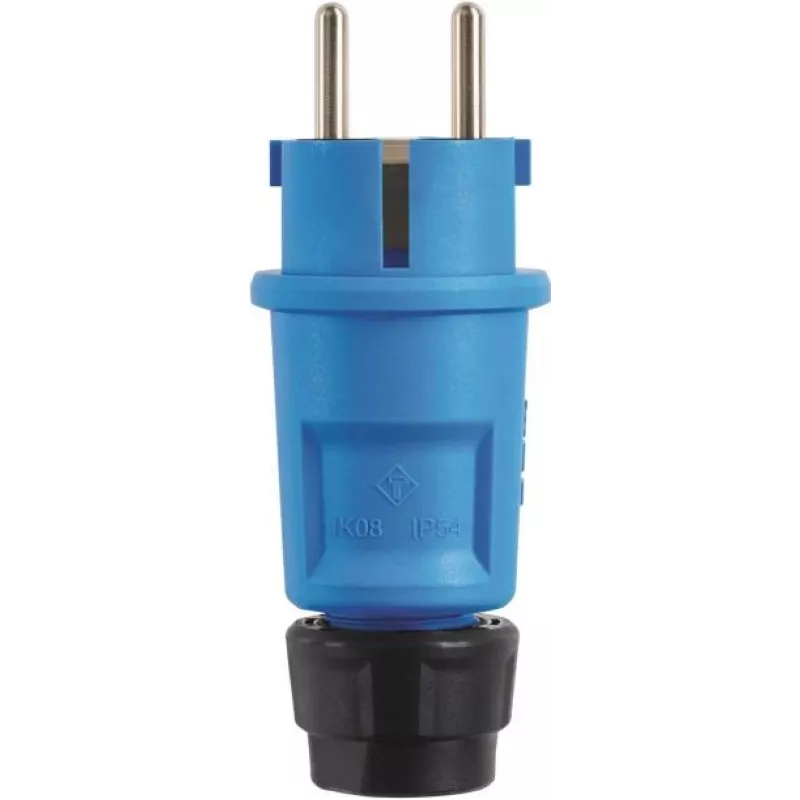

ABL Hightech conector macho SCHUKO 100000066 fr-be Elamid azul IP54 Type 1520 10A

Loose or poorly sealed plug connections in damp or dusty environments can lead to short circuits, corrosion, and even electric shock. The ABL Hightech SCHUKO plug 100000066 fr-be eliminates this risk with a robust IP54-rated housing that keeps moisture and particles away from live contacts. Built for reliable power delivery in demanding conditions, this plug is the safe choice for workshops, outdoor installations, and industrial equipment.

Who is it for

Electricians, maintenance technicians, and DIY enthusiasts who need a durable, weather-resistant plug for portable devices, power tools, or fixed installations in protected outdoor areas. Ideal for use in caravans, garden equipment, and machinery that requires a secure 10 A connection.

Main features

• IP54 ingress protection: dust- and splash-proof for indoor and protected outdoor use.
• High-quality Elamid (polyamide) housing in blue: impact-resistant, UV-stable, and self-extinguishing.
• SCHUKO (Type F) system: compatible with standard European sockets, 2-pole + earth.
• Rated for 10 A / 250 V AC: suitable for a wide range of appliances and tools.
• Screw terminals accept conductors up to 2.5 mm², ensuring a secure and durable connection.
• Straight cable entry with strain relief for cable diameters from 6 to 13 mm.
• Complies with VDE and CE standards for safety and performance.

Specifications

• Brand: ABL SURSUM GMBH & CO. KG
• Model: 100000066
• MPN: 100000066
• EAN: 4011721188959
• Plug type: SCHUKO (Type F)
• Ingress protection: IP54
• Rated current: 10 A
• Rated voltage: 250 V AC
• Number of poles: 2P+E
• Housing material: Elamid (Polyamide)
• Colour: Blue
• Connection type: Screw terminals
• Cable entry: Straight
• Max. cable diameter: 13 mm
• Min. cable diameter: 6 mm
• Max. conductor cross-section: 2.5 mm²
• Operating temperature: -25°C to +70°C
• Standards: VDE, CE
• Application: Indoor & protected outdoor use
• Contact material: Brass
• Product series: Typ 1520

Tips

For optimal performance, ensure the cable is properly seated in the strain relief and the screw terminals are tightened to the recommended torque. Use only with compatible SCHUKO sockets and within the specified temperature range. Regularly inspect the plug for signs of wear or damage, especially after exposure to harsh conditions.
