Accesorio de rack Lanview RAF120BL-UK 1U 4 ventiladores negro

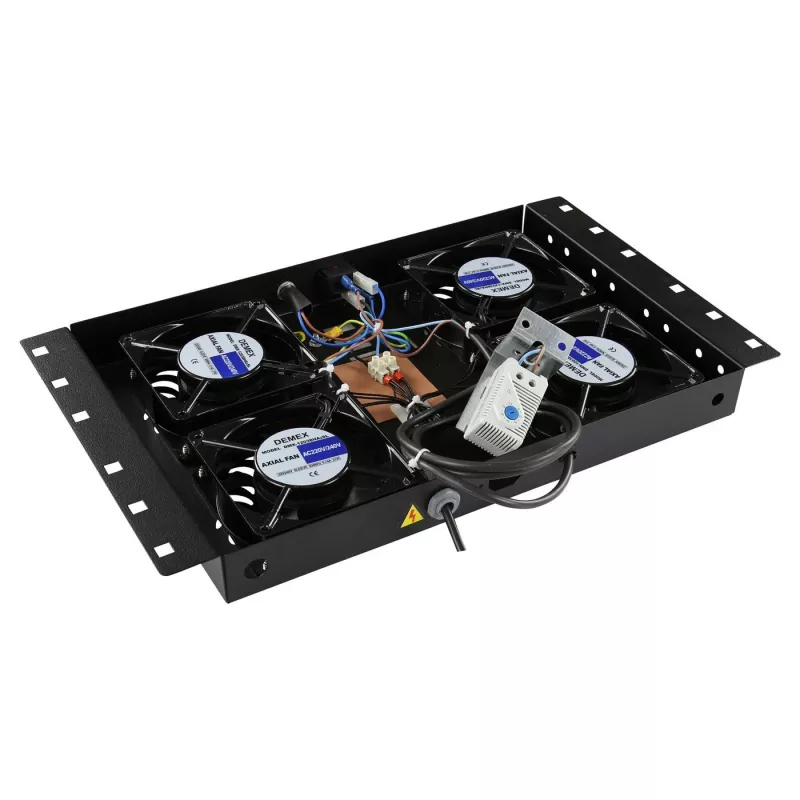

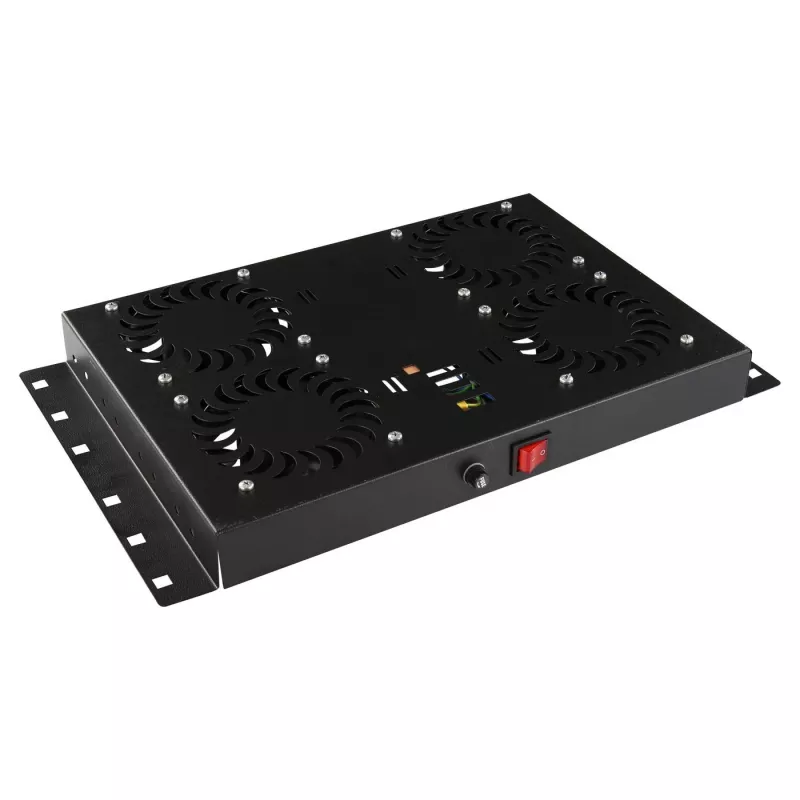

The Lanview RAF120BL-UK is a 1U, roof-mounted rack accessory designed to improve airflow and temperature control in server cabinets. This black module (RAL9005) contains four fans and an analog thermostat to maintain effective ventilation across IT equipment. Its dimensions are 487 mm (W) × 285 mm (D) × 44 mm (H) and it weighs 3.32 kg, providing a compact, universal cooling solution for standard 19-inch racks.

Advantages

The RAF120BL-UK combines four fans with an analog thermostat to deliver up to 560 m³/h airflow, enabling stable cooling without complex digital controls. Its 1U form factor and roof-mounted design simplify installation in server cabinets, while the universal mounting makes it compatible with most standard racks. Constructed in black RAL9005, it integrates unobtrusively into equipment rooms.

Suitable for

• Small and medium server cabinets requiring additional airflow
• Network closets and telecom enclosures
• Edge computing and POE switch racks
• Environments where simple, reliable temperature control is preferred

Key specifications

• Model: RAF120BL-UK
• Form factor: 1U, roof mounted
• Fans: 4
• Air flow: 560 m³/hour
• Thermostat: Analog
• Colour: Black (RAL9005)
• Dimensions: 487 × 285 × 44 mm (W × D × H)
• Weight: 3.32 kg
• Compatibility: Universal for standard 19-inch racks

How to use

Install the RAF120BL-UK in the roof position of a compatible 19-inch rack or cabinet, securing it according to rack accessory mounting procedures. Connect the power and set the analog thermostat to the desired trigger temperature. Verify airflow direction aligns with existing cooling strategy and monitor cabinet temperature after initial startup to confirm correct operation.

Recommendations

For reliable performance, position the unit at the top of the rack to assist hot-air extraction. Avoid obstructing intake or exhaust vents and perform periodic checks of fan operation and thermostat setting. Use in cabinets with adequate cable management and ventilation paths to maximize the RAF120BL-UK’s 560 m³/h airflow efficiency.
