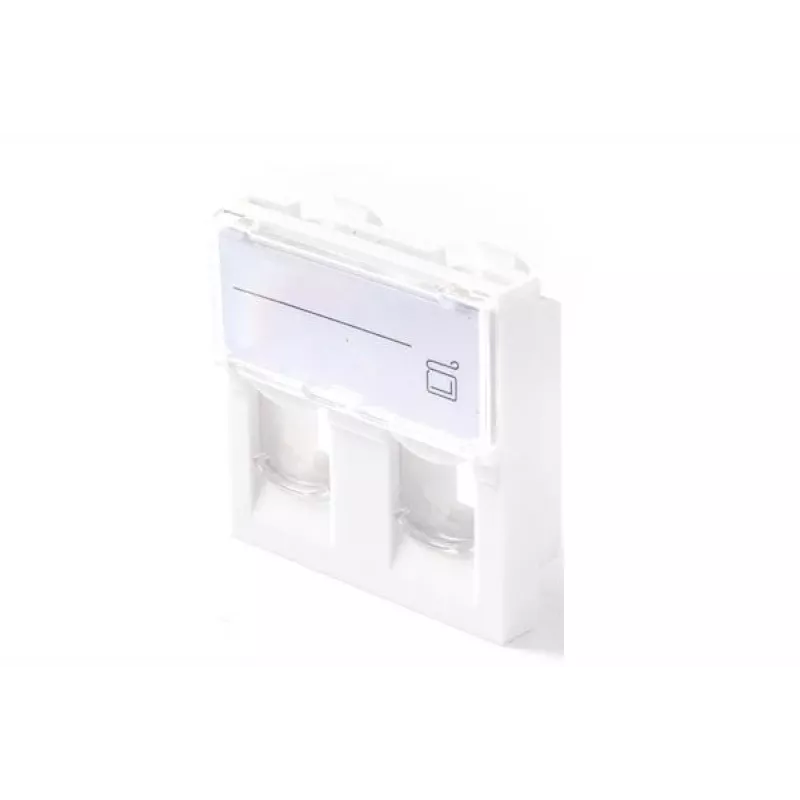

Toma de pared Lanview LKS830 45x45 mm 2 puertos Ethernet

Lanview LKS830 45x45 mm 2-port Ethernet wall outlet is a compact module designed for structured cabling in residential and commercial interiors. The outlet fits standard 45x45 mm mounting frames and provides two RJ45 network ports for wired LAN connections. It is intended to offer a tidy termination point for Ethernet cables, simplifying connection of PCs, routers, IP cameras and other network devices while keeping visible cabling minimal.

Advantages

The two-port configuration allows connection of two separate network devices from a single wall location without additional adapters. Its 45x45 mm form factor ensures compatibility with common European mounting frames and faceplates, enabling straightforward integration into existing installations. The module design supports neat cable management and reduces the need for external patch panels or bulky wall adapters. Materials and contacts are selected for reliable electrical contact and repeated insertions.

Suitable for

• Home Ethernet connections for PCs, smart TVs, game consoles
• Office workstations and meeting rooms requiring wired LAN access
• IP cameras, VoIP phones and networked devices in small installations
• Structured cabling terminations in renovation or new-build projects

Key specifications

• Form factor: 45 x 45 mm module compatible with standard mounting frames
• Ports: 2 × RJ45 Ethernet ports
• Cable termination: IDC or punch-down compatible contacts for Ethernet twisted-pair cables
• Use: Designed for Cat5e/Cat6 class Ethernet cabling (installation dependent)
• Mounting: Fits standard wall plates and surface mounting frames intended for 45x45 mm modules

How to use

Install the Lanview LKS830 into a compatible 45x45 mm mounting frame or wall plate following local electrical and cabling regulations. Terminate the incoming Ethernet cables onto the module’s contacts using the appropriate punch-down or IDC tool, respecting the chosen wiring standard (T568A or T568B). Secure the module in the frame, connect patch cables between the outlet and network devices or switches, and test each port for link and data integrity with a network tester.

Recommendations

For optimal performance, use quality Cat5e or Cat6 twisted-pair Ethernet cables and maintain recommended bend radii and separation from power lines. Label both ends of each cable during installation to simplify future maintenance. Verify wiring standard consistency across the network to avoid connectivity issues.
