Accesorio para cables Bachmann 930.049

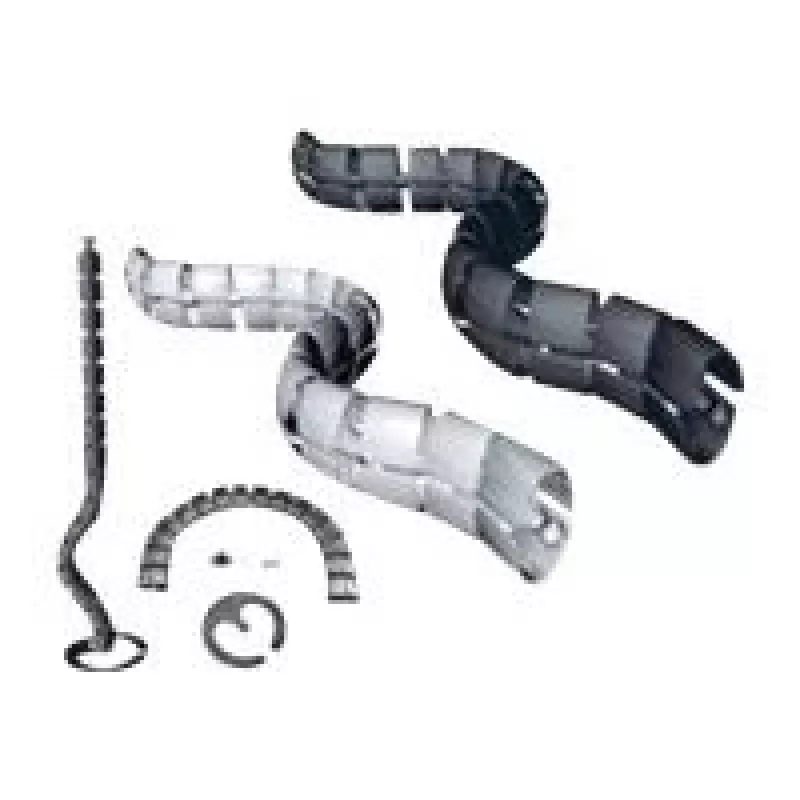

The Bachmann 930.049 cable accessory is a modular, elliptical cable duct made of 16 linked chain segments and supplied with a matching metal base plate and desk attachment. The system is designed to guide and separate cables between desk and floor while maintaining a compact, self-locking shape when segments are pushed together. Total length including base plate and desk attachment is approximately 78 cm; without accessories about 75 cm, and when compressed the set measures approximately 59 cm.

Advantages

The two-chamber chain separates data and power cables to reduce interference and improve cable organization. The chain links slide together to form an enclosed, self-locking profile that keeps cables contained and protected. With a width of approximately 70 mm and a height of about 35 mm, the accessory accommodates multiple cables while maintaining a slim appearance. Supplied metal base plate and desk attachment match the product colour for secure installation.

Suitable for (tasks / use cases)

• Organising power and data cables from desk-mounted devices to the floor
• Separating and protecting network and power lines in office workstations
• Creating a tidy cable route under or behind desks in home offices and meeting rooms

Key specifications

• Brand: Bachmann
• Model / MPN: 930.049
• EAN: 4016514020638
• Number of chain links: 16
• Single link size (W x H): approx. 70 x 35 mm
• Overall length incl. base plate and desk attachment: approx. 78 cm
• Length without accessories: approx. 75 cm
• Length when pushed together (set): approx. 59 cm
• System: 2-chamber for separation of data and power cables
• Colour: black (matching metal base plate and desk attachment)

How to use

Attach the metal base plate to the floor or desired surface and secure the desk attachment to the underside or edge of the desk. Route power and data cables into the designated chambers of the chain links, then connect the links to form the required length. To shorten or compact the duct, push the chain links together until the profile locks in place. Ensure cables are not pinched and that the desk attachment is firmly fixed to prevent movement.

Recommendations

For optimal performance, run data and power cables in separate chambers to minimise interference. Check that cable diameters fit within the approx. 70 x 35 mm link profile before installation and tighten mounting hardware securely. Periodically inspect the chain and attachments for wear and re-tighten as needed.
