Accesorio para cable Bachmann 930.032

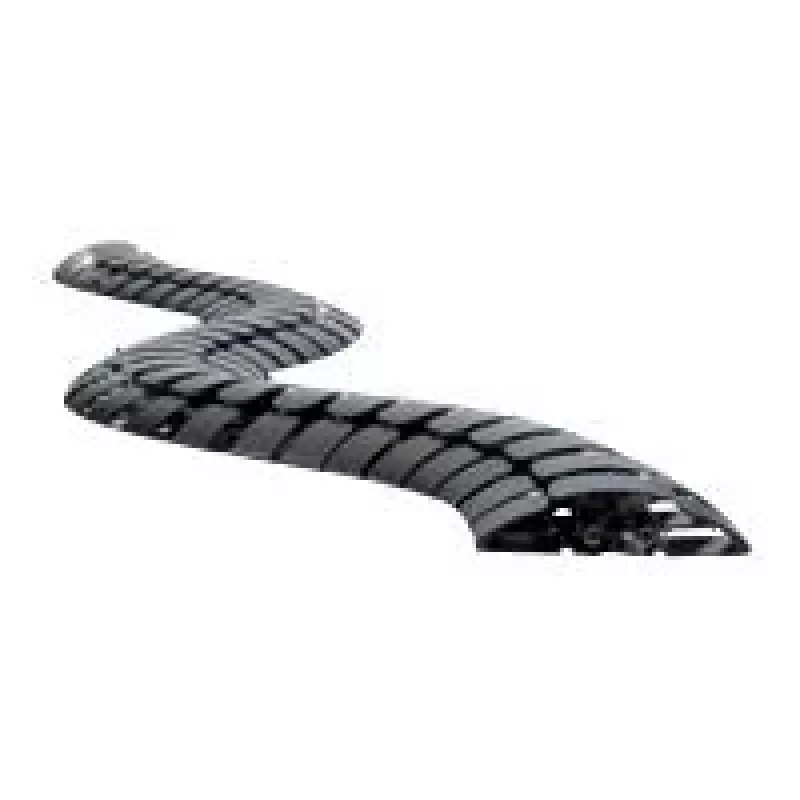

The Bachmann 930.032 cable accessory is a flexible cable chain designed for organized routing and protection of power and data lines. With a width of approximately 90 mm and a two-chamber system, it separates data and power cables while remaining compact when compressed. The product is finished in black and is suitable for office and home environments where durable, visible cable management is required.

Advantages

The two-chamber system keeps data and power cables separated to reduce interference. The design includes 34 chain links and can be compressed from about 100 cm to roughly 70 cm length to save space. Five chain links are rated to withstand short-term loads up to 120 kg, providing increased resistance to being stepped on in high foot-traffic areas. It can be connected directly to Kabelschlange® Classic for extended routing.

Suitable for

• Organizing cables along corridors and passageways
• Separating data and power cables to reduce interference
• Temporary or semi-permanent cable routing in offices and meeting rooms
• Connecting to existing Kabelschlange® Classic systems

Key specifications

• Brand: Bachmann
• Model / MPN: 930.032
• EAN: 4016514018956
• Width x Height per link: approx. 90 x 24 mm
• Chain links: 34 pieces
• Length separated: approx. 100 cm; compressed: approx. 70 cm
• Thickness / height: 24 mm (2.4 cm)
• Colour: Black
• Load capacity (short-term, 5 links): up to 120 kg
• Configuration: 2-chamber system for data and power cables

How to use

Route data and power cables into the separate chambers of the cable chain and close each chamber according to the product's closure mechanism. Adjust the chain length by compressing or extending the links to fit the required span; the chain measures about 100 cm when separated and about 70 cm when pushed together. If needed, connect one end to a Kabelschlange® Classic unit for longer runs, ensuring secure attachment points to prevent movement.

Recommendations

Place the cable chain across walkways only where approved and secure it at both ends. Avoid permanent exposure to heavy point loads; the specified 120 kg load applies to short-term pressure across five links. Inspect connections and cable placement regularly to maintain separation of data and power lines and to prevent wear.
