Accesorio para caja de toma de corriente Kindermann 7448000040

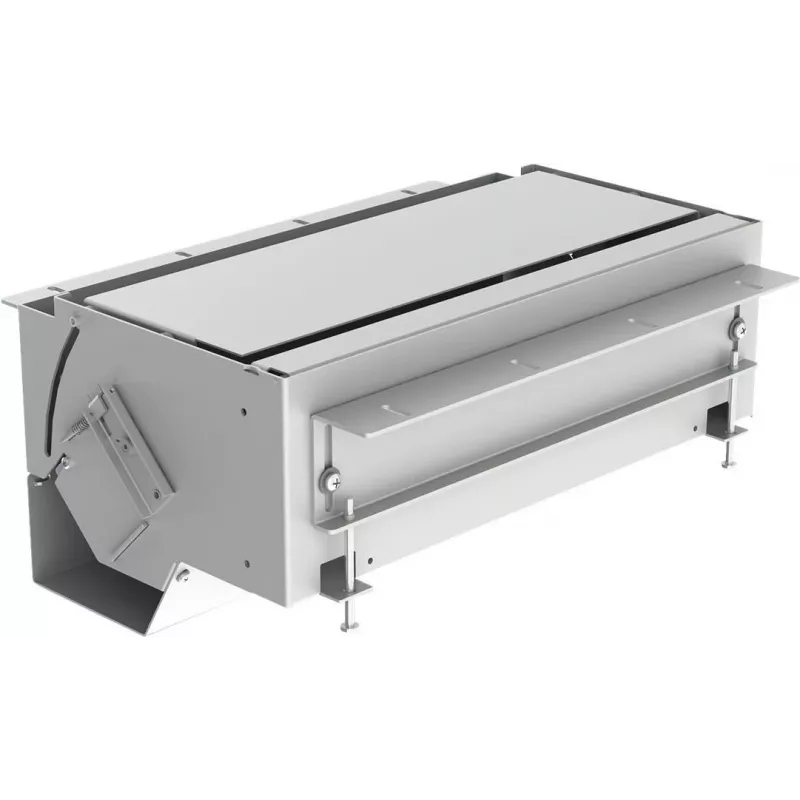

CablePort flex for 6 Adapter Plates — aluminium outlet box accessory for frameless installation into desktops. The lid is made of anodized aluminium and the inner parts are powder-coated in RAL 9006 silver. The unit provides a large opening and ample internal space for cables and computer power supplies and includes a movable flap that allows a cable outlet when the lid is closed. Intended for use with the matching module panel (model series 7448 000 1xx). The individual surface cover is not included and must be provided and fitted on site by qualified personnel.

Advantages

Durable construction from anodized aluminium ensures corrosion resistance and an understated appearance. Powder-coated inner components increase mechanical protection. The design offers generous internal storage space and a movable flap for routed cables while maintaining a closed lid. Compatible with standard adapter plates and a designated module panel series for flexible configuration.

Suitable for

Key specifications

How to use

Cut a rectangular opening of 334 x 193 mm in a desktop with thickness between 15 and 40 mm. Ensure an installation depth of about 160 mm is available beneath the surface. Fit the unit frameless into the cutout and secure as required. Install the appropriate module panel (7448 000 1xx) and mount desired adapter plates (up to six). Route cables through the movable flap to allow passage while the lid is closed. The individual surface cover must be supplied and installed on site by qualified personnel.

Recommendations

For safe and compliant installation, have the surface cover provided and fitted by qualified personnel and verify compatibility of adapter plates and module panel 7448 000 1xx before installation.
