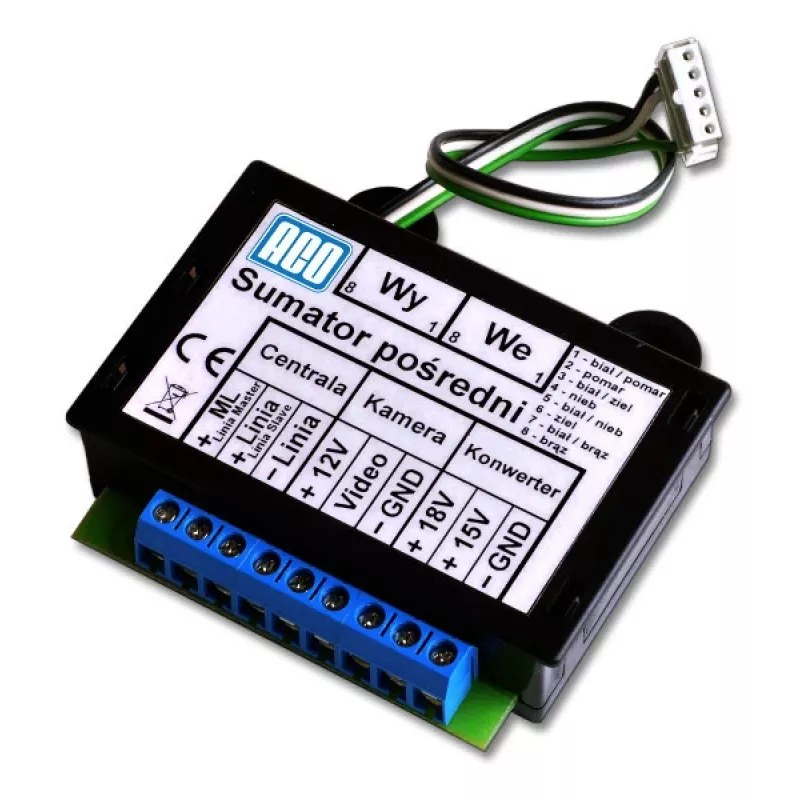

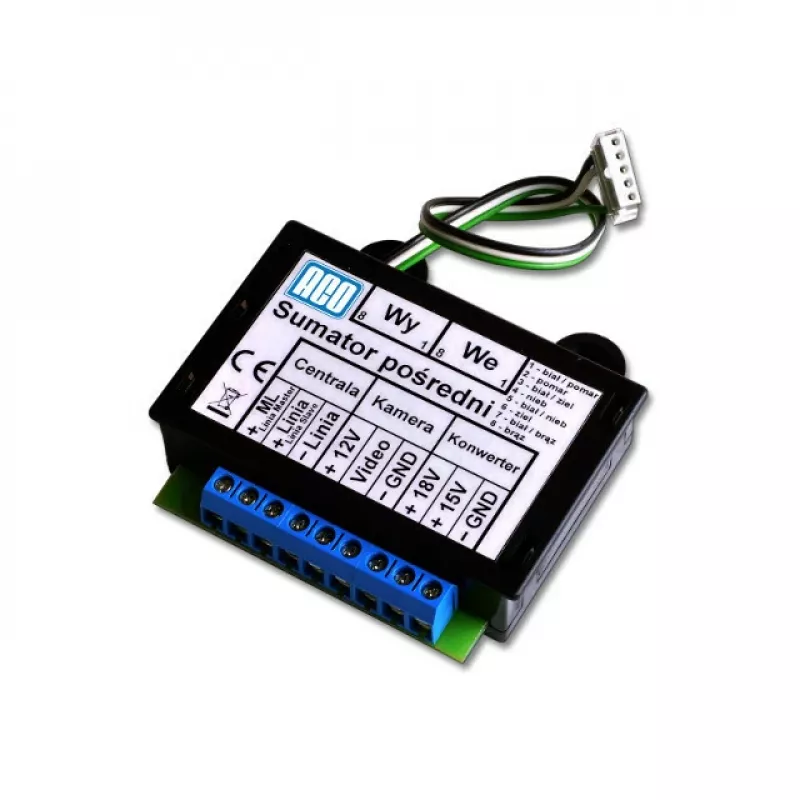

ACO CDNVSp Sumador intermedio para sistema CDNV

The ACO CDNVSp is an intermediate summator (signal combiner) designed for the ACO CDNV digital video intercom system. It combines audio, video, and data signals from multiple CDNV panels or risers into a single bus output, enabling efficient large-scale intercom installations.

Advantages

Simplifies wiring in multi-apartment buildings by consolidating signals from multiple risers. DIN rail mounting saves space in distribution cabinets. LED indicators provide quick status checks.

Suitable for

• Multi-apartment buildings
• Large-scale intercom installations
• Integration with ACO CDNV digital video intercom systems

Key specifications

• Product Type: Intermediate Summer / Signal Combiner
• System Compatibility: ACO CDNV Digital Video Intercom System
• Inputs: 2 x CDNV Bus Inputs
• Outputs: 1 x CDNV Bus Output
• Signal Type: Digital (Audio, Video, Data)
• Power Supply Requirement: 15V DC (external power supply, e.g., ACO TRA-15V, required)
• Mounting Type: DIN Rail (35mm standard)
• Number of DIN Modules: 4 DIN modules
• Housing Material: ABS Plastic
• Operating Temperature: -10°C to +50°C
• Connection Type: Screw Terminals
• LED Indicators: Yes (for power and status indication)
• Application: Indoor use

Recommendations

Use with ACO CDNV compatible panels and an external 15V DC power supply (not included). Ensure proper DIN rail mounting in a dry indoor environment.
