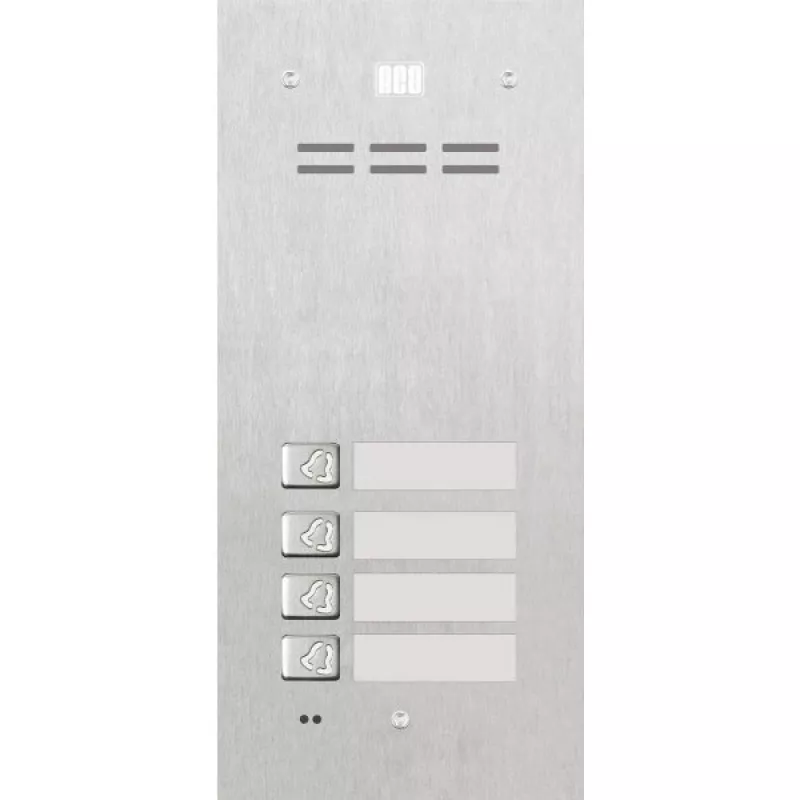

ACO FAM-P-4NPACC panel empotrado para casa de 4 familias con lector de llavero

The ACO FAM-P-4NPACC is a flush-mounted panel for a 4-family house with a key fob reader. It is resistant to weather conditions and acts of vandalism, and supports up to 192 proximity key fobs. The panel offers extensive configuration options and integration with home automation.

Key features

• Resistant to weather conditions and acts of vandalism
• Supports up to 192 proximity key fobs
• Supports multiple expansion modules to increase system functionality
• Supports multi-entry Master/Slave systems
• Home automation: control of external devices such as driveway gates, barriers, lighting, roller shutters
• Possibility to connect multiple receivers under the same number
• Wide possibilities for individual configuration of settings for each unit
• Individual adjustment of sound parameters
• Intuitive and comfortable operation and configuration
• Corridor opening function
• Concierge calling
• Possibility to connect various types of electric strikes
• Possibility to control an electromagnetic lock
• Support for external opening button
• Easily replaceable backlit description field
• Compatible with all digital devices from the CDN, Inspiro and Familio P/PV groups
• Programming from the panel and from a computer using a USB cable
• Outputs: traditional electric strike (max. 1A), reversing electric strike (max. 0.5A), CDN-PK relay module (max. 5A)
• Inputs: 1x normally open (NO) e.g. "bell" button - direct activation of the electric strike with delay up to 255 sec.
• Acoustic and optical signalling of panel functions
• Automatic or remote (via button) door opening without the need to answer the call, and possibility to connect an additional acoustic or light device in the unit to signal ringing (CDN-U)

Specifications

• Brand: ACO
• Model: FAM-P-4NPACC
