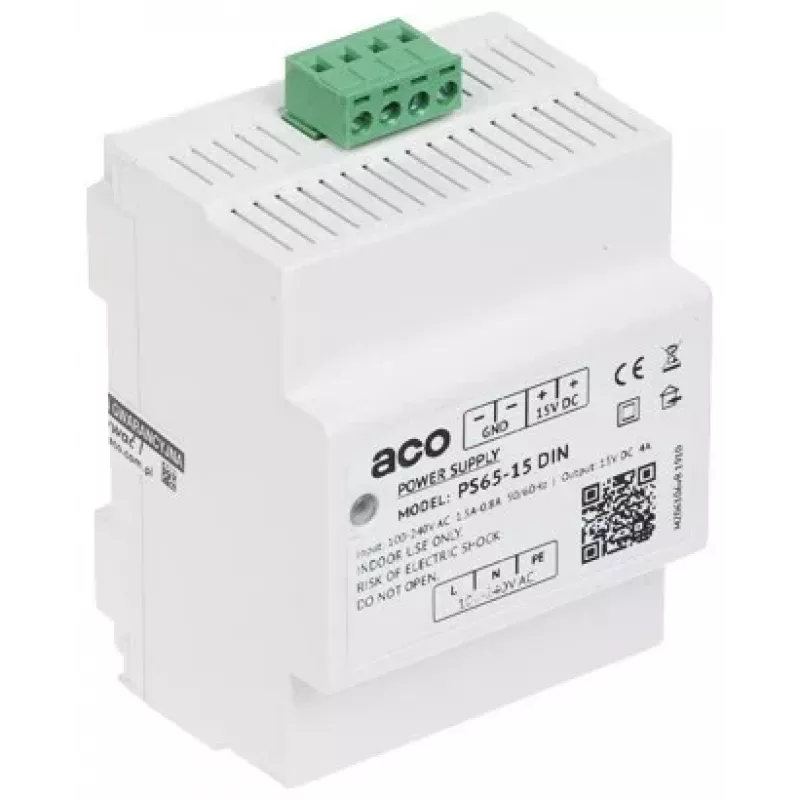

ACO Fuente de alimentación conmutada PS65-15-DIN

The ACO Switching Power Supply PS65-15-DIN is a high-efficiency DIN rail power supply designed for industrial and commercial applications. It provides a stable 15V DC output with 65W power, ensuring reliable operation of connected devices. This unit features a compact metal housing, wide input voltage range, and built-in protection against overcurrent, overvoltage, and short circuits.

Advantages

This power supply offers excellent energy efficiency, reducing operational costs. Its DIN rail mounting simplifies installation in control cabinets. The robust design ensures long-term reliability even in harsh environments.

Suitable for

• Industrial automation systems
• Building management systems
• Security and surveillance equipment
• LED lighting and signage
• Any application requiring a regulated 15V DC supply

Key specifications

• Input voltage: 100-240V AC
• Output voltage: 15V DC
• Output current: 4.33A
• Power: 65W
• Efficiency: >85%
• Operating temperature: -20°C to +70°C
• Dimensions: 90 x 54 x 58 mm
• Weight: 0.25 kg
• Protection: Overload, overvoltage, short circuit
• Certifications: CE, RoHS

Recommendations

For optimal performance, ensure adequate ventilation around the power supply. Use appropriate gauge wiring for the output current. This unit is ideal for powering sensors, controllers, and other 15V devices in industrial settings.
