Acoplador DeLOCK Cat.6 STP sin herramientas

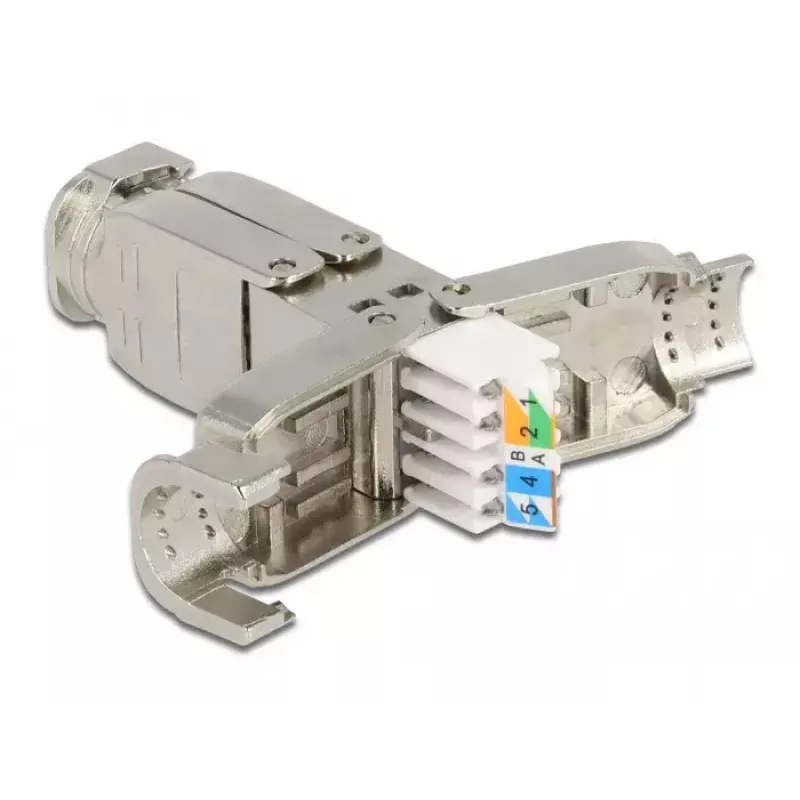

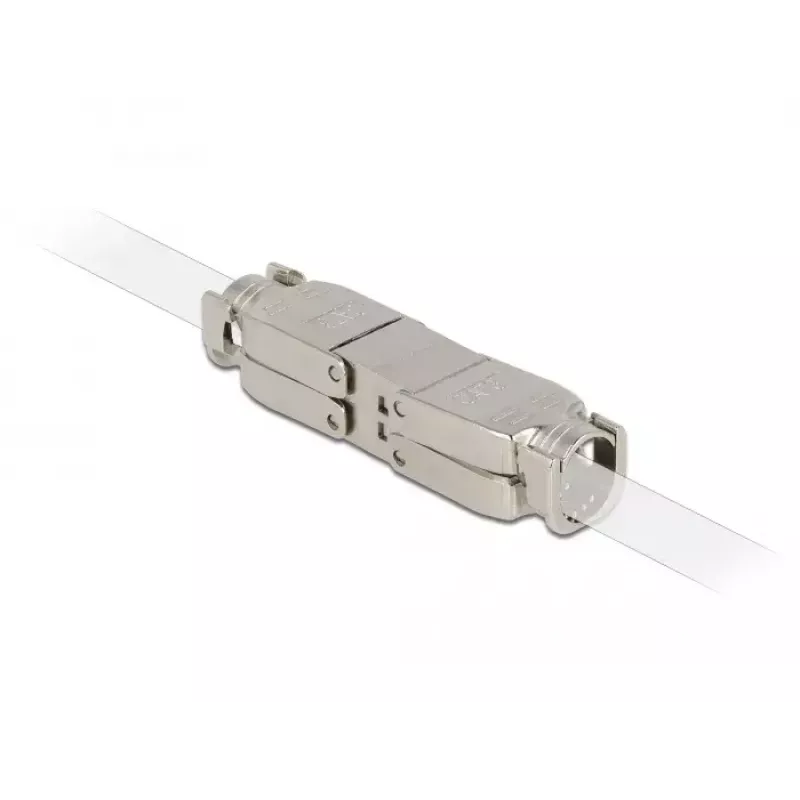

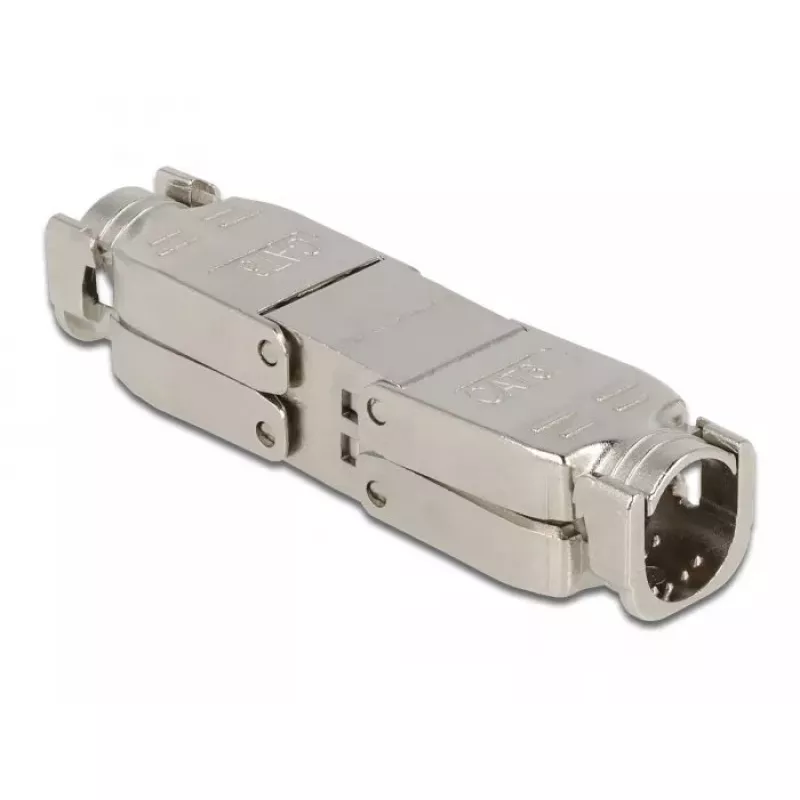

The DeLOCK Coupler Cat.6 STP toolfree is a stainless steel inline adapter designed to join two unterminated network cables (Cat.6 STP) to extend or repair a run without soldering or crimps. It uses LSA block contacts and a tool-free assembly to simplify installation. The compact housing measures 12.8 mm (W) × 59.8 mm (D) × 10.6 mm (H) and is supplied as a single piece.

Advantages

The coupler provides a tool-free connection for Cat.6 STP cables, reducing installation time and eliminating the need for additional tools. Stainless steel construction offers durable mechanical protection for the connection. LSA block connectors ensure a reliable electrical contact appropriate for shielded twisted-pair wiring.

Suitable for

• Extending Cat.6 STP network cables
• Repairing damaged Cat.6 STP cable runs
• Temporary or permanent inline cable joins where plugs are not fitted

Key specifications

• Category: Cat.6 STP
• Connector type: Inline coupler with LSA block contacts
• Assembly: Tool-free
• Material / colour: Stainless steel
• Dimensions: 12.8 mm × 59.8 mm × 10.6 mm (W × D × H)
• Contents: 1 piece
• Brand: DELOCK, MPN: 86928, EAN: 4043619869282

How to use

Strip the outer sheath of each Cat.6 STP cable according to the LSA block preparation guidelines, expose and align the individual pairs, then insert the conductors into the LSA block contacts of the coupler. Close or secure the housing following the tool-free mechanism to establish the electrical and shield connection. Verify continuity and shielding after assembly before placing the cable into service.

Recommendations

Use this coupler only with Cat.6 STP cables and follow standard workmanship and shielding practices. After assembly, test the link for continuity and performance. Do not use if physical damage is present or if environmental conditions exceed the cable and connector specifications.
