ACT 0,5 metros cable de red de fibra óptica LSZH multimodo 50/125 OM3 dúplex con conectores LC

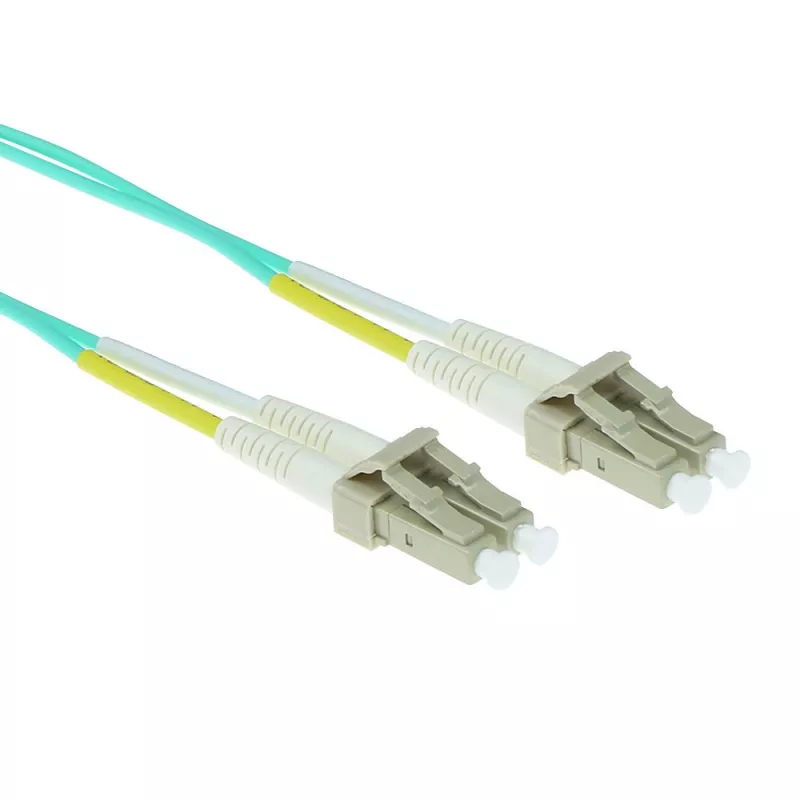

The ACT 0.5m LSZH Multimode 50/125 OM3 Duplex LC fiber patch cable is designed for short-run, high-speed optical connections. With a 50 µm core diameter and OM3 multimode specification, the cable supports high-bandwidth data transmission and full duplex communication via duplex LC connectors. The LSZH jacket reduces smoke and eliminates halogen emissions in case of fire, making the cable suitable for installation in confined or public spaces where safety standards are important.

Advantages

The cable combines OM3 multimode performance with compact duplex LC connectors to deliver reliable, low-loss connections for enterprise and data center environments. The LSZH outer jacket enhances safety by minimizing toxic fumes and dense smoke, while the 0.5 m length offers a tidy solution for short interconnects between switches, patch panels and servers. The 50/125 µm core/cladding geometry is compatible with typical multimode transceivers and supports high data rates over short distances.

Suitable for

• Interconnections in data centers and server rooms
• Patch panel to switch or transceiver connections
• Short-distance links within telecommunications racks
• Environments requiring low-smoke, zero-halogen cabling

Key specifications

• Fiber type: Multimode OM3
• Core/cladding diameter: 50/125 µm
• Connector type: Duplex LC to Duplex LC
• Length: 0.5 m
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Mode: Full duplex

How to use

Route the 0.5 m patch cable between the two LC-compatible ports you intend to connect, ensuring both ends are clean and free from dust or debris prior to insertion. Align the duplex LC connectors with the adapter or transceiver ports and insert until the latch clicks to secure the connection. For best optical performance, avoid sharp bends and maintain the minimum bend radius recommended for multimode fiber, and keep the cable strain-relieved at connector ends during installation.

Recommendations

Inspect connector endfaces with a fiber inspection tool and use a proper fiber cleaning kit when necessary. Use the short 0.5 m length for tidy patching inside racks or in situations where excess cable would create clutter; if longer runs are required, select an appropriately longer OM3 LSZH fiber patch cable. Follow site cabling standards and safety regulations when installing LSZH cables in public or enclosed spaces.
