ACT 3 metros LSZH Multimodo 50/125 OM3 Cable de conexión de fibra óptica dúplex con conectores LC y SC

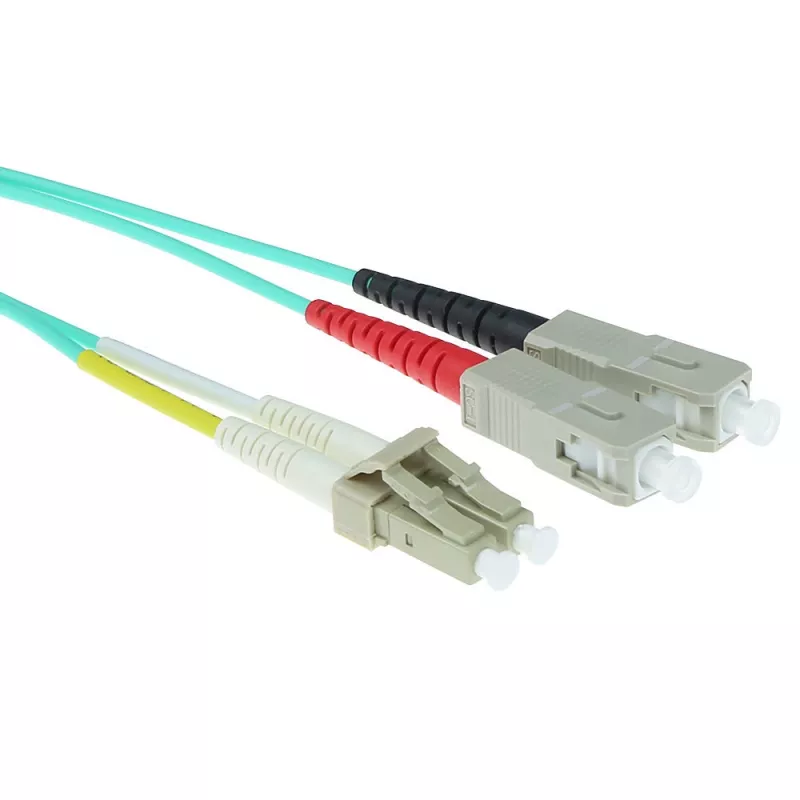

The ACT Fiber patch cable duplex LC to SC, 3 meters long, LSZH, Multimode 50/125 OM3 delivers reliable optical connectivity for structured cabling in data centers, server rooms and enterprise networks. This duplex cable pairs an LC connector on one end with an SC connector on the other, supporting multimode OM3 fiber for high-bandwidth short- to medium-range links. The LSZH jacket reduces toxic fumes and halogen emissions in the event of fire, supporting safer indoor installations.

Advantages

This duplex LC–SC multimode fiber cable supports OM3 performance characteristics suitable for 10 Gigabit Ethernet and other high-speed multimode applications over short to moderate distances. The 3 meter length provides flexibility for rack-to-rack and equipment-to-panel connections without excess slack. The LSZH outer jacket minimizes smoke and corrosive gas output during combustion, meeting safety requirements for enclosed spaces. Precision-terminated LC and SC connectors ensure low insertion loss and consistent optical performance.

Suitable for

• Patching between network equipment and fiber distribution panels
• Interconnects within data center racks and server cabinets
• Short- and medium-range multimode links for 10GbE and Fibre Channel
• Indoor installations where low smoke and zero halogen materials are required

Key specifications

• Fiber type: Multimode OM3
• Core/cladding diameter: 50/125 µm
• Configuration: Duplex (two fibers)
• Connectors: LC (one end) to SC (other end)
• Length: 3 meters
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Typical applications: 10 Gigabit Ethernet, Fibre Channel, short-range multimode networks

How to use

Route the duplex fiber cable between the required ports ensuring the LC and SC connectors are matched to the corresponding ports on patch panels or active equipment. Avoid excessive bending and maintain the manufacturer’s minimum bend radius to prevent increased attenuation. Secure the cable within cable management trays or panels to prevent strain on connector ends and to maintain organized cabling. Use dust caps on unused connectors until final installation to keep endfaces clean.

Recommendations

Inspect connector endfaces before installation and clean with approved fiber cleaning tools if necessary. Maintain proper bend radius, avoid tight loops, and protect the cable from crushing or sharp edges. For critical links, measure insertion loss and return loss after installation to verify performance meets required network standards.
