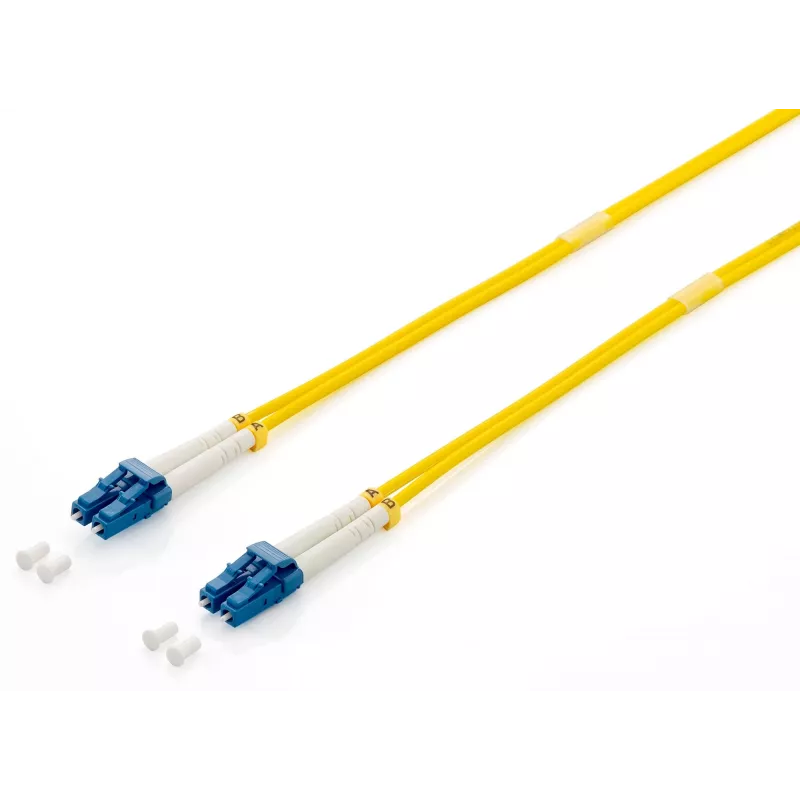

Equip cable de conexión de fibra óptica LC/LC, OS2, 3,0 m

The Equip LC/LC Fiber Optic Patch Cable OS2 3.0m is designed for high-speed data transmission in data centers and telecommunications networks. With a 9 µm core diameter and OS2 single-mode construction, the cable supports full duplex communication and aims to minimize insertion loss and return loss for reliable connections between devices.

Advantages

The Equip LC/LC OS2 patch cable uses quality materials and precise end-face geometry to reduce return loss and insertion loss. Available in a 3.0 m length with LC to LC connectors, it provides consistent performance for single-mode links and is suitable for rack-to-rack or equipment interconnects in professional network environments.

Suitable for

• Data center interconnects
• Telecommunications backbone and links
• Server-to-switch or switch-to-switch connections
• Fiber patch panels and optical distribution frames

Key specifications

• Brand: EQUIP
• Model / MPN: 254433
• EAN: 4015867175033
• Connector type: LC/LC
• Fiber type: OS2 (single-mode)
• Core diameter: 9 µm
• Length: 3.0 m
• Mode: Full duplex

How to use

Inspect connector end-faces for contamination before installation and clean with appropriate fiber cleaning tools if necessary. Align and insert the LC connectors into the corresponding LC ports until they click into place. Use cable management and strain relief to avoid sharp bends and mechanical stress; maintain bend radius according to standard single-mode fiber guidelines. For removal, depress the LC latch and pull straight out to avoid damaging the connector or port.

Recommendations

Store the fiber optic patch cable in a dry, dust-free environment and avoid tight coils. For best optical performance, keep connectors capped when not in use and follow standard cleaning and handling procedures for single-mode fiber.
