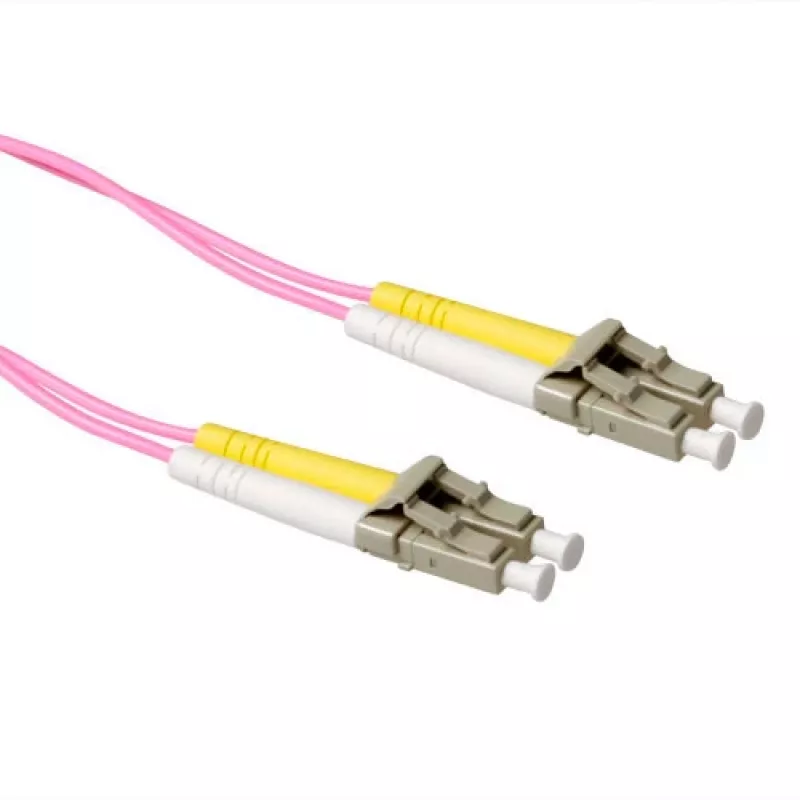

ACT Cable de parcheo de fibra óptica LSZH multimodo 50/125 OM4 dúplex con conectores macho LC de 1 metro

The ACT Fiber Patch Cable 1m LSZH Multimode 50/125 OM4 Duplex LC is a short-range fiber optic jumper designed for high-speed connections in data centers and enterprise networks. With multimode OM4 fiber and LC duplex connectors, this 1 meter cable supports reliable full-duplex transmission and is optimized for 10GbE and higher bandwidth applications. The LSZH (Low Smoke Zero Halogen) jacket reduces smoke and toxic gas release in the event of fire, improving safety in enclosed or populated environments.

Advantages

The cable combines OM4 multimode performance with compact LC duplex connectors to deliver consistent signal quality and low insertion loss across short distances. Its LSZH outer jacket provides increased safety in confined spaces while maintaining flexibility for routing and patching. The 50/125 core/cladding geometry ensures compatibility with standard multimode transceivers and patch panels used in modern network infrastructures.

Suitable for

• Rack-to-rack connections in data centers
• Server and switch uplinks supporting 10GbE and 40GbE (depending on transceiver)
• Patch panels and optical distribution frames
• Short-reach enterprise campus links and equipment interconnects

Key specifications

• Fiber type: Multimode OM4
• Core/cladding diameter: 50/125 µm
• Connector type: Duplex LC to Duplex LC
• Length: 1 meter
• Jacket: LSZH (Low Smoke Zero Halogen)
• Polish type: Typically UPC or PC (depending on factory termination)
• Application: Short-range, high-bandwidth multimode links

How to use

Install the fiber patch cable by gently inserting each LC connector into the corresponding duplex adapter or transceiver until it clicks into place. Avoid bending the cable beyond its minimum bend radius and secure routing to prevent strain on the connectors. For removal, depress the LC latch and pull straight out. Keep connector end-faces clean using appropriate fiber cleaning tools before connection to ensure optimal signal performance.

Recommendations

Use this 1m OM4 LSZH duplex LC cable for short, high-bandwidth links where safety and low smoke emission are required. Store and handle the cable in dry, dust-free conditions, and perform regular inspections of connector end-faces; replace the cable if the jacket or connectors show signs of damage.
