ACT Cable óptico activo HDMI 2.0 30 m – Premium High Speed 4K, conector HDMI-A macho a conector HDMI-A macho, 18 Gbit/s, LSZH

The ACT AOC 4K HDMI v2.0 cable has been engineered with great care for use in the most sensitive environments where exceptional performance and reliability are must-haves. Made of copper and fiber, this AOC cable enables seamless connection over distances up to 100 meters without data loss. The Active Optical Cable is suited for the most sensitive applications thanks to its complete shielding, low RFI/EMI, and LSZH cable jacket. With a bandwidth of 18Gbps 4:4:4, it effortlessly handles 4K resolutions (3840x2160) at 60Hz. This premium cable also supports CEC, HDR, HDCP 2.2, EDID, HEC, ARC, multi-channel audio, Dolby True HD, and DTS-HD Master Audio - features that guarantee optimal performance in professional settings.

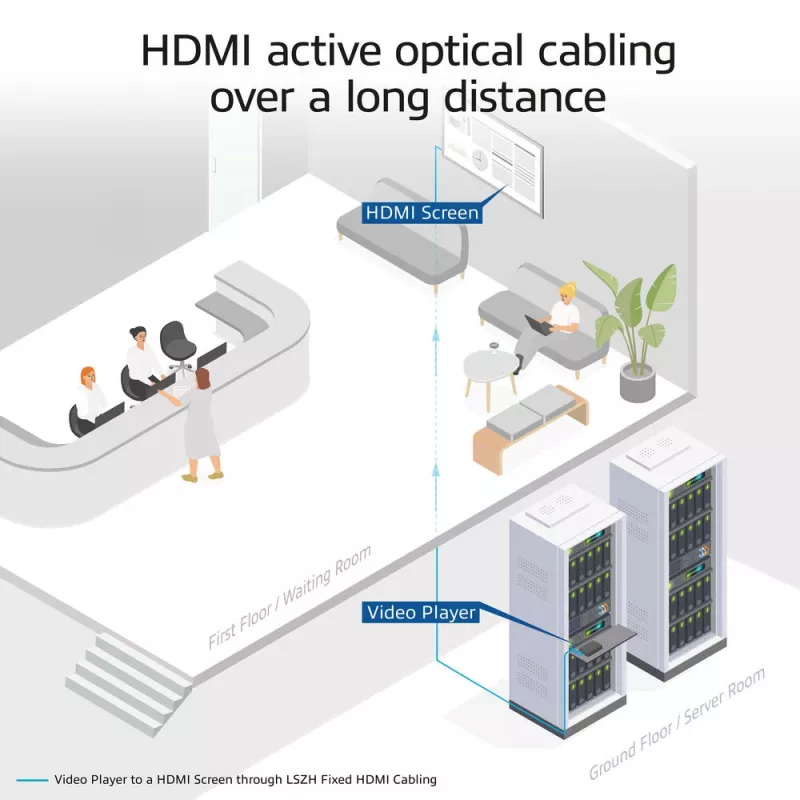

AOC: copper and fiber for distances up to 100m and the best video and audio quality
The AOC (Active Optical Cable) cable is carefully assembled and made of copper and fiber for transferring 4K @ 60Hz over long distances up to 100m without data loss. The cable has a bandwidth of 18Gbps 4:4:4 for high resolution video content.

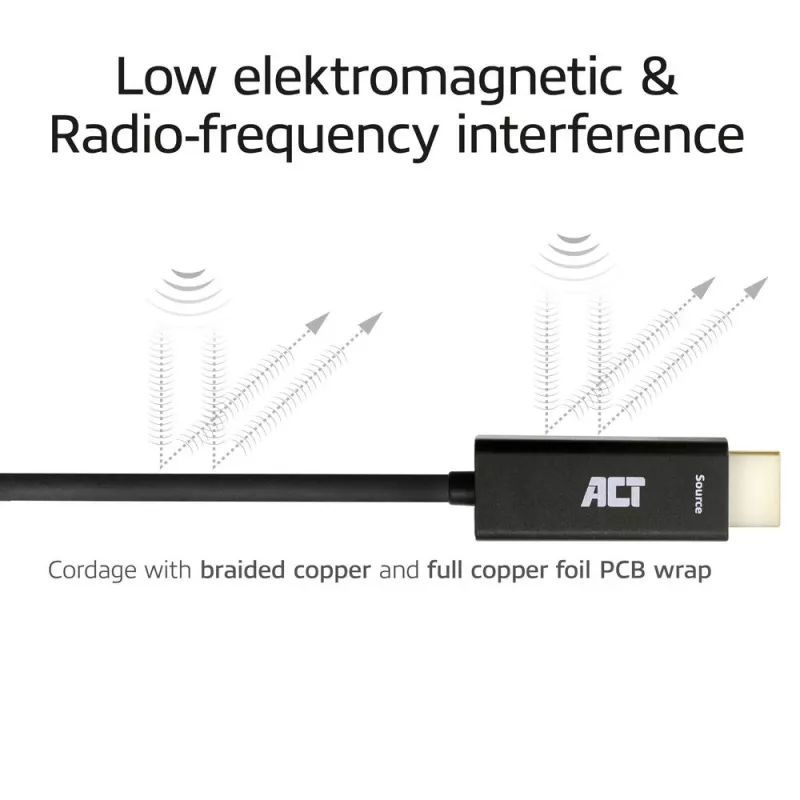

Fully shielded: suitable for sensitive applications
The Active Optical Cable has a Kevlar protected fiber and aluminium foiled shielding. Additionally, the chipset in the connector is encased in copper shielding. This means that the cable is fully shielded, from the source connector to the display connector and is suitable for sensitive applications due to low RFI/EMI. Furthermore, the cable functions without additional power.

Resolution of 4K @ 60Hz
This 4K HDMI cable supports a resolution of 3840x2160 @ 60Hz. Furthermore, the cable supports High Dynamic Range (HDR) video for expansive contrast ratio and color accuracy, CEC, HDCP 2.2, EDID, HEC, ARC, Multi-channel audio, Dolby True HD, and DTS-HD Master Audio.

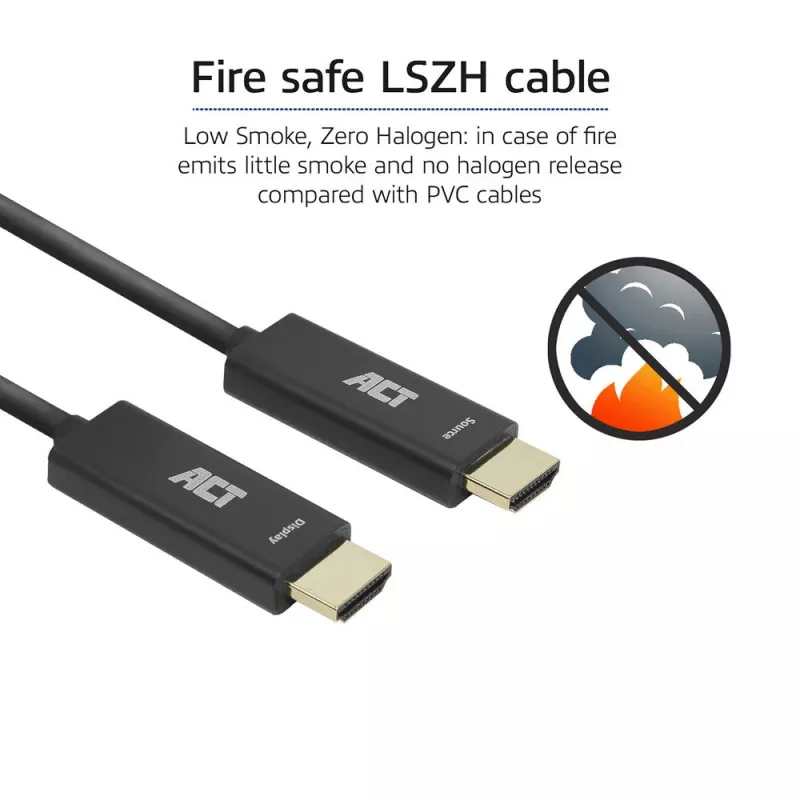

LSZH: reduces the risk of high concentrations of toxic gases
The cable has a LSZH (Low Smoke Zero Halogen) cable jacket that reduces the risk of high concentrations of toxic gases in case the cable is exposed to open flames or in the event of a fire.

Cable marking for easy identification
It is important that the cable is connected correctly. That is why we marked the connectors of the ACT AOC HDMI v2.0 cable to ensure easy identification of the source and display connector.

User scenarios
Medical applications: High-resolution imaging is critical in radiology for detailed diagnosis. The low RFI/EMI minimizes interference with sensitive medical devices.
Nautical applications: The cable facilitates the connection between equipment located in different parts of the vessel without signal loss. The Kevlar protected fiber offers durability and reliability in harsh marine environments.
Data center applications: The LSZH jacket ensures safety by reducing toxic gas emissions in case of a fire.
Educational and corporate applications: Provides clear and detailed visuals for large audiences and supports high-definition displays for video conferencing, presentations, and collaborative work.

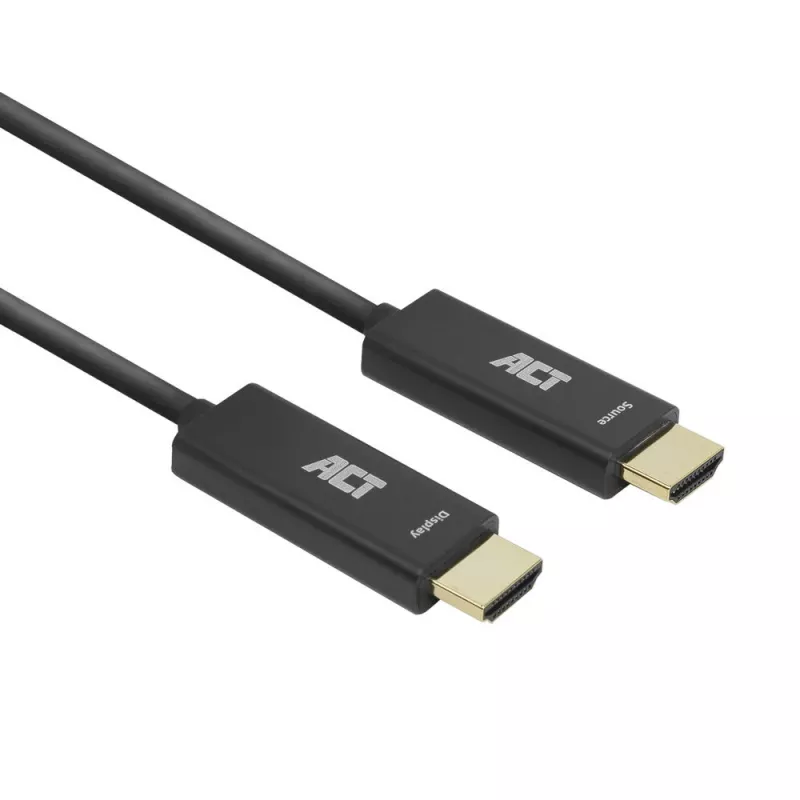

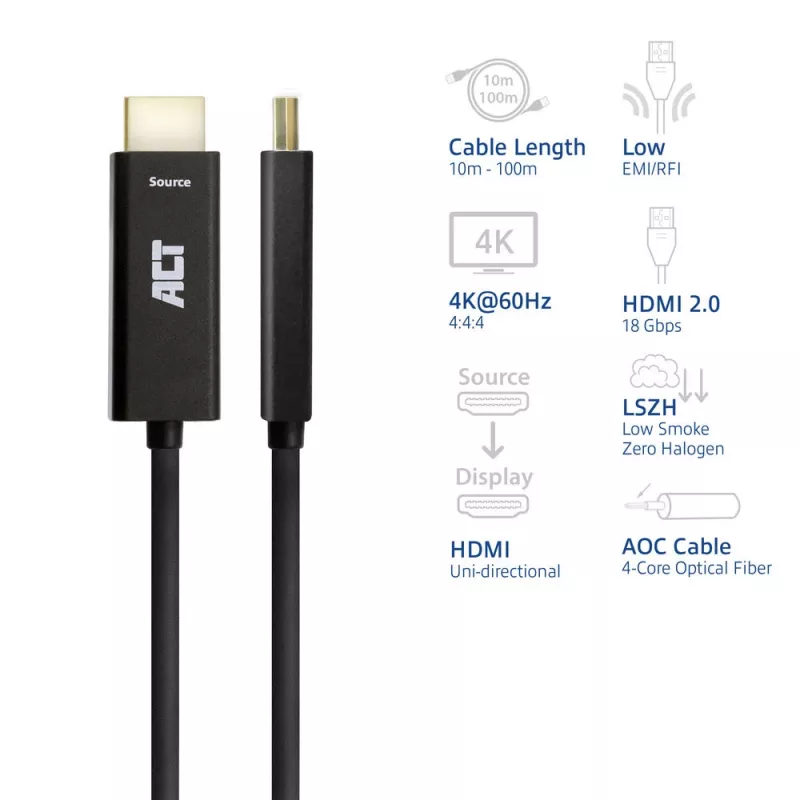

ACT 30 meters HDMI Premium High Speed 4K Active Optical Cable v2.0 LSZH HDMI-A male - HDMI-A male. Cable length: 30 m, Connector 1: HDMI Type A (Standard), Connector 1 gender: Male, Connector 2: HDMI Type A (Standard), Connector 2 gender: Male, HDMI version: 2.0, Data transfer rate: 18 Gbit/s, Audio Return Channel (ARC), Product colour: Black

How to use

Connect one HDMI Type A male connector to the source device (for example a Blu-ray player, media streamer, AV receiver or graphics output) and the other HDMI Type A male connector to the display (TV, projector or monitor). Ensure the connectors are correctly oriented using the cable markings for source and display. No external power supply is required; the cable draws necessary power from the HDMI source. After connection, configure the source and display to the desired resolution and HDR/audio settings as supported by both devices.

Recommendations

For best results, route the cable away from heavy electrical noise sources, secure it to avoid sharp bends, and verify device settings after connection to enable 4K@60Hz and HDR where supported. Use the marked ends to avoid reversed connections between source and display.
