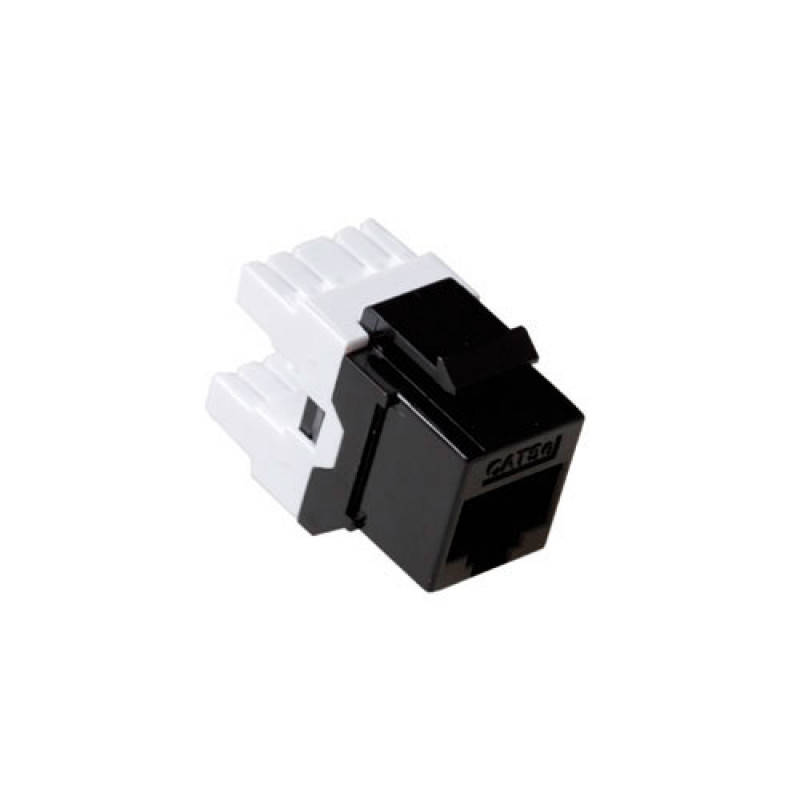

ACT CAT5e UTP Keystone Jack RJ45 Punch Down negro TD5012

The ACT TD5012 is a CAT5e unshielded keystone jack that keeps installation simple: punch-down IDC terminals on the back accept 22–26 AWG solid or stranded conductors, while the front RJ45 port provides a secure connection for standard patch cables. Its black ABS housing snaps into any standard keystone wall plate or patch panel, making it a direct fit for structured cabling jobs where a low-profile, reliable jack is required.

Highlights

• CAT5e performance for Gigabit Ethernet up to 100 MHz
• Unshielded (UTP) design for typical indoor LAN runs
• Tool-free punch-down termination with colour-coded TIA/EIA 568A/B wiring
• Gold-plated contacts (50µm) resist corrosion and maintain signal integrity
• Durable ABS plastic housing rated for over 750 mating cycles

In daily use

Terminate horizontal cables at the wall outlet or patch panel, then plug in a patch lead to connect devices. The IDC slots are clearly marked for both 568A and 568B schemes, and the jack fits flush into standard keystone openings. No special tools are needed beyond a standard punch-down tool.

Full specifications

• Product type: Keystone jack, RJ45 female to IDC
• Network standard: CAT5e (Category 5e)
• Shielding: UTP (unshielded twisted pair)
• Termination: 110 punch-down (IDC)
• Wiring standard: TIA/EIA 568A/B
• Positions/conductors: 8P8C
• Wire gauge compatibility: 22–26 AWG solid or stranded
• Contact plating: Gold, 50µm
• Housing material: ABS plastic
• Durability: >750 mating cycles
• Insulation resistance: >500 MΩ
• Dielectric withstanding voltage: 1000V AC RMS @ 60Hz for 1 minute
• Current rating: 1.5 A
• Operating temperature: -10°C to 60°C
• Colour: Black

Final note

For a dependable, no-frills CAT5e connection point, the TD5012 delivers the essential performance without unnecessary extras.
