ACT DC1901 Cable de red CAT6A U/UTP LSZH Slimline de 1 m, RJ45 acodado 90° izquierda a recto, negro

In tight spaces behind desks or inside server racks, a standard patch cable can put damaging strain on the connector and block adjacent ports. The ACT DC1901 solves this with a 90° angled left connector on one end, allowing the cable to exit flush against the wall or panel while the other end remains straight for easy connection to a switch or workstation.

Who is it for

Network administrators, IT technicians, and home users who need a reliable high-speed link in cramped installations, such as behind wall-mounted TVs, inside floor boxes, or between densely packed patch panels.

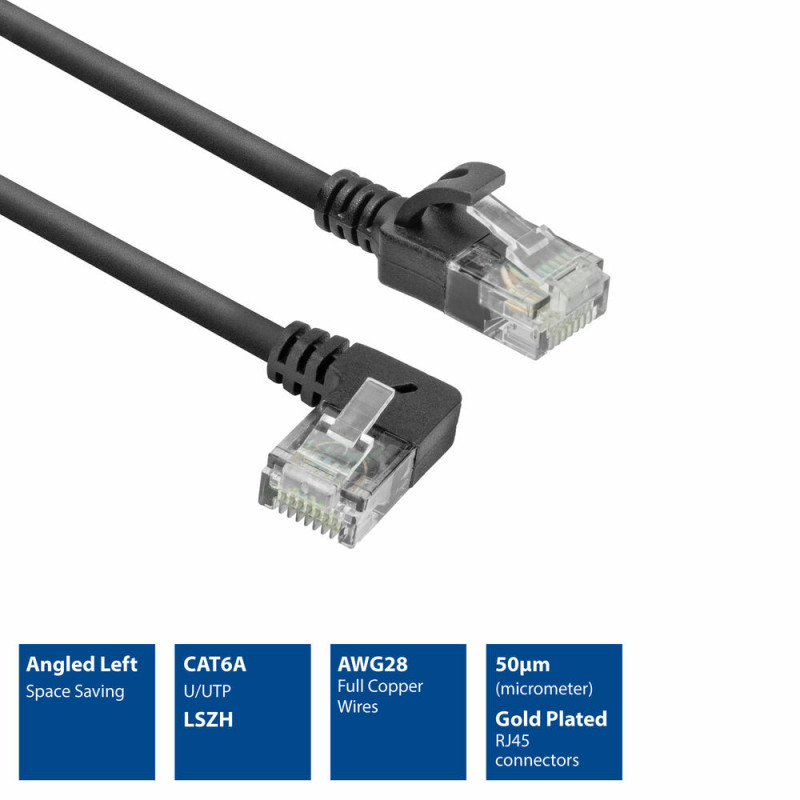

Main features

• CAT6A performance supports 10 Gigabit Ethernet up to 500 MHz bandwidth
• U/UTP unshielded construction with pure copper stranded conductors, 28 AWG
• Low Smoke Zero Halogen (LSZH) jacket for improved fire safety in enclosed spaces
• Slimline design with approximately 3.8 mm outer diameter for better airflow and easier cable management

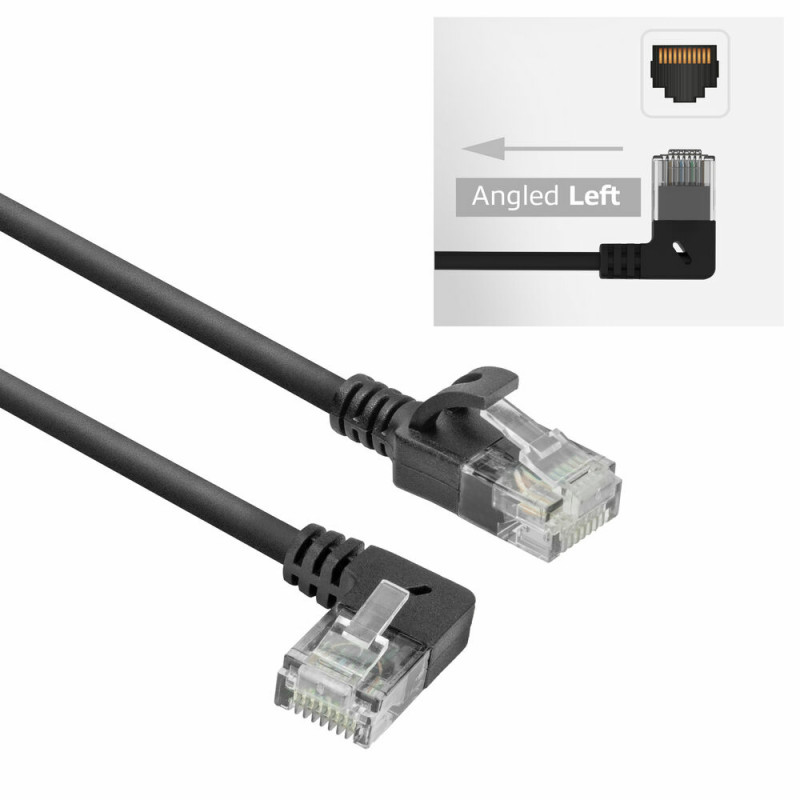

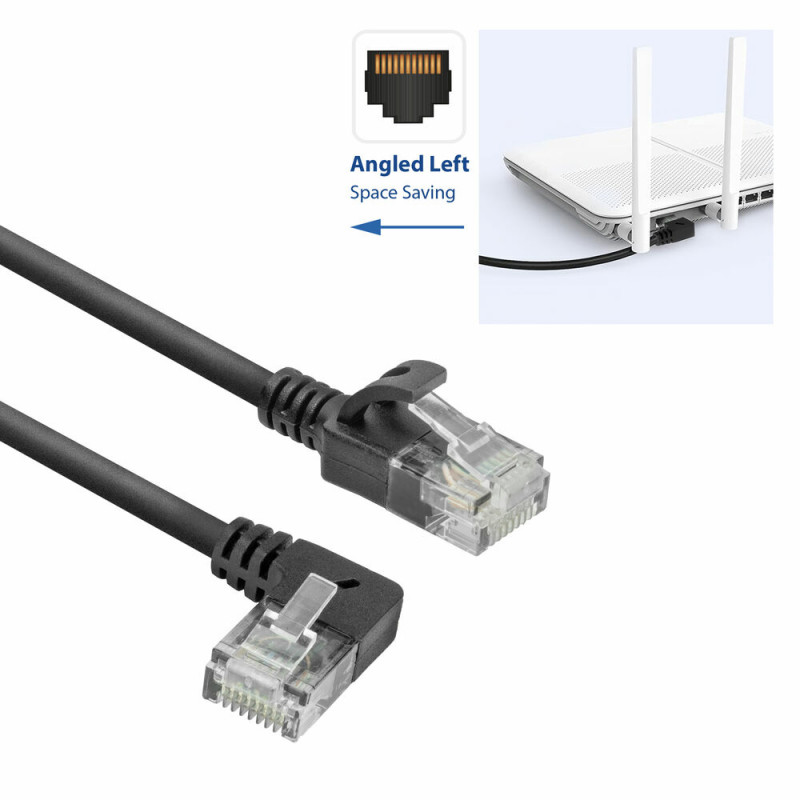

• One RJ45 connector angled 90° to the left, the other straight
• 1 meter length, black colour

Specifications

• Cable type: CAT6A patch cable
• Shielding: U/UTP
• Length: 1 m
• Colour: Black
• Connector 1: RJ45 male, 90° angled left
• Connector 2: RJ45 male, straight
• Jacket material: LSZH
• Data transfer rate: 10 Gbps
• Bandwidth: 500 MHz
• Conductor gauge: 28 AWG
• Conductor material: Pure copper
• Cable construction: Stranded
• Wiring standard: TIA/EIA-568-B.2 (T568B)
• Outer diameter: 3.8 mm
• PoE support: Yes (PoE, PoE+, UPoE)

Tips

When routing this cable, keep the angled connector on the side where space is limited. For permanent installations, use cable ties or clips to secure the slim cable without over-tightening, which can damage the conductors.
