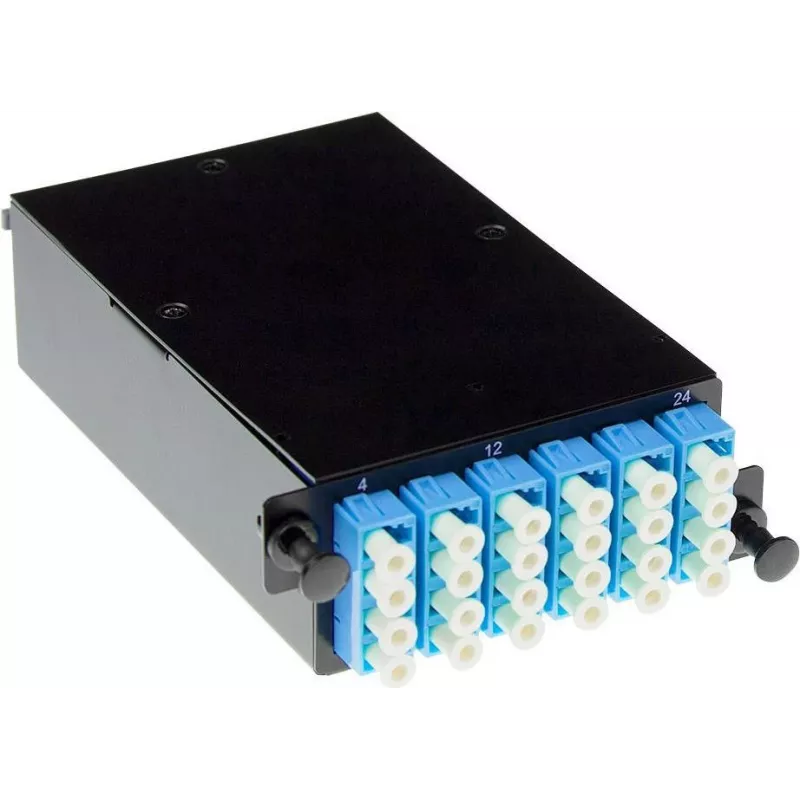

ACT FA2053 casete multimodo MTP/MPO a LC de 12 fibras, polaridad tipo B, carcasa de metal negra, montaje en rack 1U

Fiber optic cassette engineered for high-density 12-fiber MTP/MPO to LC duplex breakout in 1U rack-mount environments. The FA2053 delivers a low-loss transition from a single MTP/MPO trunk to six LC duplex ports, simplifying cable management in data centers and enterprise networks.

Advantages

Tool-less snap-in mounting into compatible patch panels accelerates deployment and reduces installation time. The metal housing provides robust protection and durability, while the Type B polarity ensures compatibility with standard structured cabling systems. OM3/OM4 multimode support enables 10G/40G/100G transmission over short distances.

Suitable for

• Data center fiber distribution and backbone cabling
• Storage area networks (SANs) requiring high port density
• Enterprise LAN backbone and horizontal cabling
• Telecommunications rooms and equipment cross-connects

Key specifications

• Input: 1x MTP/MPO female connector (12 fibers)
• Output: 6x LC duplex ports (12 LC connectors total)
• Fiber type: Multimode OM3/OM4, 50/125 µm
• Polarity: Type B (Method B)
• Insertion loss: < 0.35 dB typical
• Return loss: > 20 dB
• Housing: Black metal (steel/aluminum), 1U rack compatible
• Operating temperature: -10°C to 60°C
• Compliance: RoHS, TIA/EIA-568-C.3, IEC 61754-7, IEC 61754-20

Recommendations

For optimal performance, pair with ACT MTP/MPO trunk cables and LC patch cords of the same fiber type. Ensure proper polarity alignment across the entire channel. Use in conjunction with ACT 1U fiber optic patch panels for a complete high-density solution.
