AXING EoC filtro paso bajo TZU 198-64 5-65 MHz F-hembra a F-macho

The AXING EoC Low-Pass Filter TZU 198-64 is a high-performance filter designed for Ethernet over Coax (EoC) systems. It ensures reliable signal transmission by passing frequencies from 5 to 65 MHz while effectively attenuating higher frequencies from 85 to 2400 MHz. This filter is ideal for use in broadband and CATV networks where EoC technology is deployed.

Advantages

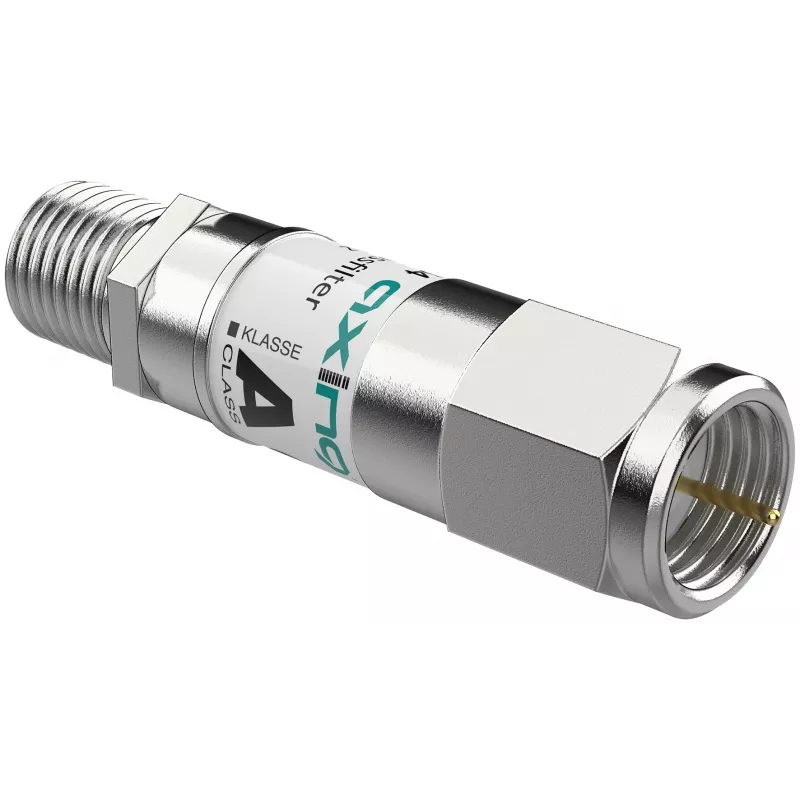

Optimized for EoC applications, this filter provides excellent stopband attenuation to prevent interference from downstream signals. Its compact design with F-Female and F-Male connectors allows for easy inline installation. The nickel-plated brass housing ensures durability and superior shielding effectiveness of >100 dB (Class A).

Suitable for

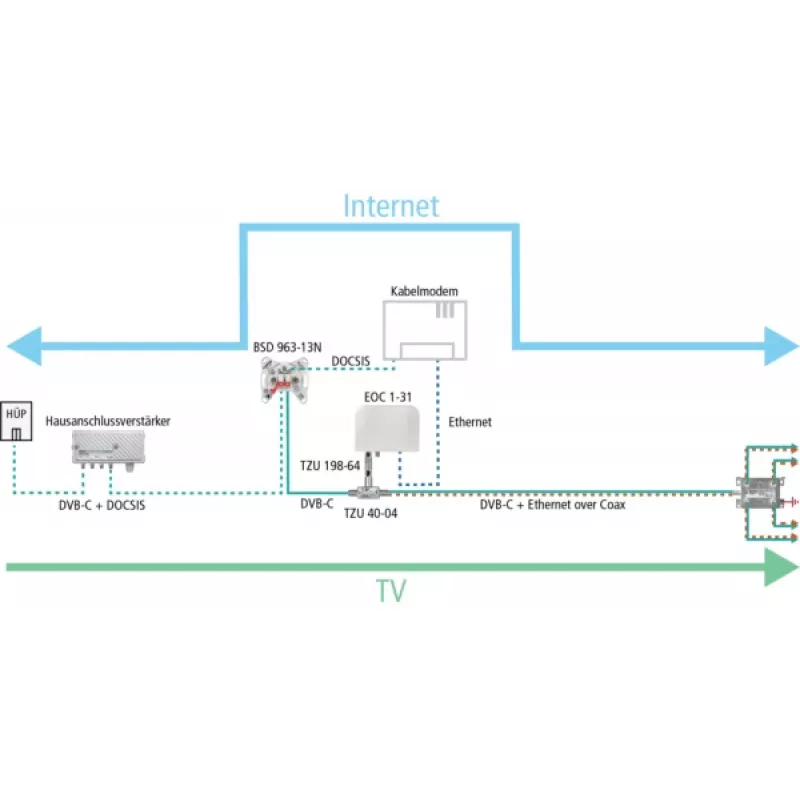

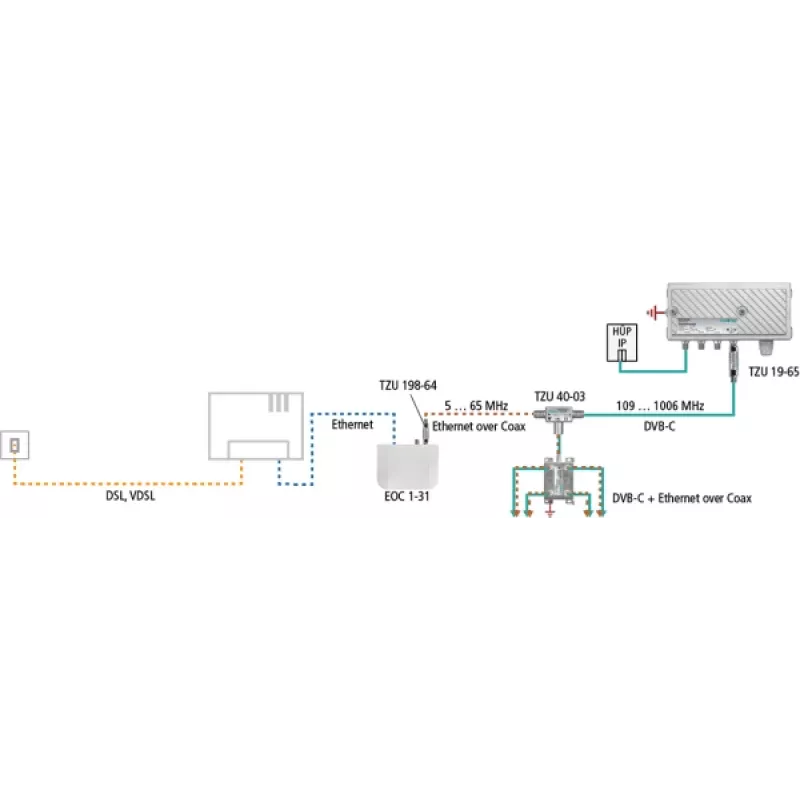

• Ethernet over Coax (EoC) systems
• Broadband and CATV networks
• Signal conditioning in RF distribution

Key specifications

• Product Type: EoC Low-Pass Filter
• Frequency Range (Passband): 5 - 65 MHz
• Frequency Range (Stopband): 85 - 2400 MHz
• Insertion Loss (Passband): < 1.0 dB
• Stopband Attenuation: > 40 dB at 85 MHz, > 50 dB at 100 MHz, > 60 dB at 200 MHz
• Return Loss (Passband): > 18 dB
• Impedance: 75 Ohm
• Connector 1: F-Female
• Connector 2: F-Male
• DC Pass: Yes (max 24 V, 1 A)
• Shielding Effectiveness: > 100 dB (Class A)
• Housing Material: Nickel-plated Brass
• Operating Temperature: -20°C to +50°C
• Number of Ports: 2

Recommendations

For optimal performance, use this filter in conjunction with compatible EoC modems and ensure proper impedance matching (75 Ohm). Verify that the DC pass feature is suitable for your powering requirements.
