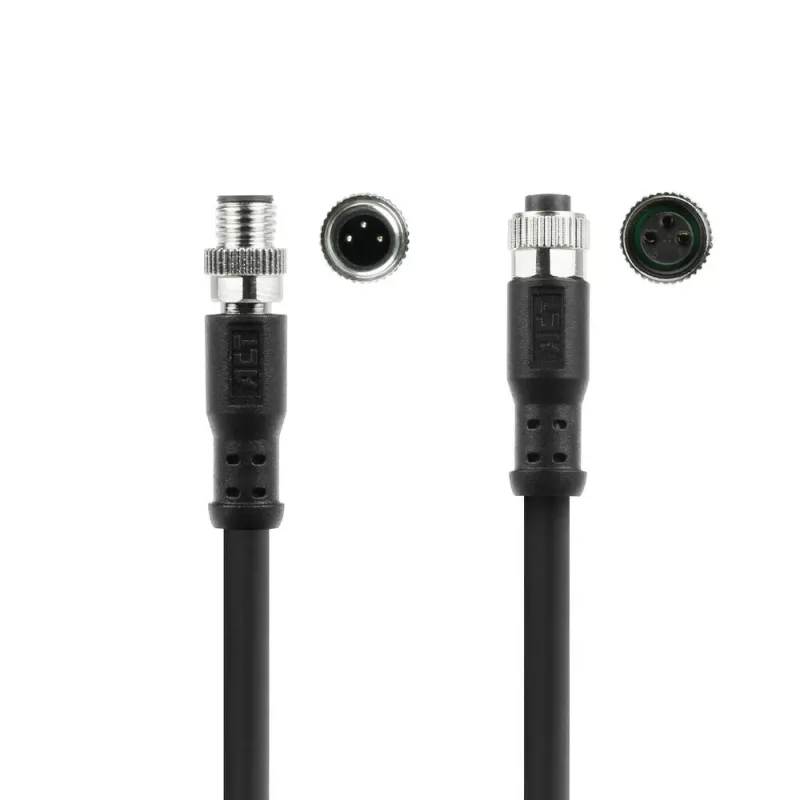

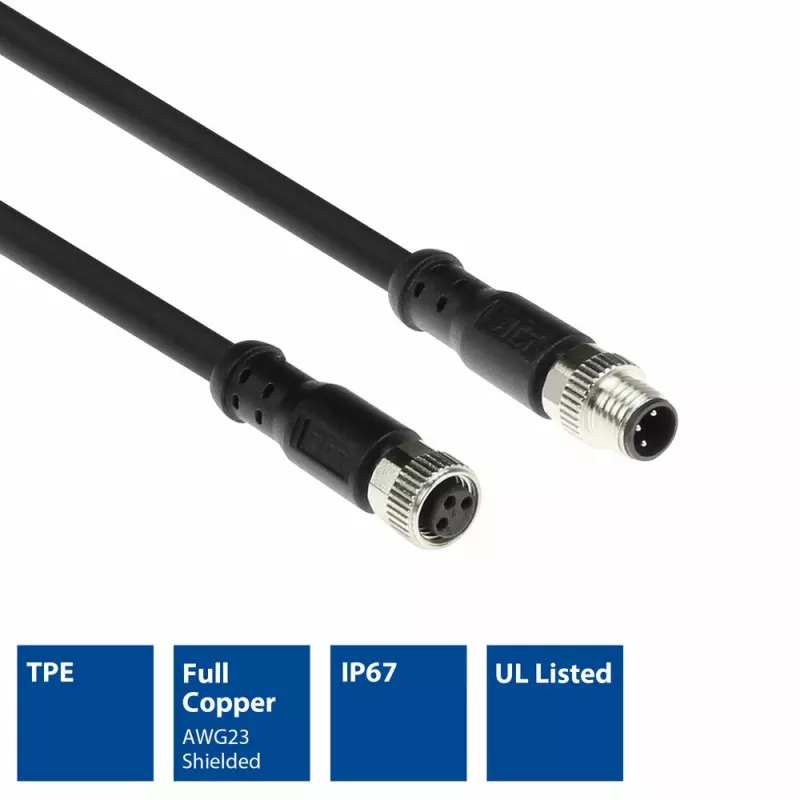

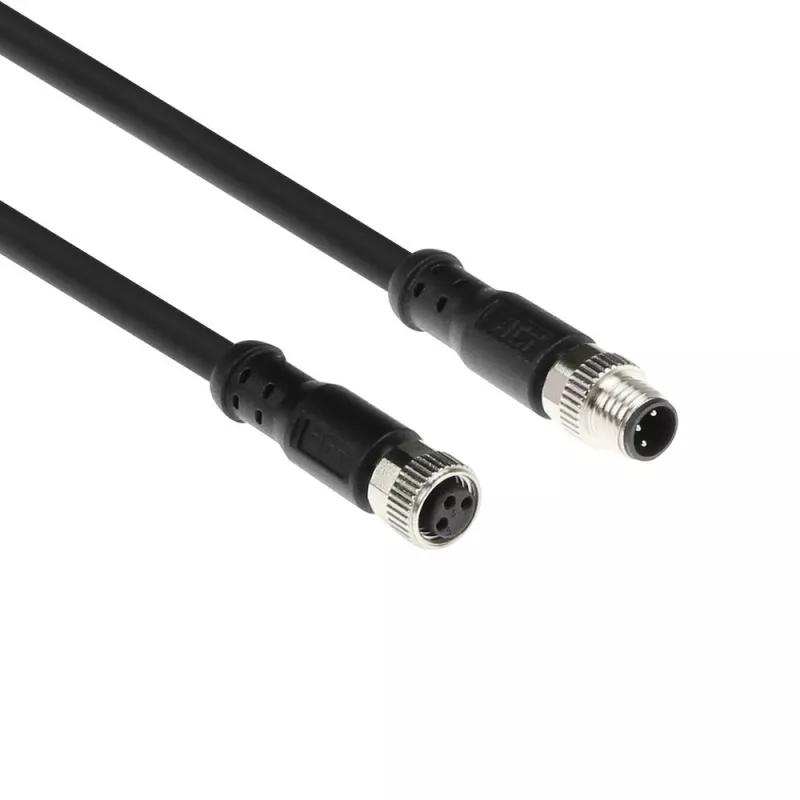

ACT Industrial cable de sensor de 3,00 metros M8A 3 polos conector macho a conector hembra M8A 3 polos, cable TPE Ultraflex Xtreme, apantallado

The ACT Industrial sensor cables (actor cables) are provided with a TPE (Thermo Plastic Elastomer) sheath and are therefore highly resistant to mechanical loads such as movements in a chain. The connectors are overmoulded TPE and degree of protection is IP67.

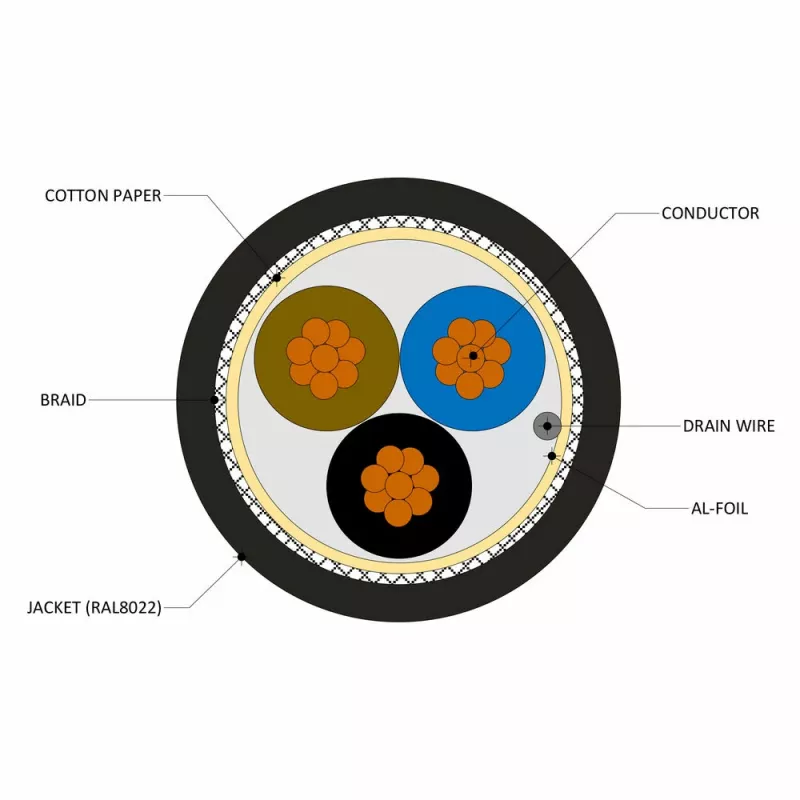

Ultraflex Xtreme cable, each individual core consists of 52 strands of copper that together form a diameter of AWG23. This makes the cable more flexible than, for example, a standard AWG24/7 patch cable.

Stranded conductors are build up of uninsulated thin strands of wire twisted together.
How greater the number of strands in a stranded conductor, the greater the flexibility of the wire.

ACT Industrial 3.00 meters Sensor cable M8A 3-pin male to M8A 3-pin female, Ultraflex Xtreme TPE cable, shielded. Cable length: 3 m, Connector 1: M8, Connector 2: M8
