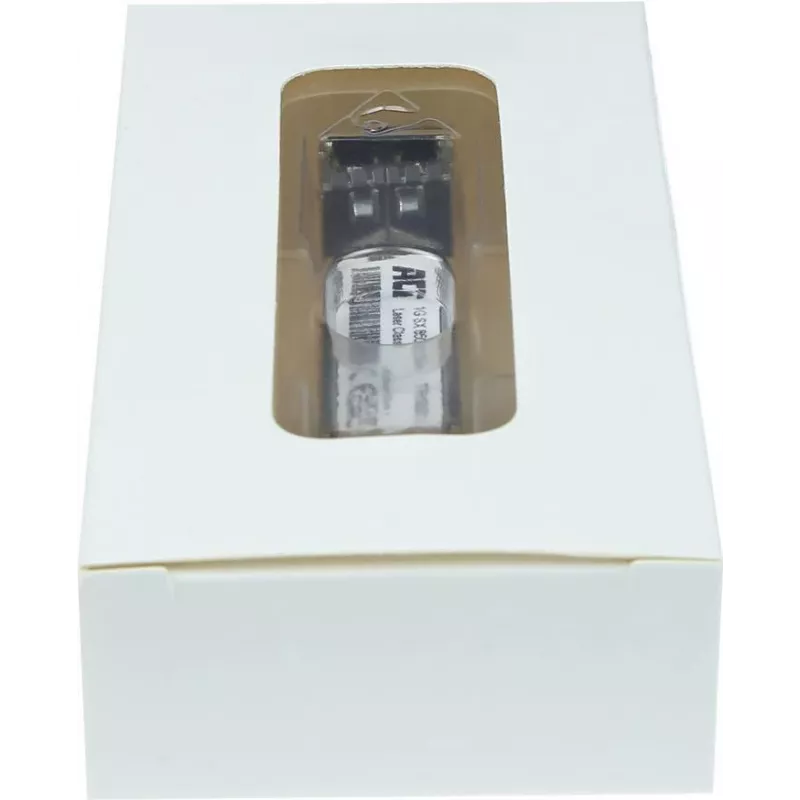

ACT TR0011 1,25G SFP 850nm Multimode LC Módulo transceptor

Delivering 1.25 Gbps over multimode fiber with an 850 nm VCSEL, this SFP module is built for high-speed Gigabit Ethernet links up to 550 m. Its LC duplex interface and MSA compliance ensure seamless integration into switches, routers, and media converters.

Overview

The ACT TR0011 is a hot-swappable SFP transceiver engineered for 1000BASE-SX networks. It operates at 850 nm over multimode fiber, supporting distances up to 550 m on OM3/OM4 cable. With Digital Diagnostic Monitoring (DDM), you can monitor real-time parameters like optical power, temperature, and voltage, simplifying network management.

What stands out

• High-speed 1.25 Gbps data rate for Gigabit Ethernet and Fibre Channel
• 850 nm VCSEL laser optimized for multimode fiber
• LC duplex connector for reliable, high-density connections
• Hot-swappable design for minimal downtime during installation or replacement
• DDM/DOM support for proactive network monitoring
• Low power consumption (<1 W) for energy-efficient operation
• Wide operating temperature range (0°C to 70°C) for versatile deployment

Technical details

• Transceiver type: SFP (Small Form-Factor Pluggable)
• Data rate: 1.25 Gbps
• Wavelength: 850 nm
• Fiber type: Multimode (MMF)
• Connector: LC Duplex
• Max distance: 550 m (OM3/OM4)
• Standard: IEEE 802.3z 1000BASE-SX
• DDM/DOM: Yes
• Laser: VCSEL
• Power consumption: <1 W
• Operating temperature: 0°C to 70°C
• Power supply: 3.3V
• Duplex mode: Full Duplex
• Compliance: MSA

Our verdict

The ACT TR0011 combines reliability, performance, and diagnostics in a compact SFP form factor. It's an excellent choice for enterprise and data center networks requiring robust multimode connectivity.
