Adaptador de alimentación interno InLine 180° ATX conector macho conector hembra negro 26636E

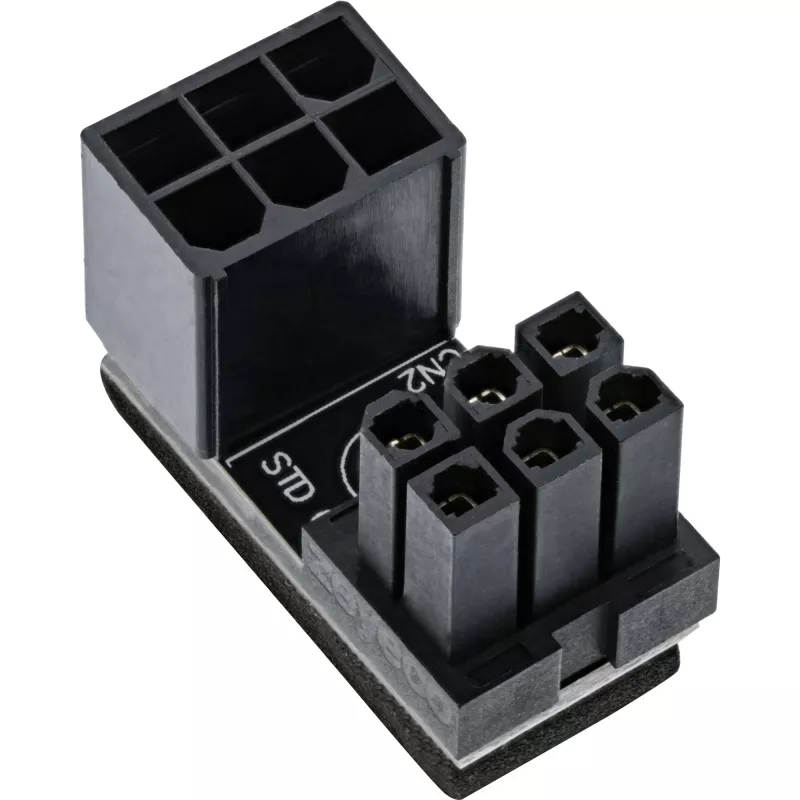

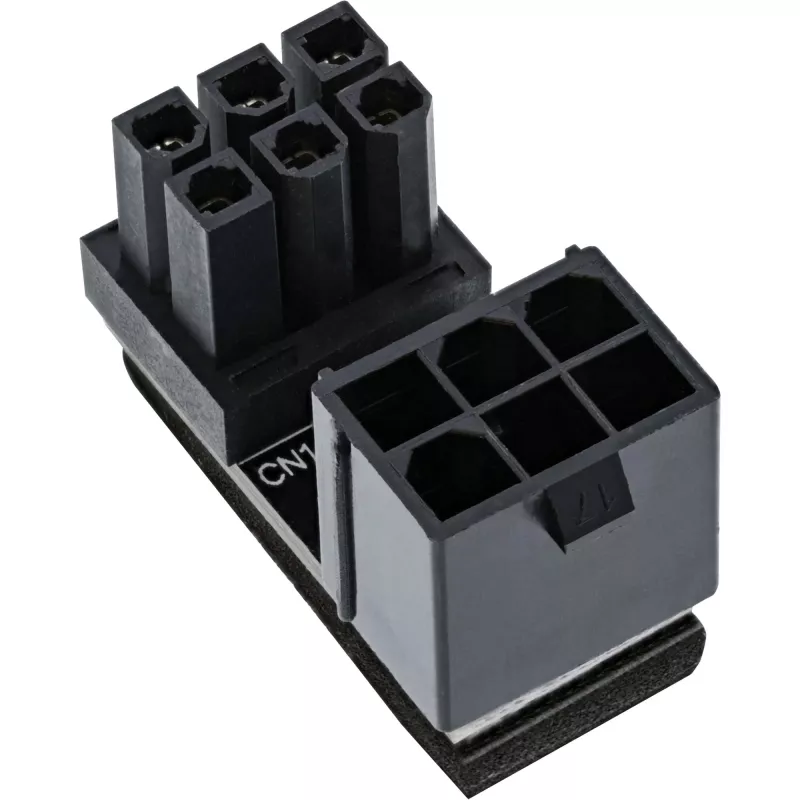

The InLine Power adapter internal 180° ATX 6-pin male–female (model 26636E) is an internal cable adapter that changes the orientation of a standard 6‑pin PCIe/ATX power connection by 180°. It is intended for routing and organising the internal power cable between a power supply and a graphics card or motherboard connector where a low-profile or reversed plug orientation is needed. The adapter is black and matches standard ATX 6‑pin pinouts; check connector coding and orientation before use to confirm compatibility.

Advantages

The adapter provides a compact, space-saving solution for tight PC cases by reversing the plug orientation without modifying cables. It helps achieve neater cable routing behind motherboards or around GPUs and retains the standard 6‑pin electrical connection so no additional wiring is required. The internal construction avoids external cable clutter and matches ATX/PCIe form factors.

Suitable for

• Rerouting internal 6‑pin PCIe/ATX power cables in small form-factor or compact PC cases
• Connecting a power supply to a graphics card where plug orientation needs to be reversed
• Improving cable management behind the motherboard tray or near tight GPU power connectors

Key specifications

• Model: InLine 26636E
• Connector: 6‑pin ATX/PCIe male to female
• Orientation: 180° internal adapter
• Colour: Black
• Intended use: internal PC power cable routing

How to use

Power off the system and disconnect the power supply from mains. Identify the 6‑pin PCIe/ATX cable that requires orientation change, then unplug the original connector from the graphics card or motherboard. Insert the male end of the adapter into the power supply cable or original plug and connect the female end to the device’s 6‑pin socket, ensuring correct alignment with the keyed coding. Reconnect the power supply to mains and power on the system after verifying secure connections.

Recommendations

Confirm the exact coding and pin orientation of your 6‑pin connectors before installation. Use the adapter only inside the PC case and avoid forcing connectors; improper alignment can cause poor contact or damage. If unsure about compatibility, consult your PSU or motherboard/GPU documentation.
