Transceptor ALLNET SFP+ 10G LR, LC dúplex, 1310nm, 10km, compatible con Intel E10GSFPLR

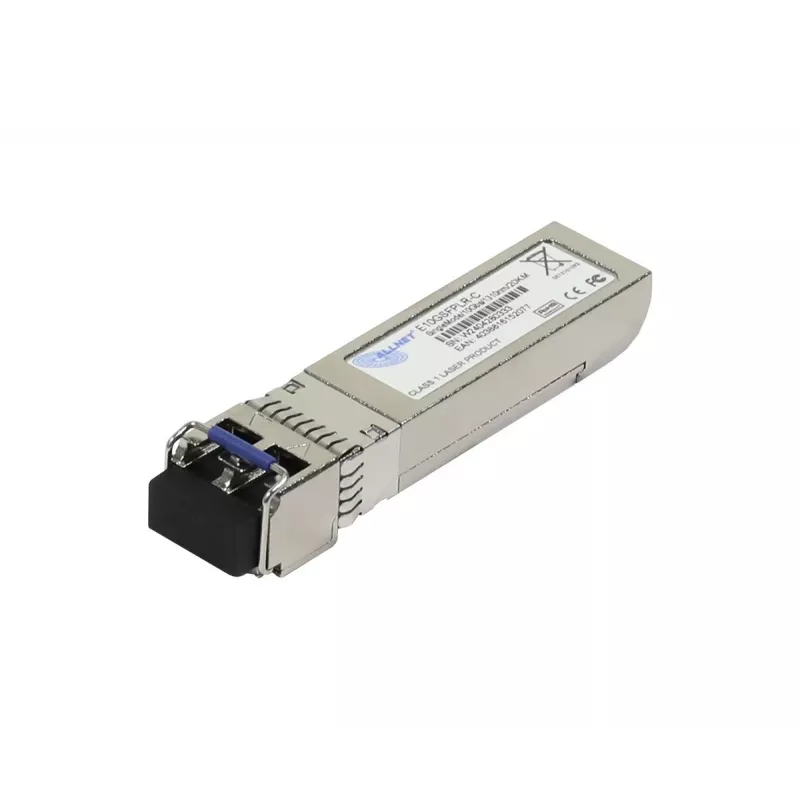

Extend your 10 Gigabit Ethernet network over single-mode fibre without replacing existing Intel-compatible infrastructure. The ALLNET E10GSFPLR-C is a hot-swappable SFP+ transceiver that delivers 10 Gbps over distances up to 10 km, using a 1310 nm DFB laser and LC duplex connector. It is engineered for seamless compatibility with Intel E10GSFPLR optics, making it a direct drop-in replacement for enterprise switches, routers, and network interface cards.

Who is it for

Network administrators and system integrators who need reliable, cost-effective 10G LR connectivity for long-haul links in campus, enterprise, or data centre environments. Ideal for those who already have Intel-compatible equipment and want to avoid vendor lock-in without sacrificing performance.

Main features

• 10 Gbps data rate for high-bandwidth applications
• 1310 nm wavelength with DFB laser for 10 km reach over single-mode fibre
• LC duplex connector for standard fibre patching
• Hot-swappable SFP+ form factor for easy installation and maintenance
• Digital diagnostics monitoring (DDM/DOM) for real-time parameter tracking
• Low power consumption (< 1 W) and wide operating temperature range (0°C to 70°C)

Specifications

• Form Factor: SFP+
• Data Rate: 10 Gbps
• Wavelength: 1310 nm
• Max Distance: 10 km
• Fiber Type: Single-Mode Fiber (SMF)
• Connector Type: LC Duplex
• DDM/DOM Support: Yes
• Compatibility: Intel E10GSFPLR
• Power Consumption: < 1 W
• Operating Temperature: 0°C to 70°C
• Transmitter Type: DFB Laser
• Receiver Type: PIN Photo Detector
• Compliance: MSA Compliant, RoHS, CE, FCC
• Hot-Swappable: Yes
• Voltage: 3.3 V

Tips

Ensure your fibre infrastructure is single-mode (OS2) to achieve the full 10 km distance. For shorter links, this transceiver also works with multi-mode fibre using mode-conditioning patch cords, but performance may vary. Always clean fibre connectors before insertion to prevent signal loss.
