Adaptador de aparatos CB Rittal SV 9342.510, poliamida, 90×215 mm, gris (RAL 7035), para grosor de barra colectora

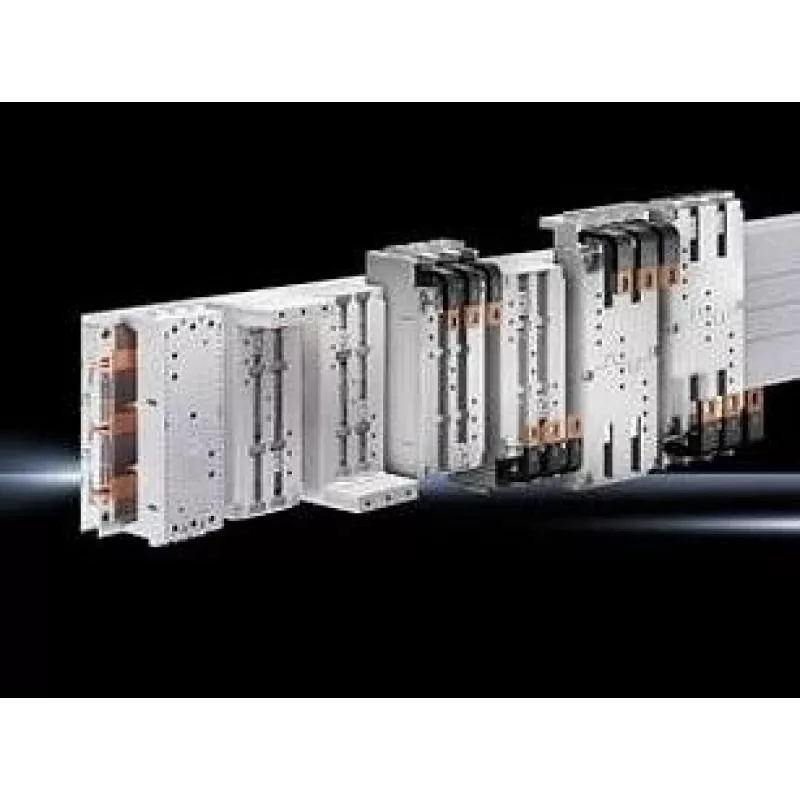

Rittal CB device adapter SV 9342.510 is a polyamide mounting adapter designed for installation in electrical enclosures and distribution panels. With outer dimensions of 90 × 215 mm and a neutral grey finish (RAL 7035), the adapter provides a standardized mechanical interface for connecting circuit-breaker and control devices to busbar systems. The compact, injection-molded construction ensures repeatable positioning and compatibility with common busbar applications where a reliable adapter is required.

Advantages

The polyamide construction delivers chemical and thermal resistance appropriate for indoor electrical cabinet environments while remaining lightweight. The 90 × 215 mm footprint offers a compact mounting area that aligns with typical panel layouts. The grey RAL 7035 color provides visual consistency with standard enclosures and facilitates simple identification during assembly. The molded design supports stable mechanical engagement with busbar systems and simplifies fitting of switching and protection devices.

Suitable for

Key specifications

How to use

Install the adapter in the enclosure at the planned mounting location and secure it according to the cabinet or panel manufacturer's guidance. Align the adapter with the busbar and engage the device adapter so that the mechanical interface matches the busbar thickness and positioning. Fasten the connected circuit-breaker or control device to the adapter using appropriate screws or clamps, ensuring all electrical and mechanical connections meet local installation standards and safety regulations. Verify alignment and secure fit before energizing the circuit.

Recommendations

Use the adapter in dry, indoor electrical cabinet environments and verify compatibility with the specific busbar thickness and device mounting dimensions. Follow applicable electrical codes and Rittal enclosure guidelines for secure mounting and safe operation.
