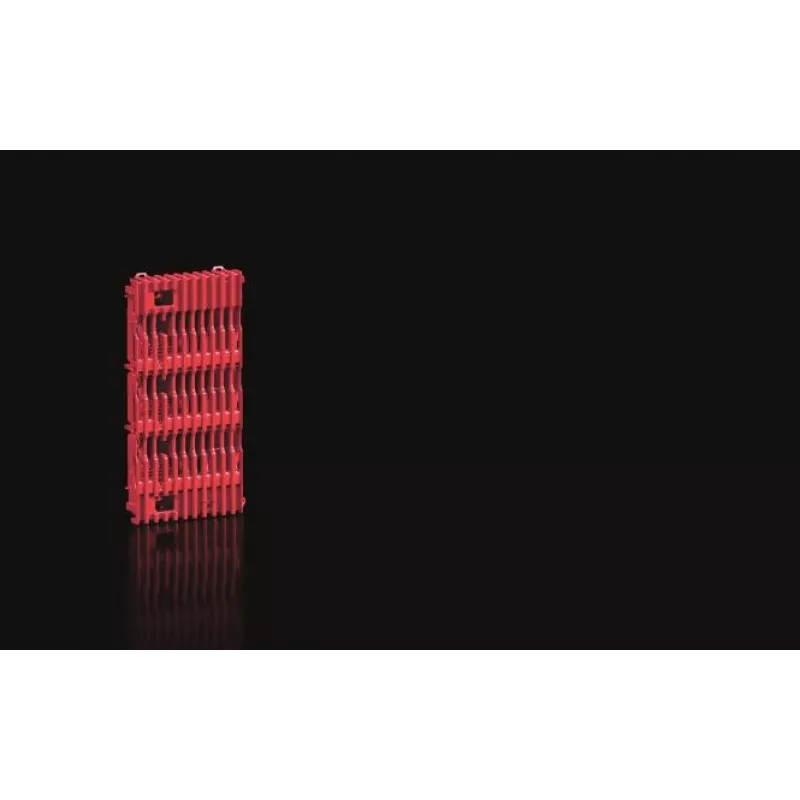

Módulo base Rittal RiLineX RX L 100 mm 1 6 (9360110) — módulo base de distribución de barras colectoras, 100 mm de ancho

Rittal RiLineX Basismodul RX L 100 mm is a busbar distribution base module designed for RiLineX modular busbar systems. The unit provides a 100 mm mounting width and acts as a stable support and connection element for busbar conductors, accessories and protective components inside electrical distribution enclosures. It is intended to enable compact, organized power distribution and straightforward extension or reconfiguration of feeders and protective devices within switchgear and distribution cabinets.

Advantages

The module offers a standardized mounting width that simplifies alignment and integration with other RiLineX components. It supports orderly routing of busbar conductors and provides a reliable mechanical base for attaching accessories and protective devices. Its design facilitates expansion and modular changes without extensive rewiring, reducing installation time and improving maintainability in electrical distribution setups.

Suitable for

Key specifications

How to use

Install the base module into the RiLineX mounting rail or designated slot inside the distribution cabinet according to the system layout. Position busbar conductors and accessories on the module and secure them following the manufacturer's assembly sequence and torque specifications. Use the module as a fixed support when fitting protective devices, feeders or connector accessories, ensuring clearances and isolation distances are maintained for safe operation. For system expansion, add compatible modules and components in sequence to preserve alignment and connectivity.

Recommendations

Follow Rittal installation guidelines and local electrical codes when fitting the module. Verify compatibility with existing RiLineX components, observe recommended clearances, and apply correct fastening torque values to terminals and mounting points. Use appropriate personal protective equipment and de-energize circuits before making connections or modifications.
