Adaptador de cable de vídeo DeLOCK 84452 2 m VGA D-Sub 3,5 mm negro

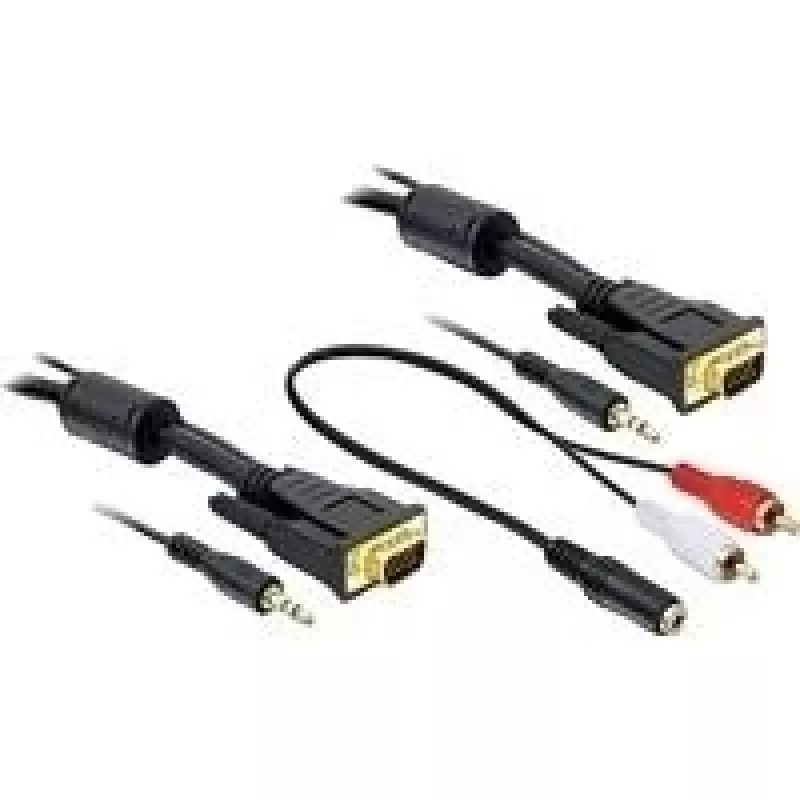

This VGA cable by Delock allows connecting a monitor to a free VGA (D-Sub) port on a PC while also providing audio transmission via two 3.5 mm audio plugs. The cable is approximately 2 m long and comes in black.

Advantages

The cable features gold-plated connectors and two ferrite cores to reduce interference. It uses a double-shielded coax RGB conductor with three coaxial inner conductors for RGB and eight sync lines to maintain signal quality over the 2 m length. Two separate audio leads of different lengths facilitate connection to sound cards and monitors.

Suitable for

• Connecting a PC to a VGA monitor
• Connecting a PC to a projector with VGA input
• Transmitting analog audio from a PC sound card to a monitor or speakers

Key specifications

• Connector: VGA 15 pin male — male (D-Sub)
• Audio connector: 2 × 3.5 mm male — male
• Cable length: approx. 2 m
• Audio lead lengths: one 30 cm, one 60 cm
• Shielding: double shielded coax RGB conductor
• Inner conductor: 3 × coax (RGB) + 8 sync lines
• Ferrite cores: 2
• Connector plating: gold plated
• Colour: Black

How to use

Connect the VGA (D-Sub) male plug to the monitor and the other VGA plug to the PC's VGA port, securing the screws to prevent loosening. Plug the 3.5 mm audio leads into the PC sound card outputs and the monitor or external speakers to enable audio transmission. Use the shorter or longer audio lead as appropriate to reach the audio jack on your devices.

Recommendations

For best results, keep the cable away from strong electromagnetic sources and avoid sharp bends. Tighten connector screws gently to avoid damaging the ports. The cable is intended for analog VGA video and stereo audio; it does not support digital signals such as DVI or HDMI.
