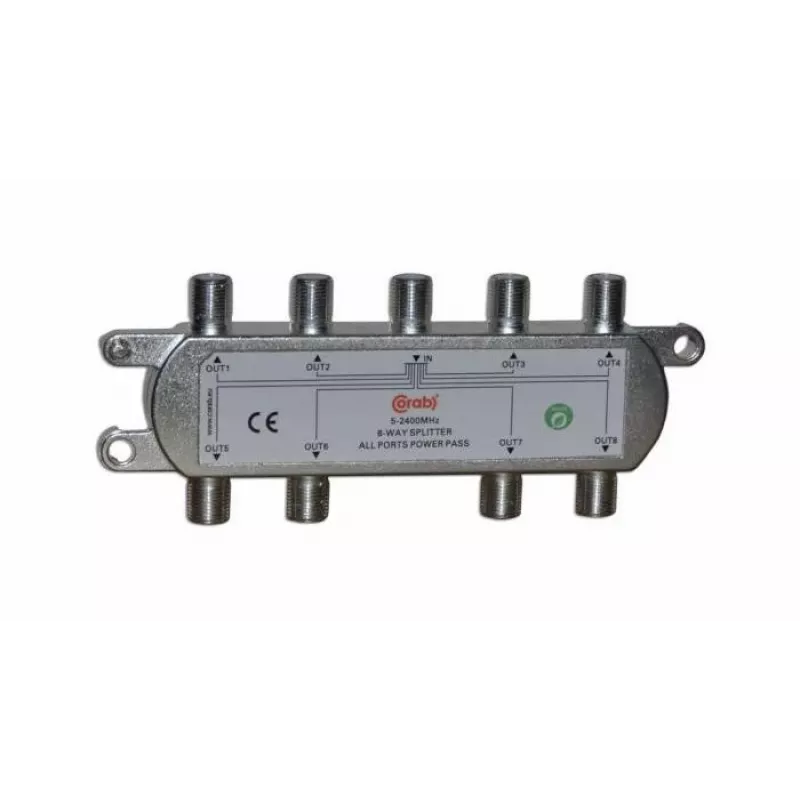

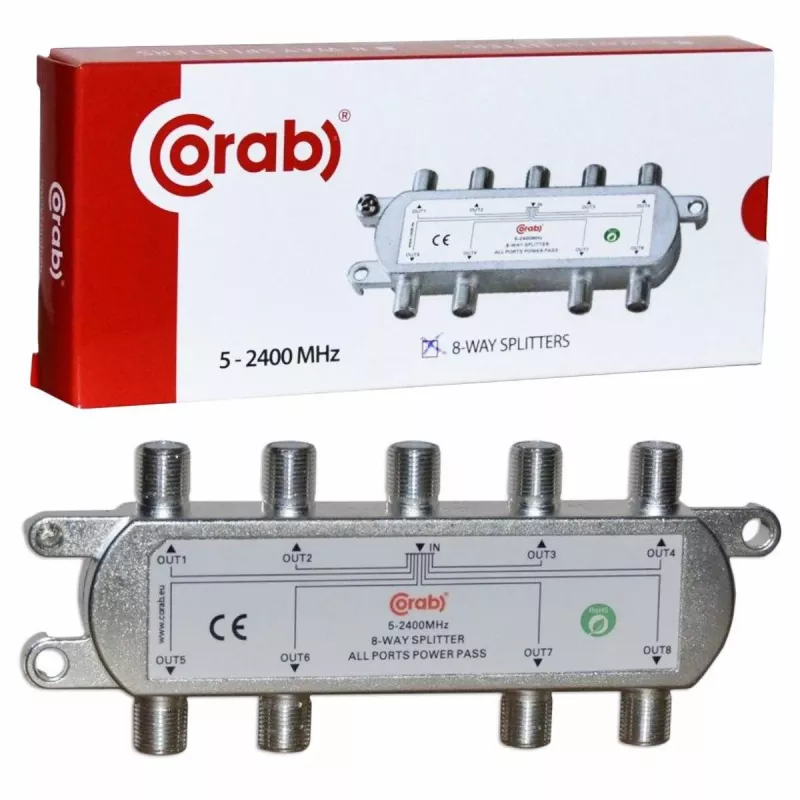

CORAB distribuidor de 8 vías 5-2400 MHz con paso DC

Distributing a single antenna signal to eight separate receivers without signal degradation is a common challenge in both residential and commercial installations. The CORAB 8-Way Splitter 5-2400 MHz with DC Pass solves this by providing a robust, low-loss solution that maintains signal integrity across the entire 5 to 2400 MHz frequency range. This splitter is engineered for modern TV and satellite systems, supporting DVB-T/T2, DVB-S/S2, and FM/DAB+ broadcasts, ensuring every connected device receives a clean, stable signal.

Who is it for

This splitter is ideal for installers, system integrators, and DIY enthusiasts who need to feed multiple TVs, set-top boxes, or tuners from a single antenna or satellite dish. It is particularly suited for multi-room installations in homes, apartment buildings, hotels, and offices where reliable signal distribution is critical. The DC pass feature makes it compatible with satellite systems that require power to be sent to the LNB or preamplifier, eliminating the need for separate power inserters.

Main features

• Wide frequency range: 5-2400 MHz covers terrestrial TV, satellite, FM, and DAB+.
• 8 outputs: Distribute signal to up to eight devices simultaneously.
• DC pass on all outputs: Allows power to pass through to power LNBs or amplifiers (max 500mA).
• Low insertion loss: Minimal signal attenuation across all bands.
• High isolation: Prevents interference between outputs.
• Die-cast zinc housing: Nickel-plated for durability and shielding.
• F-type female connectors: Standard for coaxial cables.
• Wall mountable: Easy installation with included mounting kit.

Specifications

• Frequency range: 5-2400 MHz
• Number of inputs: 1
• Number of outputs: 8
• Insertion loss: 16 dB (5-470 MHz), 17 dB (470-860 MHz), 18 dB (950-1750 MHz), 19 dB (1750-2400 MHz)
• Isolation: >20 dB (5-470 MHz), >18 dB (470-860 MHz), >15 dB (950-2400 MHz)
• Return loss: >8 dB
• Impedance: 75 Ohm
• Connector type: F-type female
• Housing material: Die-cast zinc, nickel-plated
• DC pass: Yes, all outputs, max 500mA
• Mounting: Wall mountable

Tips

For best performance, use high-quality RG6 coaxial cables and ensure all connections are tight. When using the DC pass function, verify that the total current draw of connected devices does not exceed 500mA. Mount the splitter in a central location to minimize cable runs and signal loss. If unused outputs are present, consider terminating them with 75 Ohm caps to maintain impedance matching.
