Adaptador de conector hembra F a conector macho BNC ShiverPeaks 85330 – adaptador coaxial

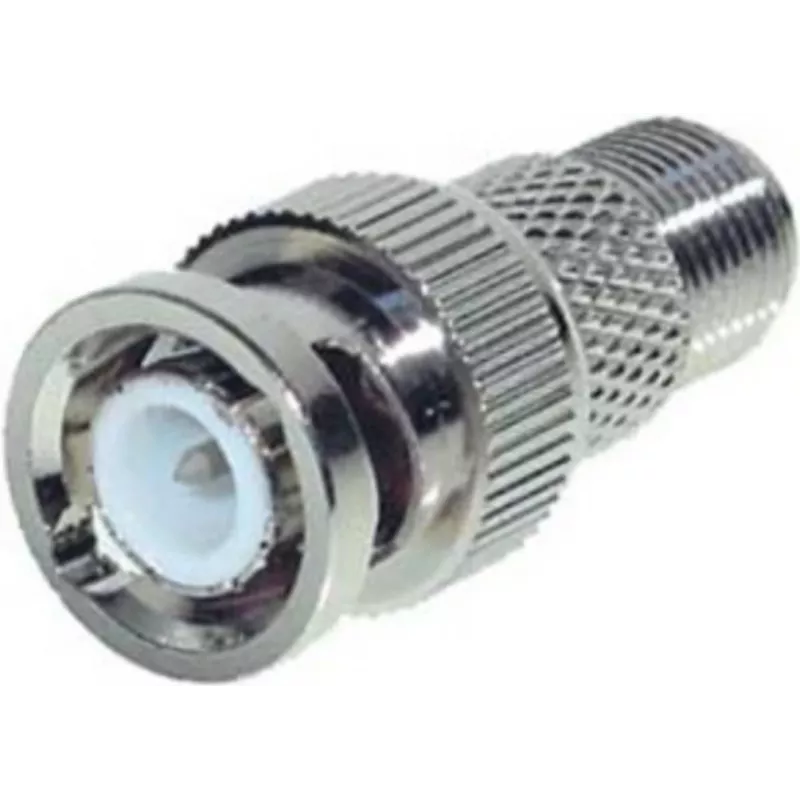

The ShiverPeaks adapter converts an F-type female connector to a BNC male connector, providing a compact and reliable mechanical interface for coaxial RF cabling. Designed for use in TV, satellite and radio installations as well as for test setups and device integration, this adapter allows connection between equipment or cables that use F-type and BNC connector standards without modifying existing cables.

Advantages

This adapter offers a simple, space-saving solution for interconnecting F-type and BNC devices while maintaining proper impedance continuity for typical consumer RF applications. Its metal construction ensures secure mating and stable signal transmission, and the compact form factor keeps connectors close to devices or panels. The adapter is passive and requires no power or configuration, making it convenient for temporary or permanent installations.

Suitable for

• Connecting coaxial cables between F-type outputs (for example from satellite LNBs or TV wall sockets) and BNC-equipped test instruments or legacy devices
• Temporary signal routing during installation, troubleshooting, or signal measurements
• Integrating older professional or laboratory equipment that uses BNC connectors with consumer coaxial feeds

Key specifications

• Connector conversion: F-type female to BNC male
• Applicable cable type: coaxial (75 Ω typical systems)
• Mechanical construction: metal body for secure coupling
• Operation: passive, no power required
• Typical applications: RF, TV, satellite, radio, test equipment connectivity

How to use

To use the adapter, first ensure both the F-type and BNC connectors and the connecting cables are free of dirt and damage. Screw the F-type female side onto the male F connector until hand-tight, taking care not to overtighten. Insert the BNC male into the BNC female socket and engage the bayonet coupling by pushing and twisting until it locks. Verify the mechanical connection is secure and, if applicable, check the signal continuity with test equipment before finalizing the installation.

Recommendations

For reliable performance, use the adapter in typical 75 Ω consumer RF environments and avoid exposing it to prolonged moisture, corrosive conditions, or mechanical strain from cable tension. When using with precision test measurements, be aware that any passive adapter can introduce small reflections; minimize additional adapters in the signal path for the most accurate results.
