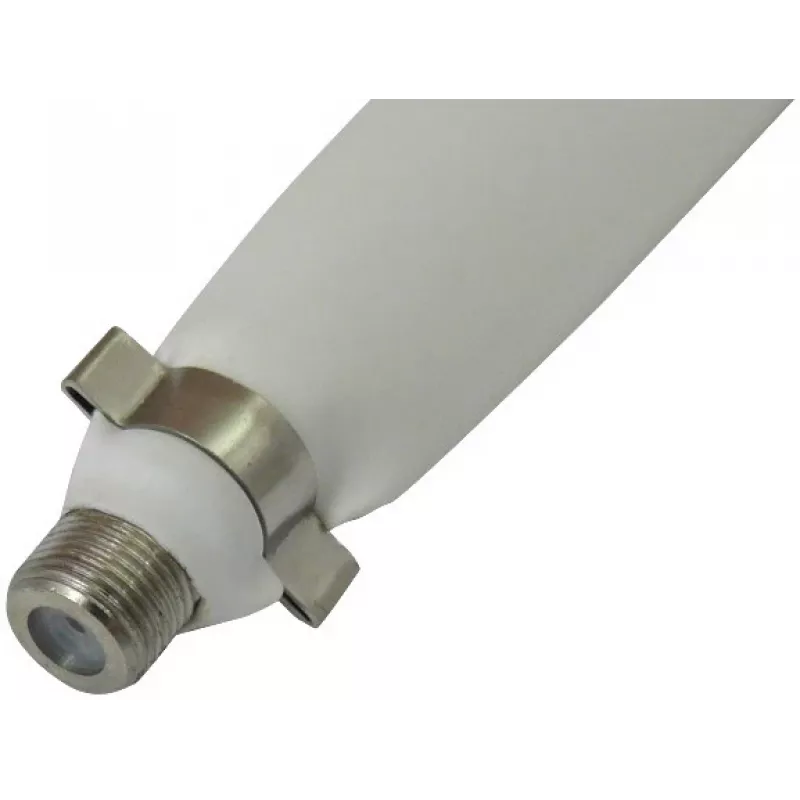

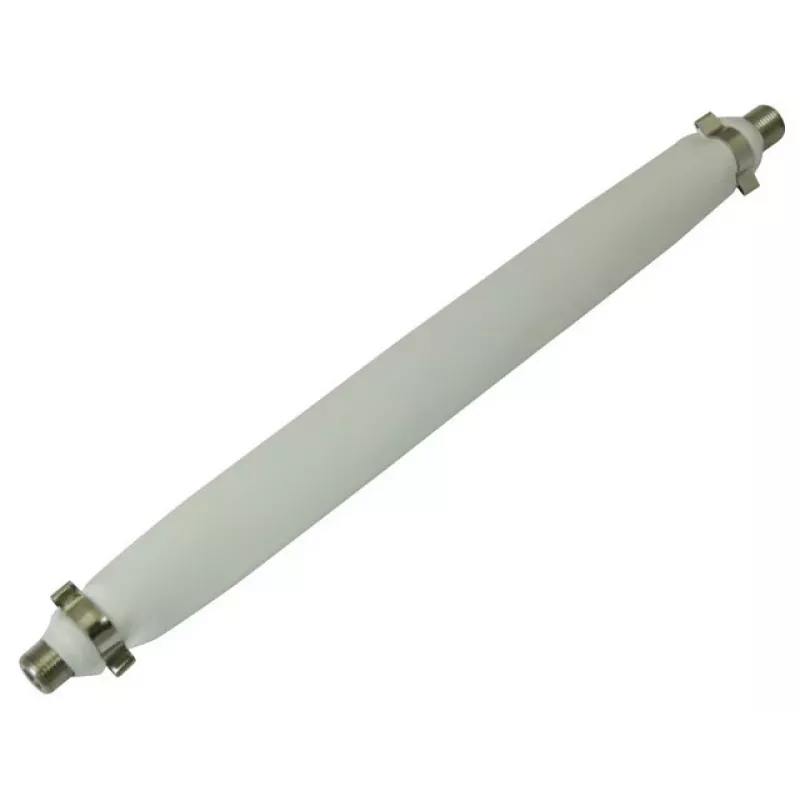

Opticum Cable plano pasamuros para ventana conector hembra F a conector hembra F 25 cm blanco

Coaxial pass-through cable with ultra-flat window section, engineered for reliable signal transfer through closed windows and doors. The flat, flexible design maintains a strong 75 Ohm connection for satellite, terrestrial, and cable TV without drilling holes.

Advantages

Double-shielded copper conductor ensures minimal signal loss (<1.0 dB) across 5–2400 MHz. The 0.2–0.3 mm flat section withstands repeated window closures, while PVC insulation protects against wear. F-female connectors on both ends provide secure, tool-free installation.

Suitable for

• Satellite TV (DVB-S/S2) connections through windows
• Terrestrial TV (DVB-T/T2) and cable TV setups
• Rental properties or temporary installations without drilling
• Connecting antennas, receivers, or splitters across window frames

Key specifications

• Connector 1: F-female
• Connector 2: F-female
• Impedance: 75 Ohm
• Frequency range: 5–2400 MHz
• Insertion loss: <1.0 dB
• Cable length: 25 cm
• Flat section thickness: 0.2–0.3 mm
• Conductor: Copper
• Shielding: Double shielded
• Colour: White

Recommendations

Ideal for users needing a discreet, damage-free signal path through windows or doors. Pair with high-quality F-connectors and weatherproofing for outdoor use.
