Adaptador de fibra óptica Equip LC OM3, 12 uds./pack

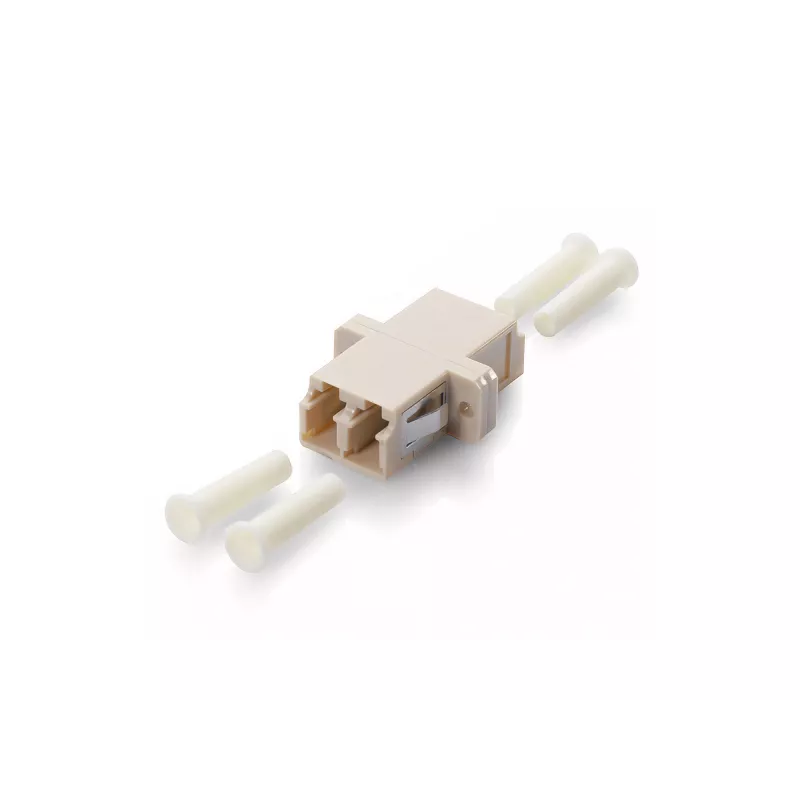

The Equip LC Fiber Optic Adapter OM3 is a compact, beige-colored multimode adapter designed to join two LC fiber patch cables. With dimensions of 12.8 mm (W) x 29.2 mm (D) x 9.35 mm (H) and a weight of 0.005 kg, it can be mounted on a patch panel to integrate securely with existing cabling. A dust-free protective cap reduces contamination at the connection and helps maintain long-term performance.

Advantages

This LC adapter for OM3 multimode fiber provides stable alignment for LC connectors, supports routine patching operations, and is small enough to fit high-density panels. The included dust cap protects ferrules from dirt and mechanical damage, contributing to reliable signal transmission and extended service life.

Suitable for

• Joining two LC multimode (OM3) patch cables
• Mounting in patch panels or fiber enclosures
• Data center and local area network fiber links

Key specifications

• Connector type: LC
• Fiber type: Multimode OM3
• Colour: Beige
• Dimensions (W×D×H): 12.8 × 29.2 × 9.35 mm
• Weight: 0.005 kg
• MPN: 156151007
• EAN: 4015867193877

How to use

Install the adapter into a compatible cutout in a patch panel or fiber enclosure until it snaps or seats firmly. Remove the dust caps from the adapter and from the LC patch cable connectors, then insert the LC connectors into the adapter until they click into place. To disconnect, press the LC connector latch and pull straight out. Keep dust caps on unused ports to prevent contamination.

Recommendations

Store and handle the adapter in a clean environment, clean fiber end-faces with appropriate tools before mating, and avoid excessive bending of connected fiber cables to preserve OM3 performance.
