Adaptador de fibra óptica MTP/MPO EFB Elektronik 53458.1V2

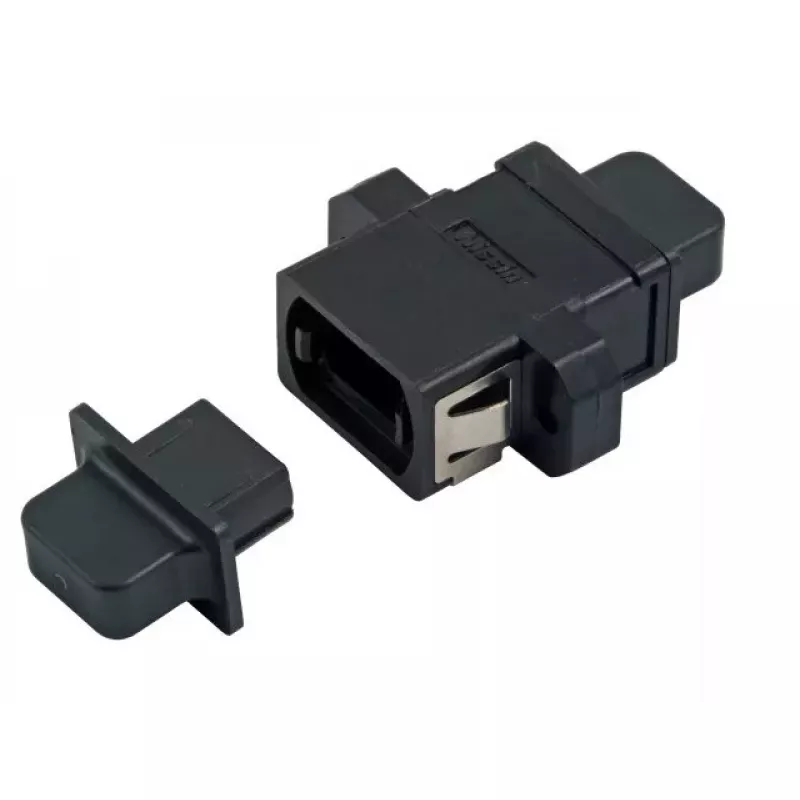

The EFB Elektronik 53458.1V2 is an MTP/MPO fibre optic adapter suitable for both multimode and single-mode connections. It has a compact rectangular body in black and is supplied as a single unit. The adapter is intended for linking MTP/MPO-terminated cables and components in data centre and telecommunication installations where a compact, durable connection element is required.

Advantages

The adapter supports both multi-mode and single-mode fibre types and provides a compact footprint with dimensions of 25 mm (width) × 20.5 mm (depth) × 9.7 mm (height). Supplied as a single unit in a robust housing, it is designed for reliable mating of MTP/MPO connectors and for use in dense patching environments.

Suitable for

• Linking MTP/MPO-terminated trunk cables
• Patch panel and cassette connections in data centres
• High-density optical networking and telecommunication racks
• Repairs or replacements of individual MTP/MPO adapter positions

Key specifications

• Brand: EFB Elektronik
• Model / MPN: 53458.1V2
• EAN: 4049759137373
• Type: MTP/MPO fibre optic adapter
• Compatible fibre: multi-mode and single-mode
• Colour: black
• Quantity: 1 piece
• Dimensions: 25 mm (W) × 20.5 mm (D) × 9.7 mm (H)

How to use

Install the adapter into the appropriate panel, cassette or housing cutout and align it with the mating connector slot. Insert MTP/MPO connectors straight into the adapter until they engage; ensure proper alignment and secure mating to achieve the intended optical connection. When removing, disengage connectors by pulling straight back to avoid bending the fibre ends.

Recommendations

Handle connectors and the adapter with care to avoid contamination of fibre endfaces. Use industry-standard cleaning tools for MTP/MPO connectors before mating and follow your site’s installation procedures to ensure low insertion loss and reliable performance.
