Armario rack Lanview RWMIP66W07U66W 7U IP66 blanco

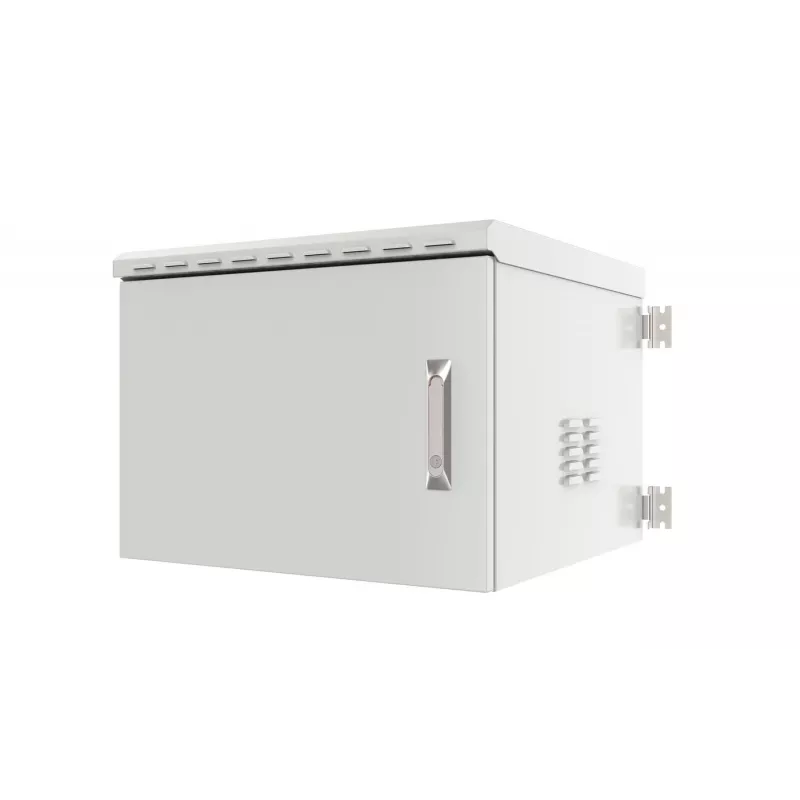

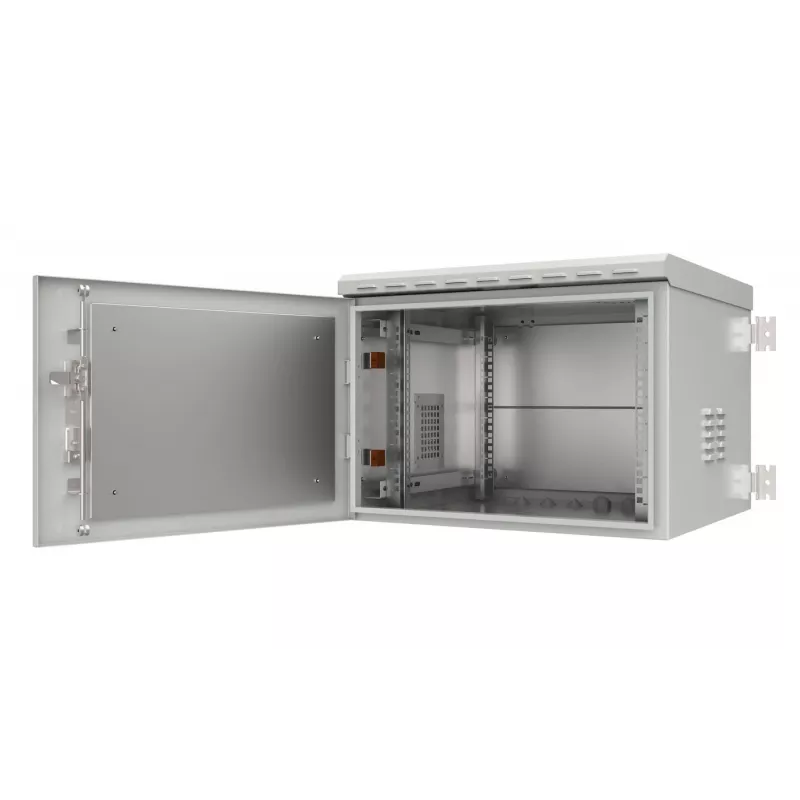

Rack Cabinet Lanview RWMIP66W07U66W 7U IP66 White. The Lanview RWMIP66W07U66W is a 7U rack cabinet with IP66 protection designed for use in demanding or exposed environments. It has external dimensions of 600 x 600 x 410 mm; the depth includes a protruding roof, while the depth without the roof is 400 mm. The cabinet is finished in white and weighs 26 kg.

Advantages

The cabinet provides IP66-rated protection against dust and powerful water jets, ensuring sealed protection for equipment. Its 7U rack capacity supports standard 19" equipment in a compact footprint. The white finish and robust construction combine durability with a neutral appearance suitable for various installations.

Suitable for

• Small server or network equipment deployments requiring environmental protection
• Outdoor or industrial locations where dust and water resistance are necessary
• Telecommunications and security equipment in exposed enclosures

Key specifications

• Model: RWMIP66W07U66W
• Rack capacity: 7U, 19"
• IP rating: IP66
• Dimensions (W x D x H): 600 x 600 x 410 mm (depth without roof: 400 mm)
• Weight: 26 kg
• Colour: White

How to use

Install the cabinet on a stable, level surface or mount according to site requirements. Mount standard 19" equipment into the 7U rack space using appropriate rails and fasteners. Ensure that cable entry points are correctly sealed to maintain the IP66 rating and that any installed ventilation or cooling accessories are compatible with the enclosure's protection level.

Recommendations

To preserve IP66 protection, inspect seals and gaskets regularly after installation and after exposure to harsh conditions. Use compatible cable glands and ensure roof protrusions do not obstruct installation or airflow.
