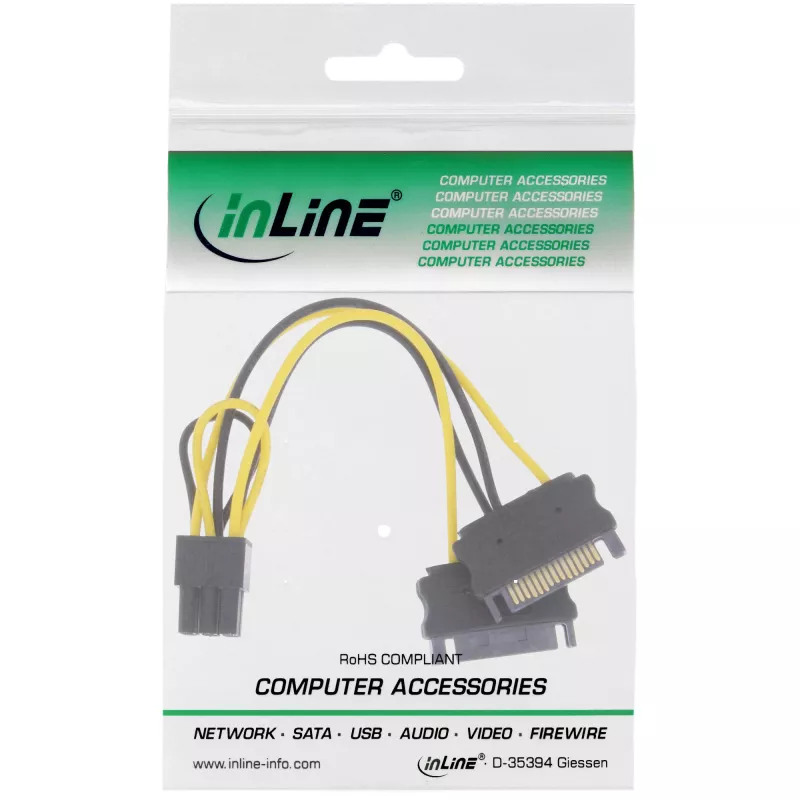

Adaptador de red InLine 2x SATA / 6 pines para tarjeta gráfica PCIe 26628B

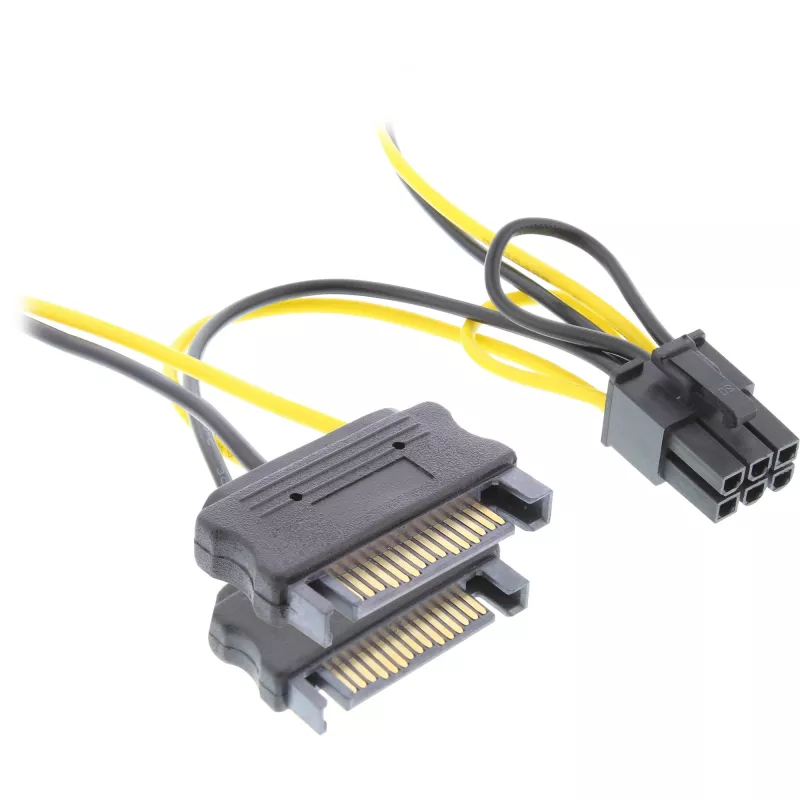

The InLine Power Adapter 2x SATA / 6 Pin for PCIe graphics card (model 26628B) converts two SATA power connectors into a single 6-pin PCIe power plug. With a cable length of 0.15 m and a 6-pin PCI-E connector paired with two 15-pin SATA plugs, this internal adapter supplies power to compatible PCIe graphics cards where a dedicated 6-pin cable is not available.

Advantages

This adapter provides a compact and straightforward solution to power a PCIe graphics card from two SATA power sources. Its short 0.15 m cable reduces cable clutter inside the PC case. The 6-pin PCI-E connector and dual 15-pin SATA connectors follow standard pin layouts to ensure compatibility with typical power supplies and graphics cards.

Suitable for

• Powering PCIe graphics cards that require a 6-pin connector when a dedicated PCIe cable is absent
• Upgrading or assembling desktop PCs with limited PSU PCIe connectors
• Temporary or troubleshooting power connections for GPU installation

Key specifications

• Brand: InLine
• Model/MPN: 26628B
• EAN: 4043718231089
• Cable length: 0.15 m
• Connector 1: PCI-E (6-pin)
• Connector 2: 2 x SATA 15-pin
• Product colour: Multicolour

How to use

Connect the two 15-pin SATA plugs to available SATA power sockets from the power supply, ensuring secure seating. Plug the 6-pin PCI-E connector into the graphics card’s power input. Confirm that the power supply can deliver sufficient current for the GPU before use. Recheck connections after initial power-up to ensure stable contact.

Recommendations

Use this adapter only with power supplies that can provide adequate combined current on the SATA rails. Avoid relying on this adapter for long-term high-power GPUs; prefer a direct PCIe power cable from the PSU when available.
