GEMBIRD Cable distribuidor de alimentación SATA con conectores de salida en ángulo, 15 cm

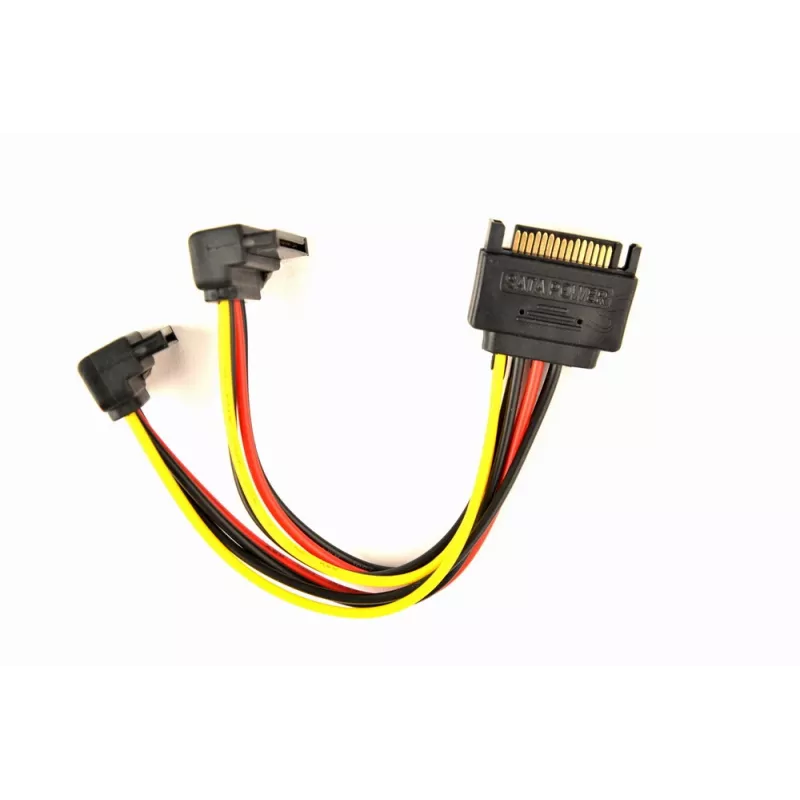

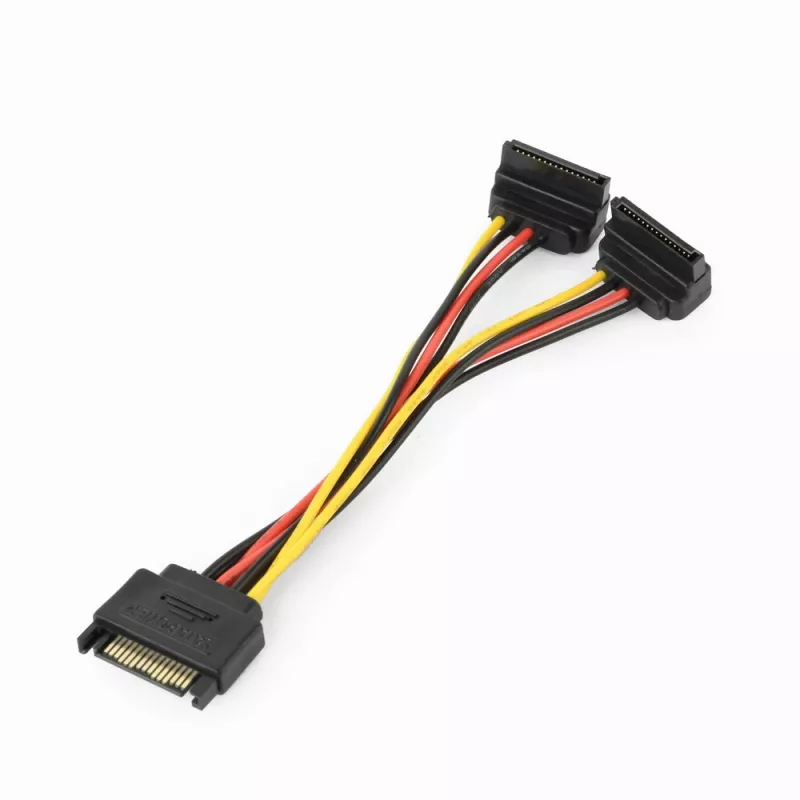

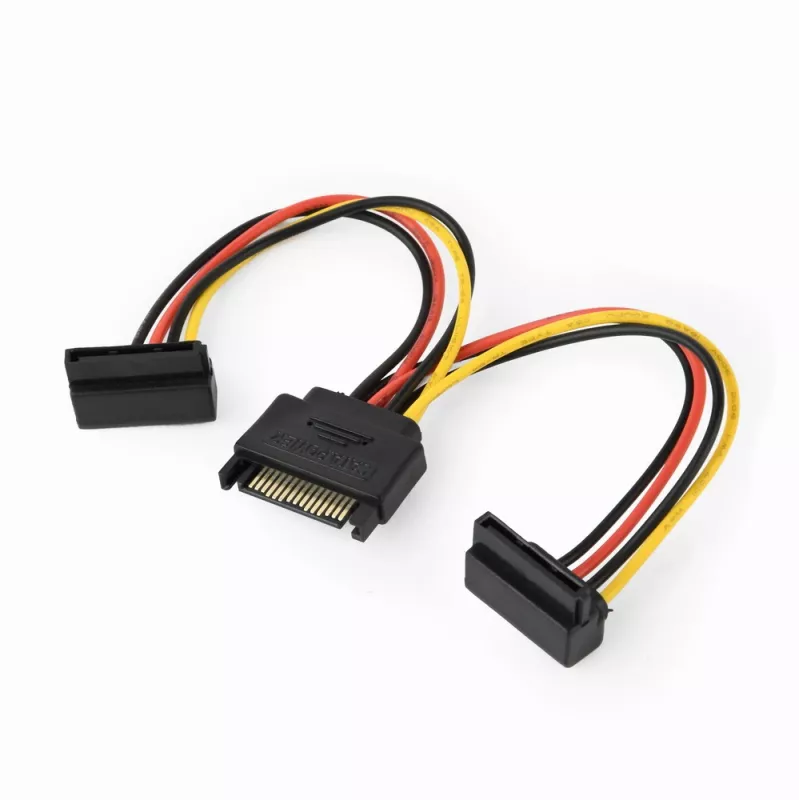

The Gembird CC-SATAM2F-02 is a 0.15 m internal SATA power cable with a single SATA male connector that splits into two SATA 15-pin female connectors. Designed for powering SATA drives and other internal devices in compact PC builds, the cable includes 90-degree angled SATA outputs to ease connection in tight spaces and improve cable routing.

Advantages

This short splitter cable provides two SATA power outputs from a single internal power line, reducing the need for additional power connectors from the PSU. The 90-degree angled female connectors help fit drives in cramped enclosures and contribute to neater cable management. Its compact length is suitable for compact cases and short internal runs, minimizing excess slack.

Suitable for

• Connecting two SATA drives (HDD/SSD) to a single power connector
• Small form-factor or compact PC cases
• Improving cable routing in tight internal spaces

Key specifications

• Brand: GEMBIRD
• Model: CC-SATAM2F-02
• Cable length: 0.15 m
• Connectors: 1 x SATA male to 2 x SATA 15-pin female
• Output orientation: 90-degree angled SATA outputs
• Category: PC internal cables

How to use

Connect the single SATA male power plug to an available SATA power lead from the power supply. Then attach the two SATA 15-pin female connectors to the power sockets of the target SATA devices (HDD, SSD, optical drive). Ensure connectors are fully seated and aligned to avoid loose contacts. Route the cable to avoid sharp bends and keep it clear of moving parts.

Recommendations

Avoid overloading a single PSU rail by connecting too many high-current devices to one splitter; check your power supply capacity and distribute load if necessary.
