Adaptador DeLOCK 2x 67-pin M.2 Key B - 2x SATA 7-pin

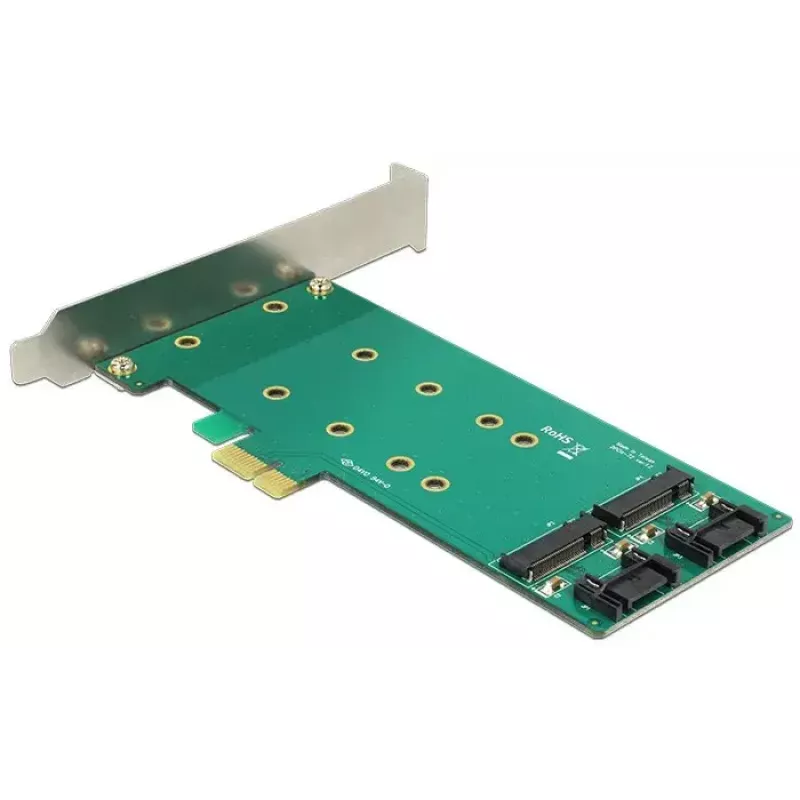

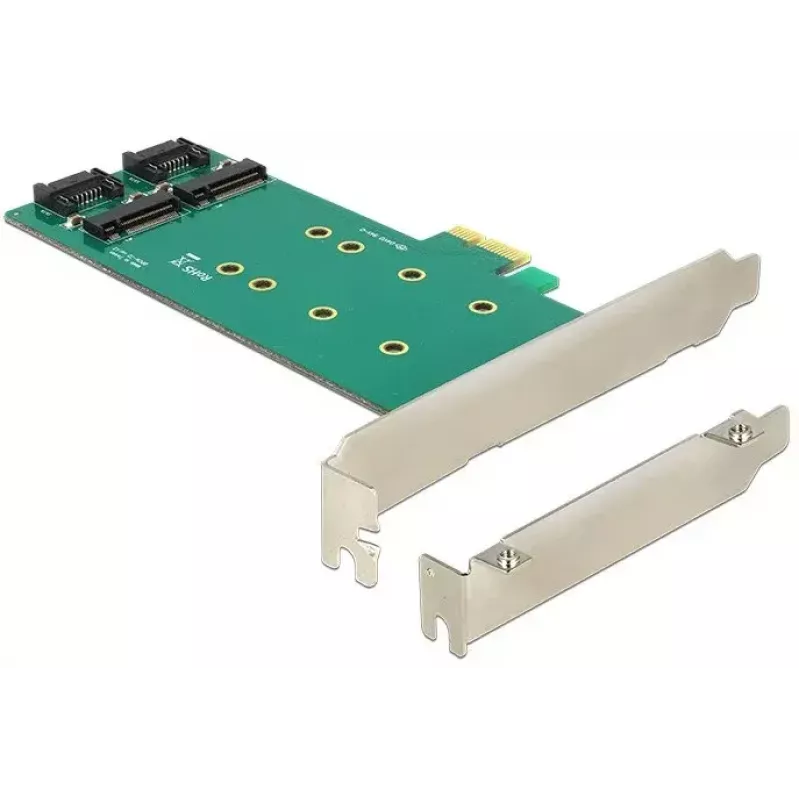

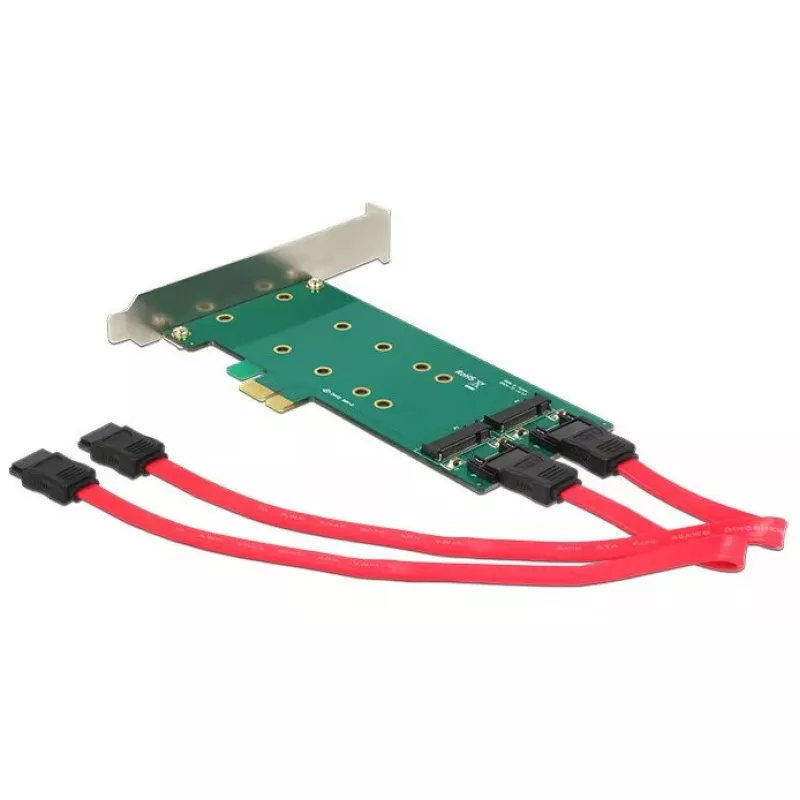

This Delock PCI Express adapter provides two M.2 slots (Key B, 67-pin) on a single card, allowing installation of two M.2 SATA modules in sizes 22110, 2280, 2260, 2242 and 2230. The card connects the M.2 modules to the motherboard via the included SATA 7-pin cables and supports SATA III transfer rates up to 6 Gbit/s. The low-profile form factor makes the adapter suitable for compact PC builds and it is compatible with Windows 10 and Windows 7.

Advantages

The adapter enables adding two internal SATA M.2 drives through one PCIe slot, includes SATA cables for immediate installation, and supports standard 6 Gbit/s SATA III speeds. Its low-profile design fits smaller cases and the card is compatible with common Windows systems.

Suitable for

Key specifications

How to use

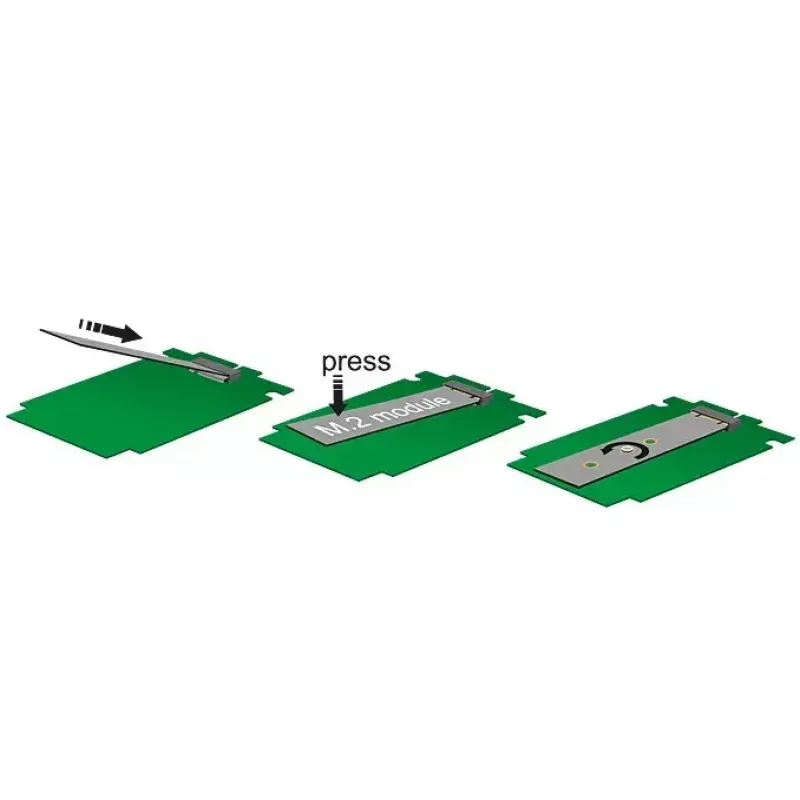

Install the adapter into an available PCIe slot on the motherboard. Mount up to two M.2 SATA modules into the M.2 Key B sockets and secure them according to their length. Connect each M.2 module to the motherboard SATA ports using the supplied SATA 7-pin cables. Power the system and configure the drives in the BIOS/UEFI or the operating system to initialize and format them as required.

Recommendations

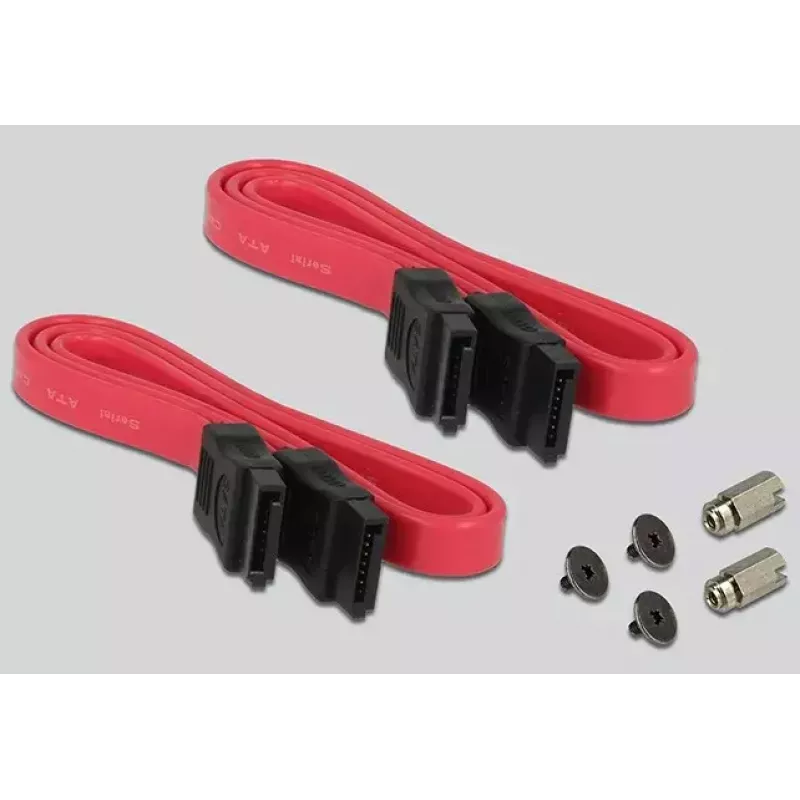

Ensure the motherboard has available SATA ports and power connectors before installation; check BIOS/UEFI settings for SATA controller visibility. Use the supplied SATA cables (maximum 0.5 m) and avoid extending them to preserve signal integrity.
