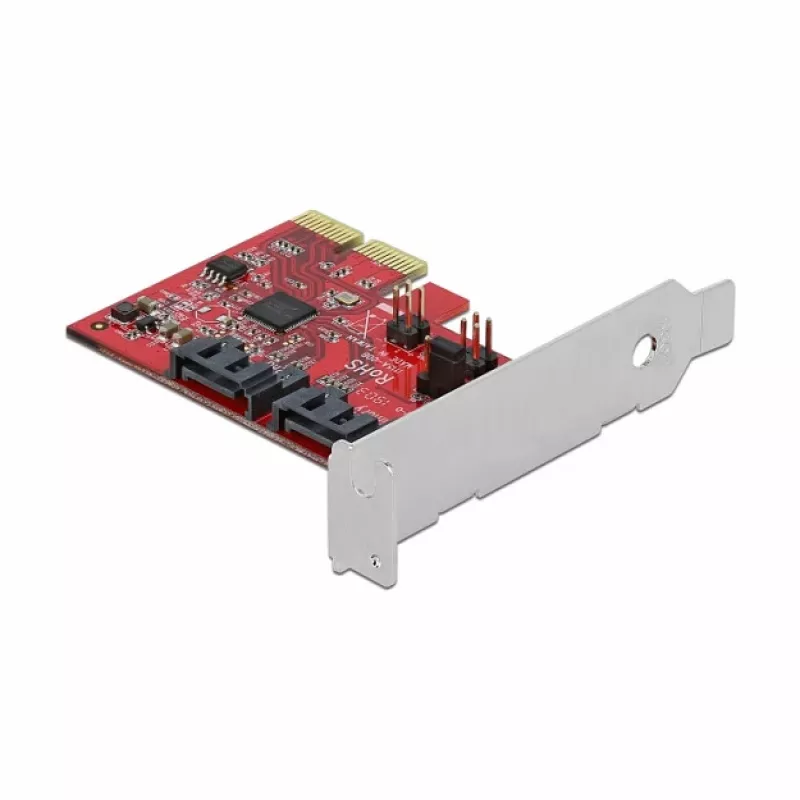

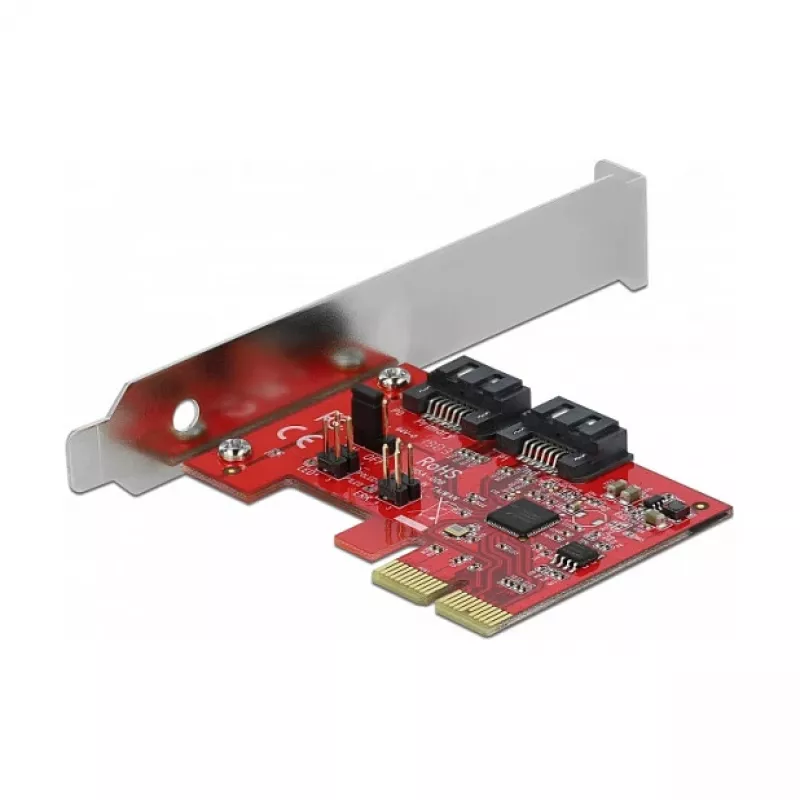

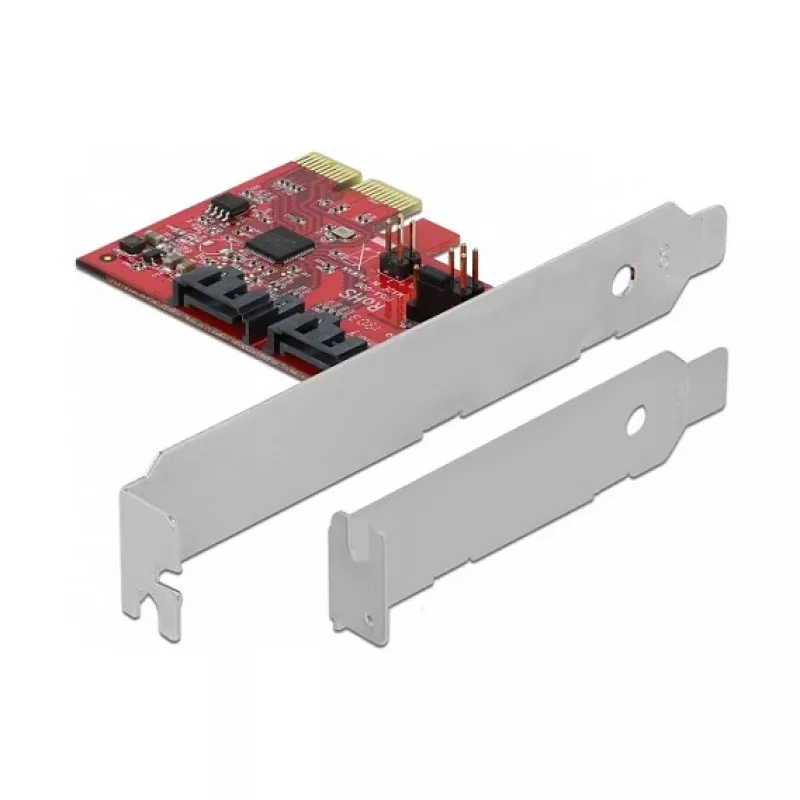

Tarjeta de interfaz DeLOCK 90406 interna SATA

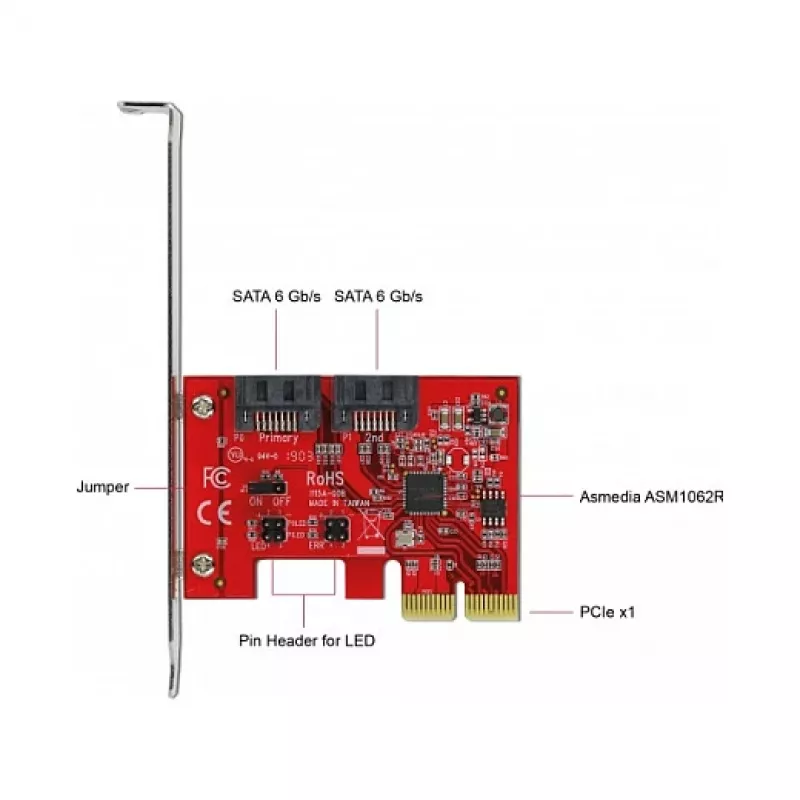

The DeLOCK 90406 Internal SATA interface card adds two internal SATA ports to a computer via a PCIe slot, allowing connection of SATA devices such as SSDs, hard drives and optical drives. It complies with PCI 2.0 and is compatible with common Windows operating systems, enabling straightforward expansion of a system's internal storage.

Advantages

This PCI Express card provides two additional internal SATA ports without requiring changes to the motherboard. A notable feature is its RAID 1 support that can mirror data from an existing SSD or HDD to a second drive without formatting the original disk. The card is simple to install in a free PCIe slot and supports standard SATA devices for increased storage flexibility.

Suitable for

Key specifications

How to use

Power down the PC and insert the DeLOCK 90406 card into an available PCIe slot. Secure the card to the chassis, connect internal SATA devices to the card's SATA ports using standard SATA cables, and reconnect power. Boot the system and install any required drivers if prompted by the operating system. Configure RAID 1 mirroring through the card's management utility or BIOS/firmware options if you need to mirror an existing drive.

Recommendations

When creating a RAID 1 array that includes an existing drive, ensure you have verified backups before starting the mirroring process. Confirm compatibility of connected SATA devices and use quality SATA cables and adequate power supply connections for stable operation.
