Adaptador DeLOCK DisplayPort 1.2 conector macho a conector hembra DVI 4K pasivo negro

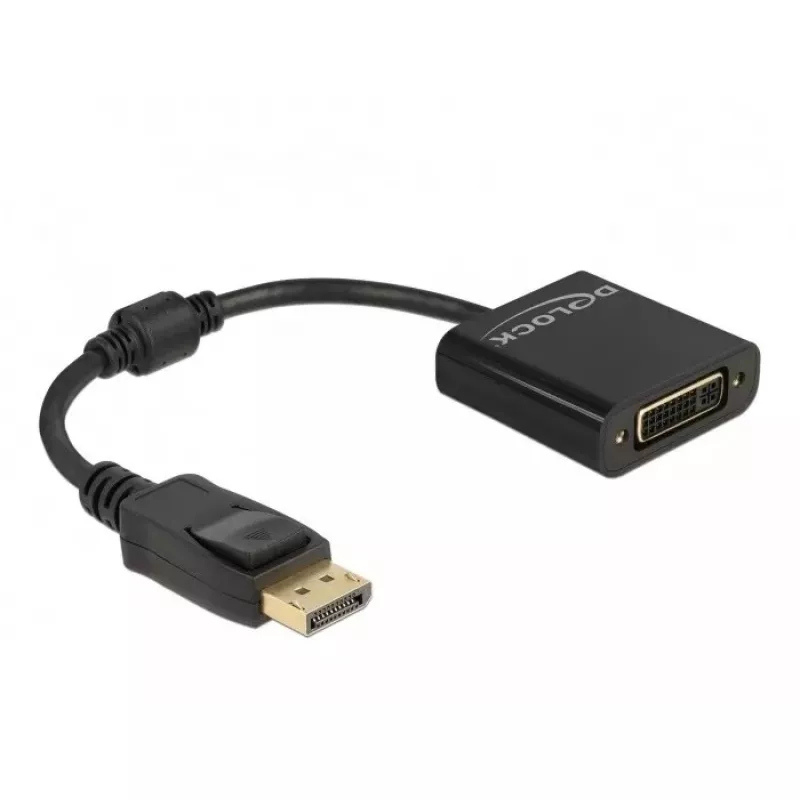

The DeLOCK Adapter DisplayPort 1.2 male to DVI female is a compact passive adapter that lets you connect a DVI monitor or projector to a computer or laptop with a DisplayPort output. The adapter supports resolutions up to 4K Ultra HD at 30 Hz and is backward compatible with Full HD 1080p. It has a short cable length of 0.15 m and comes in black.

Advantages

This passive DisplayPort to DVI adapter provides a straightforward, plug-and-play solution for video output conversion without requiring additional drivers or power. It supports high-resolution signals up to 4K@30 Hz while remaining compatible with older 1080p DVI displays. The compact design and 0.15 m cable make it convenient for tight setups and portable use.

Suitable for

• Connecting a DVI monitor to a PC or laptop with DisplayPort output
• Connecting a DVI projector for presentations
• Temporary setups or portable workstations where a short adapter cable is sufficient

Key specifications

• Brand: DELOCK
• Model / MPN: 61023
• EAN: 4043619610235
• Connector 1: DisplayPort (male)
• Connector 2: DVI (female)
• Cable length: 0.15 m
• Supported resolution: up to 4K Ultra HD (3840 × 2160) at 30 Hz; backward compatible with 1080p
• Type: Passive adapter
• Colour: Black

How to use

Connect the DisplayPort male plug to the DisplayPort output on your computer or laptop and attach the DVI cable from your monitor or projector to the DVI female connector on the adapter. Once connected, the system should detect the external display automatically. Configure resolution and refresh rate in your operating system display settings as required, ensuring the output is set to a maximum of 3840 × 2160 at 30 Hz for 4K.

Recommendations

Use this passive adapter where the source device’s DisplayPort supports dual-mode (DP++). For reliable 4K@30 Hz output, check that both the graphics output and the DVI display support the required resolution and refresh rate. Avoid using the adapter for long-distance cable runs; its short 0.15 m cable is intended for close connections or as a simple adapter between cables.
