BitsPower racor recto G1/4" rosca macho a 16/10 mm giratorio — Arctic White

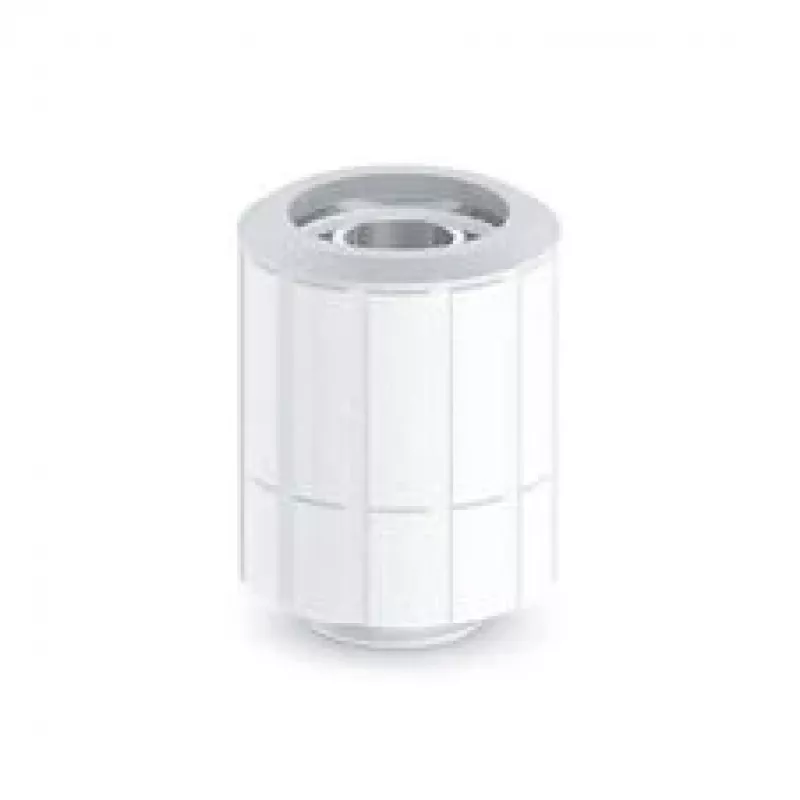

BitsPower straight rotary fitting G1/4" male to 16/10mm — Arctic White is a metal connection component intended for custom PC liquid-cooling loops. It provides a standard G1/4" male thread on one end and a 16/10 mm tube interface (16 mm outer, 10 mm inner) on the other, with a rotary/swivel function that simplifies hose routing in confined or complex builds. The Arctic White finish offers a neutral, low-profile appearance that integrates with light or white-themed systems while the compact straight design minimizes bulk at the connection point.

Advantages

The fitting combines a G1/4" threaded connection with a push-style 16/10 mm tube interface and a rotary joint to reduce strain on tubing during installation and operation. Constructed from metal for mechanical stability and resistance to deformation, it is designed for repeated assembly and secure sealing when used with compatible tubing and clamps or compression rings. Its straight orientation keeps the coolant path direct, aiding in predictable flow characteristics and compact layout planning.

Suitable for

• Custom PC water-cooling loops requiring a G1/4" male connection and 16/10 mm tubing.
• Builds where space constraints demand compact, straight fittings with a swivel capability.
• Systems that need reliable, metal fittings for frequent maintenance or reconfiguration.

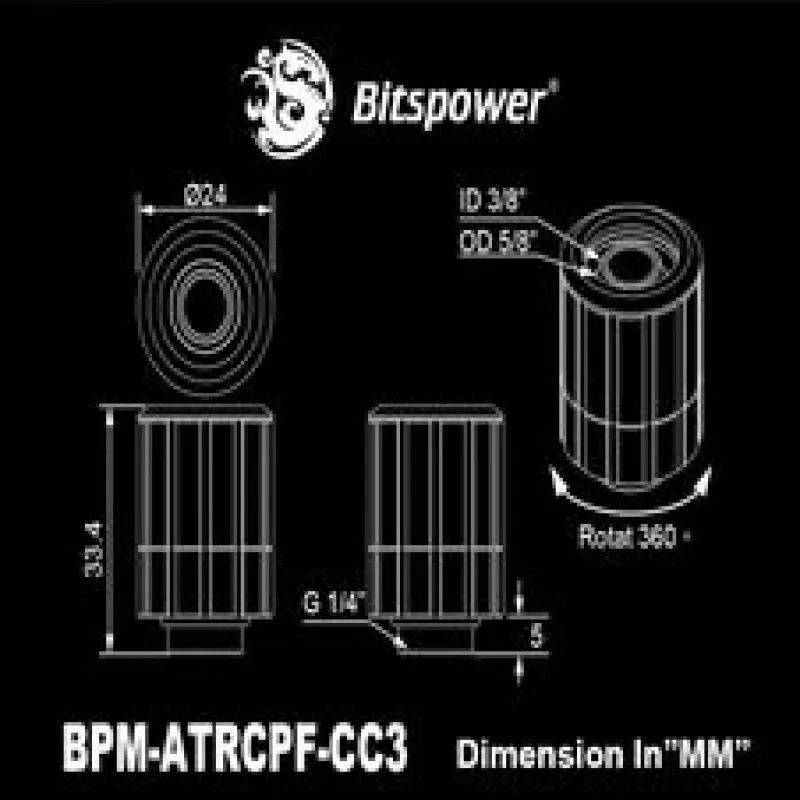

Key specifications

• Thread type: G1/4" male thread for standard water-cooling ports.
• Tube compatibility: 16/10 mm tubing (16 mm outer diameter, 10 mm inner diameter).
• Orientation: Straight fitting with rotary/swivel joint.
• Material: Metal construction for rigidity and wear resistance.
• Finish: Arctic White exterior coating.

How to use

Install the G1/4" male thread into a compatible water-cooling port and tighten to hand-plus-small-tool torque to ensure a secure seal without over-torquing. Slide the 16/10 mm tubing onto the tube interface and secure with the appropriate clamp or compression ring recommended for 16/10 mm tubing. Use the swivel function to orient the tubing for optimal routing and to relieve stress before final tightening. Perform a pressure or leak test after installation before powering the system.

Recommendations

Use with quality 16/10 mm tubing and compatible compression fittings or clamps. Avoid excessive torque on the G1/4" thread and verify all connections with a leak test. Periodically inspect fittings for signs of wear, coating damage, or loosening, especially after system maintenance.
