Adaptador gráfico USB Vision TC-USBCHDMI

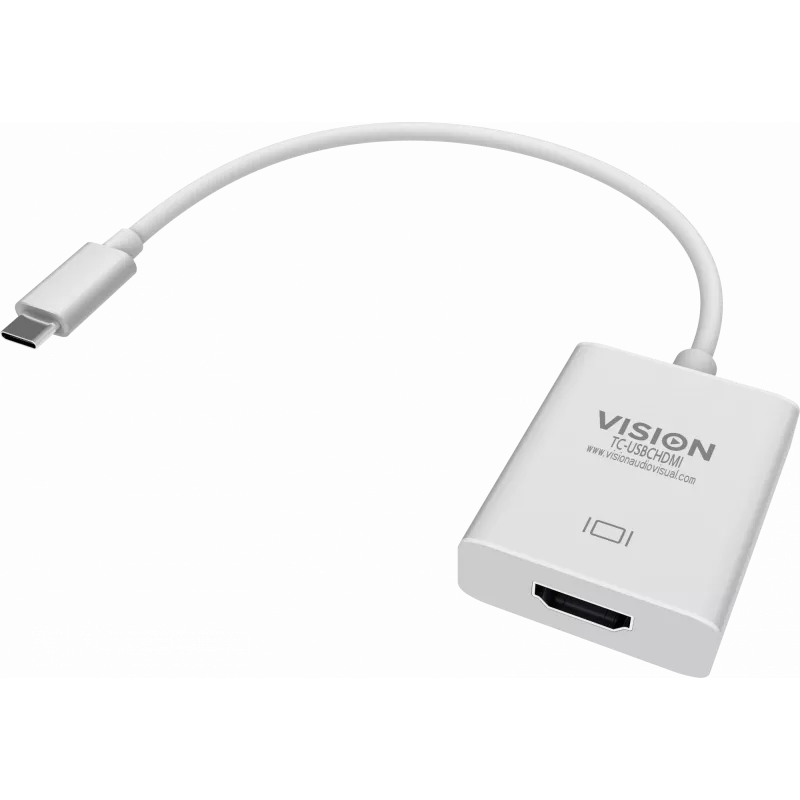

The VISION USB graphics adapter Vision TC-USBCHDMI connects a USB-C port on a laptop or compatible device to an HDMI display. The compact white adapter uses a USB 3.1 connection and supports up to 3840 x 2160 (4K) at 60 Hz, with nickel-plated connectors and FCC and CE compliance. The overall cable length is 200 mm and the product weight is approximately 0.03 kg, making it a lightweight solution to add HDMI output to USB-C equipped computers.

Advantages

The adapter provides a simple plug-and-play way to add an HDMI output to a USB-C port without additional drivers on most systems. Its 4K@60 Hz capability preserves high-resolution video and the nickel-plated connectors improve contact reliability. Small size and light weight make the Vision TC-USBCHDMI convenient for travel and mobile use.

Suitable for

• Connecting a laptop with USB-C to an external HDMI monitor or TV
• Extending or mirroring displays for presentations
• Portable use with tablets and ultrabooks that support USB-C video output

Key specifications

• Model: Vision TC-USBCHDMI
• Interface: HDMI (female) to USB-C (male), USB 3.1
• Maximum resolution: 3840 x 2160 (4K) @ 60 Hz
• Connectors: Nickel plated
• Colour: White
• Overall length: 200 mm
• Weight: 0.03 kg
• Compliance: CE, FCC

How to use

Plug the USB-C connector into a laptop or device that supports USB-C video output, then connect an HDMI cable from the adapter's HDMI female port to the external display. Configure the display settings in the operating system to extend or mirror the screen as needed. No additional installation is typically required on systems that support native USB-C video; if necessary, follow any on-screen prompts or check the device documentation for enabling USB-C display output.

Recommendations

Use a high-quality HDMI cable for best results and verify that the host device supports USB-C video output (DisplayPort Alt Mode) to achieve 4K@60 Hz. Avoid excessive bending of the short cable to maintain connector integrity.
