Adaptador HSD Z conector hembra a HSD Z conector macho DeLOCK 90484

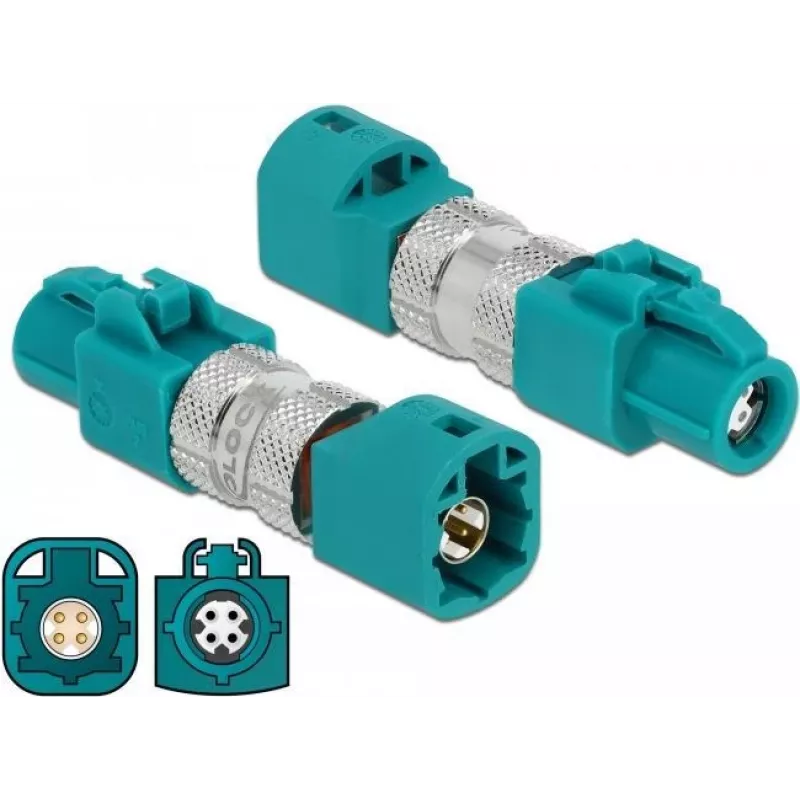

The DeLOCK Adapter HSD Z female to HSD Z male (MPN 90484, EAN 4043619904846) is a compact adapter designed to connect HSD Z connectors in electronic systems, including vehicle electronics. The adapter measures 14 mm (W) x 48 mm (D) x 12 mm (H) and comes in blue. It is supplied in a polybag for convenient storage and handling, and provides a reliable physical connection for data transmission between HSD Z interfaces.

Advantages

The adapter provides a secure connection between an HSD Z female and an HSD Z male connector in a small form factor. Its compact dimensions make it suitable for installations with limited space. The color coding (blue) helps with visual identification during assembly or maintenance. Packaging in a polybag simplifies transport and temporary storage.

Suitable for

Key specifications

How to use

Align the HSD Z female side of the adapter with the corresponding HSD Z male connector and press together until the connection is secure. Then connect the adapter's HSD Z male side to the target HSD Z female socket. Ensure connectors are oriented correctly and avoid forcing the parts. Use the adapter only with compatible HSD Z connectors and verify mechanical stability after installation.

Recommendations

Use the adapter in dry, vibration-controlled environments when possible and inspect the connectors for damage or contamination before use. Avoid exposure to excessive mechanical stress and follow vehicle manufacturer guidelines for connector handling in automotive applications.
