Adaptador M.2 interno DeLOCK 62703

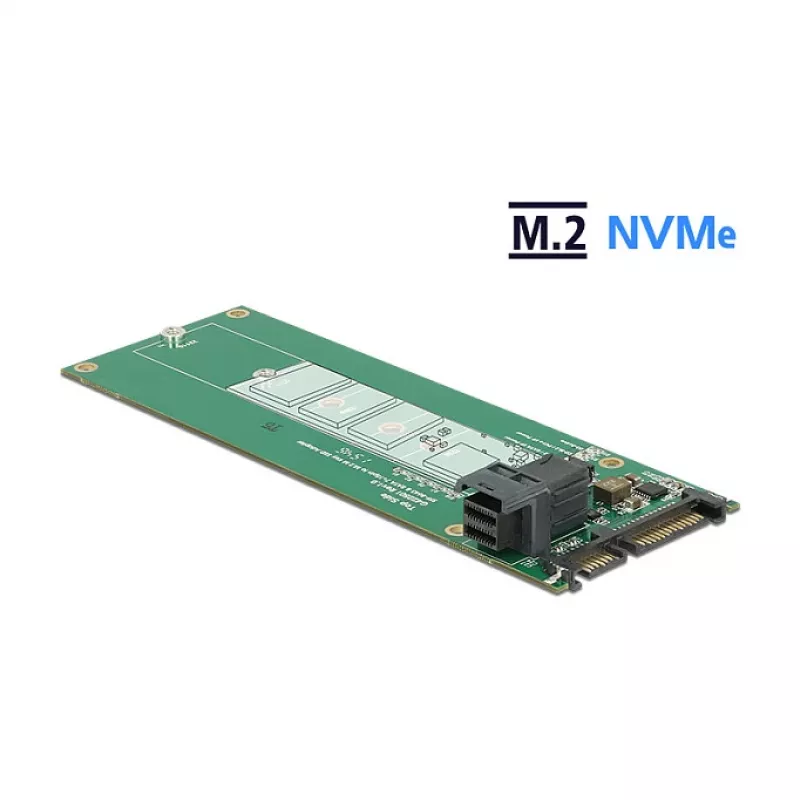

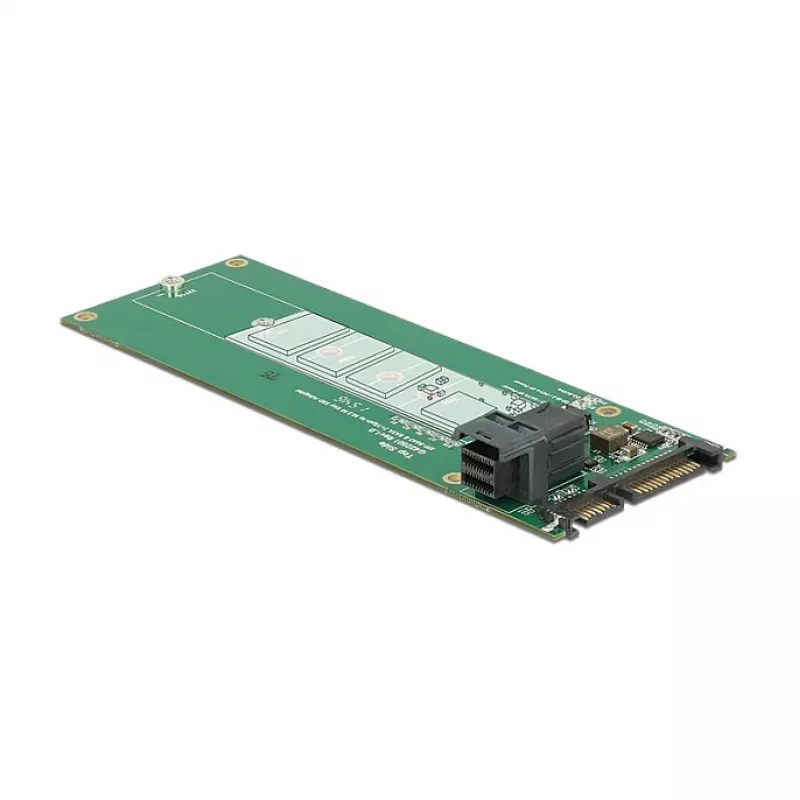

The Internal M.2 Adapter DeLOCK 62703 is an internal converter for installing M.2 NGFF SSDs in 2280, 2260, 2242 and 2230 sizes. It supports both PCIe and SATA M.2 modules and is intended to be connected to a host via a SATA 22-pin interface for SATA M.2 SSDs or via an SFF-8643 interface for PCIe M.2 SSDs. The adapter is compact and designed to expand a system's internal storage options while supporting a SATA host interface with a maximum data transfer rate of 6 Gbit/s.

Advantages

The DeLOCK 62703 supports multiple M.2 form factors (2280/2260/2242/2230) and is compatible with both SATA and PCIe M.2 SSDs, offering flexibility when upgrading storage. Its internal design allows direct installation into a system using standard SATA or SFF-8643 connections. The adapter's compact dimensions (145 mm × 50 mm × 16 mm) make it suitable for a variety of PC and server configurations.

Suitable for

• Adding or upgrading internal storage with M.2 SATA SSDs
• Connecting PCIe M.2 SSDs via SFF-8643 on compatible systems
• Systems requiring support for multiple M.2 sizes (2280/2260/2242/2230)

Key specifications

• Model: DeLOCK 62703
• Host interface: SATA (supports up to 6 Gbit/s)
• Output interface: M.2 (supports PCIe and SATA M.2 SSDs)
• Supported M.2 sizes: 2280, 2260, 2242, 2230
• Installation: internal (SATA 22-pin for SATA SSDs, SFF-8643 for PCIe SSDs)
• Dimensions (W × D × H): 145 mm × 50 mm × 16 mm
• Brand: DELOCK
• MPN: 62703
• EAN: 4043619627035

How to use

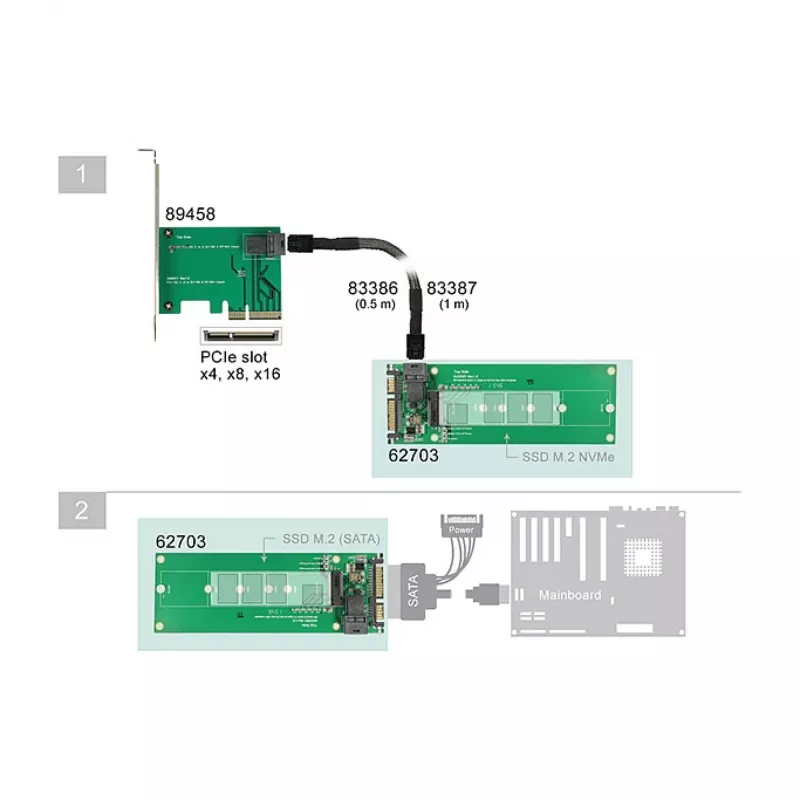

Mount the M.2 SSD in the adapter matching the module length (2280/2260/2242/2230) and secure it according to the adapter's fixation method. For SATA M.2 SSDs, connect the adapter to the motherboard or host via the SATA 22-pin interface. For PCIe M.2 SSDs, connect using the SFF-8643 interface on a compatible controller or backplane. After installation, power on the system and verify that the SSD is detected in the BIOS/UEFI or the operating system.

Recommendations

Use the adapter in systems that provide the required host interfaces (SATA 22-pin for SATA M.2, SFF-8643 for PCIe M.2). Ensure the M.2 SSD type (SATA or PCIe) matches the intended connection method. Verify BIOS/firmware support for M.2 devices and back up data before performing migrations or upgrades.
