Adaptador mini DisplayPort / DVI hembra-macho DeLOCK 65129

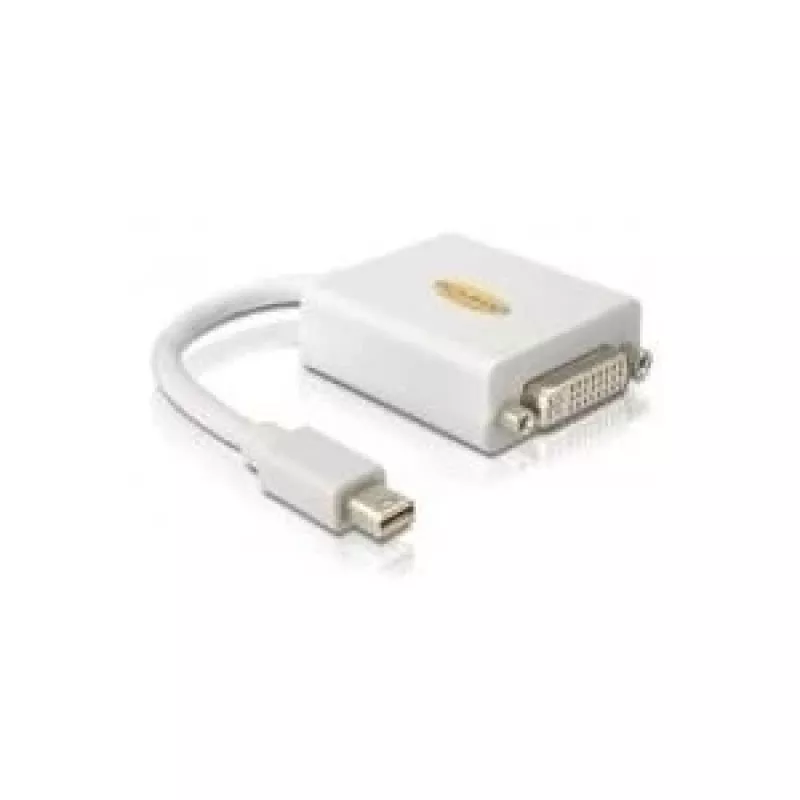

This mini DisplayPort to DVI adapter from Delock allows connection of DVI-I 24+5 displays and devices to computers with a Mini DisplayPort output such as MacBook, MacBook Pro or MacBook Air. The compact white adapter integrates a 18 cm cable and provides plug-and-play functionality without additional drivers.

Advantages

The adapter supports Mini DisplayPort 1.1a standard and transmits video signals up to Full HD (1080p). It offers a maximum transfer rate of 6.75 Gbps and a bandwidth of 225 MHz (2.25 Gbps per channel). The DVI-I 24+5 connector includes screw nuts for secure mounting and the device supports standby detection to enter sleep mode automatically.

Suitable for

• Connecting MacBook, MacBook Pro or MacBook Air to DVI-I 24+5 monitors
• Presentations with DVI-equipped projectors or displays
• Home or office setups requiring a compact Mini DisplayPort to DVI connection

Key specifications

• Connector 1: Mini DisplayPort 20-pin (male)
• Connector 2: DVI-I 24+5 (female) with screw nuts
• Standard: Mini DisplayPort 1.1a
• Maximum resolution: up to 1080p (Full HD)
• Maximum transfer rate: 6.75 Gbps
• Bandwidth: 225 MHz / 2.25 Gbps per channel
• Vertical frequency range: 162 MHz
• Cable length: 0.18 m
• Colour: White

How to use

Connect the Mini DisplayPort male plug to the computer’s Mini DisplayPort output and attach the DVI-I 24+5 female connector to the DVI cable of the monitor or projector; tighten the screw nuts to secure the connection. Once connected, the adapter is plug-and-play and the display should be detected automatically. Adjust the display resolution in the computer’s system settings if required.

Recommendations

For best results, use with DVI-I 24+5 displays and ensure cable connections are secure. When switching devices, allow the computer and monitor a few seconds to negotiate the display mode; if the display is not detected, check connectors and try adjusting resolution settings.
