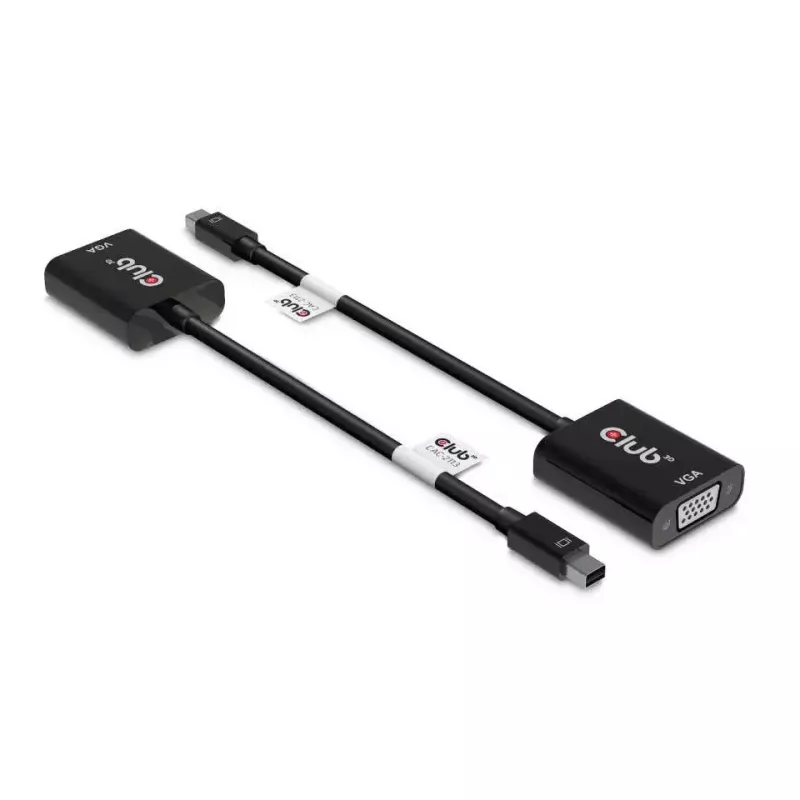

Adaptador activo CLUB3D MiniDisplayPort™ a VGA negro M/H

The Club 3D CAC-2113 is an active MiniDisplayPort to VGA signal converter that allows connecting Mini DisplayPort–equipped desktops or laptops to analog VGA televisions, monitors, or projectors. The adapter is powered by the MiniDisplayPort output, offers plug-and-play operation without driver installation, and supports resolutions up to WUXGA 1920x1200p @ 60Hz. It is compatible with AMD, Nvidia and Intel graphics solutions and has a compact, lightweight design.

Advantages

Active conversion from MiniDisplayPort to VGA ensures stable analog output and compatibility with legacy VGA displays. The adapter is bus-powered through the MiniDisplayPort interface, requires no external power or drivers, and supports WUXGA timings for high-resolution analog output. Its small size and light weight make it convenient for travel and presentations.

Suitable for

• Connecting a laptop or desktop with Mini DisplayPort output to a VGA monitor
• Using projectors or VGA televisions during presentations
• Extending or mirroring displays for workstations that require analog input

Key specifications

• Model: CLUB3D CAC-2113
• Input connector: Mini DisplayPort
• Output connector: VGA
• Maximum resolution: WUXGA 1920x1200 @ 60Hz

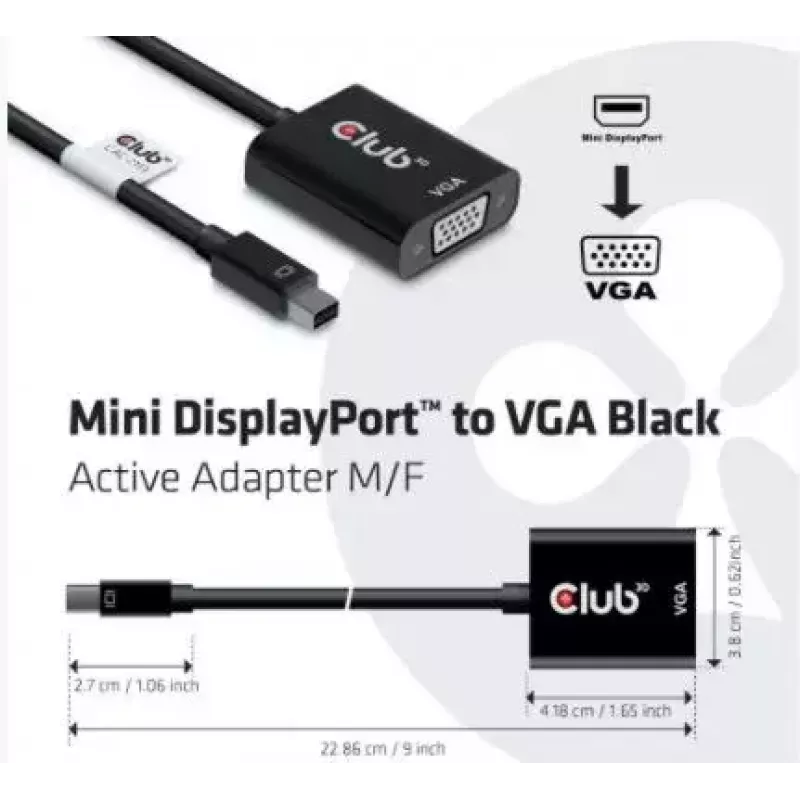

• Cable length: 0.228 m
• Weight: 26 g
• Colour: Black
• Compliance: CE, FCC, RoHS

How to use

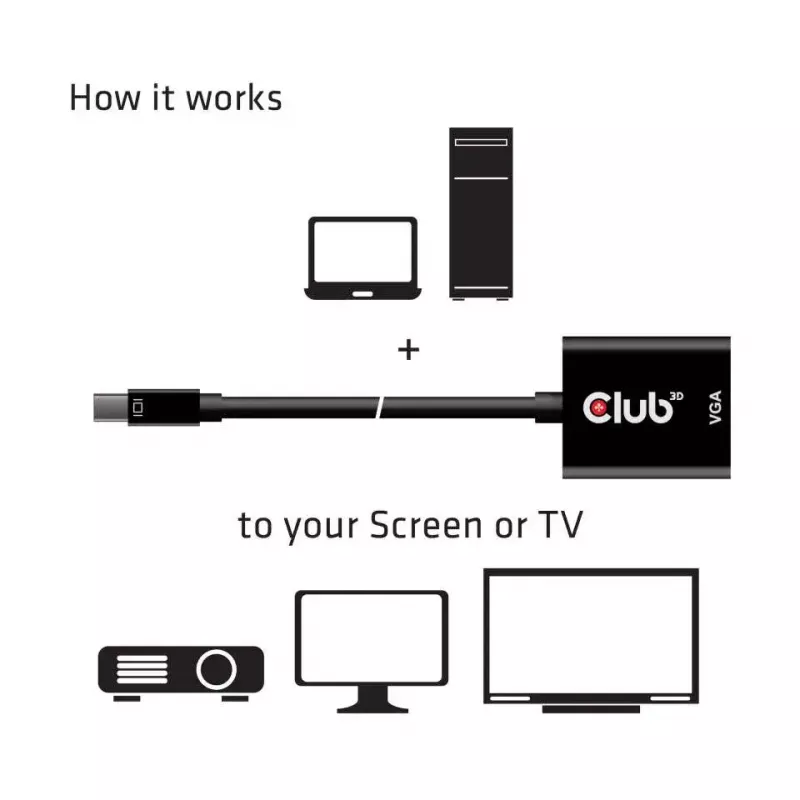

Connect the Mini DisplayPort end of the adapter to the Mini DisplayPort output on your laptop or desktop. Attach a VGA cable from the adapter's VGA connector to the VGA input of your monitor, projector, or television. The adapter draws power from the Mini DisplayPort and should be recognized automatically by the connected device; no driver installation is required. If the display does not appear, check the source device's display output settings and ensure the VGA cable and connections are secure.

Recommendations

For reliable connections use a quality VGA cable and, if needed, one of Club 3D's extension or adapter cables. If you require assistance choosing the correct cable, visit www.club-3d.com or contact [email protected] for guidance.
