Adaptador mSATA interno DeLOCK 62415

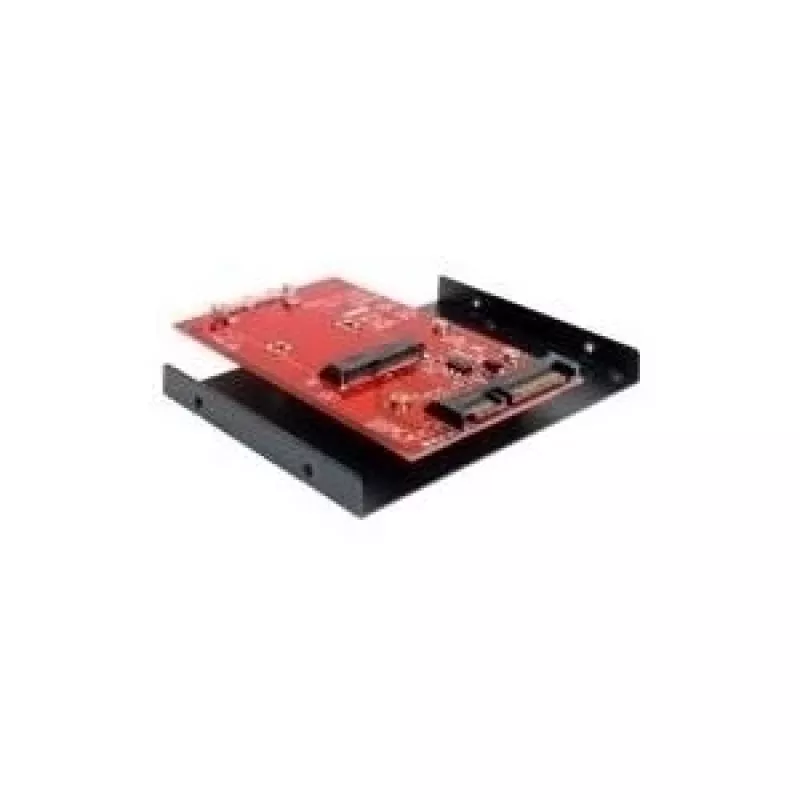

The DeLOCK 62415 is an internal mSATA adapter shaped like a 3.5" HDD that enables connection of an mSATA SSD via a SATA 22-pin port. The adapter fits into a standard 3.5" drive bay using the included metal frame and provides a SATA host interface with support for data transfer rates up to 6 Gbit/s, allowing integration of mSATA storage into systems with SATA connections.

Advantages

The adapter offers a compact 3.5" form factor for easy installation into existing drive bays, a metal mounting frame for secure fitting, and a native SATA host interface that supports up to 6 Gbit/s transfer speeds. It allows use of mSATA SSDs in systems that lack a dedicated mSATA slot while maintaining compatibility with standard SATA connections.

Suitable for

• Adding mSATA SSD storage to desktop PCs with available 3.5" drive bays
• Upgrading or expanding internal storage using mSATA modules
• Integrating mSATA drives into legacy systems that provide SATA 22-pin connectors

Key specifications

• Brand: DELOCK
• Model: 62415
• Host interface: SATA (22 pin)
• Output interface: mSATA
• Form factor: 3.5" (with metal frame for 3.5" bay installation)
• Maximum data transfer rate: up to 6 Gbit/s
• Internal installation: yes
• EAN: 4043619624157

How to use

Install an mSATA SSD onto the adapter’s mSATA connector following the SSD manufacturer’s instructions. Secure the SSD and the adapter into the included metal frame, then insert and fasten the assembly into a 3.5" drive bay in your system. Connect the system’s SATA data and power cables to the adapter’s SATA 22-pin host interface. After powering the system, configure the drive in the operating system or BIOS as required.

Recommendations

Use compatible mSATA SSDs and ensure the host system supports SATA connections and provides the necessary power. Handle the SSD and adapter with electrostatic discharge (ESD) precautions and secure all connections before powering the system.
