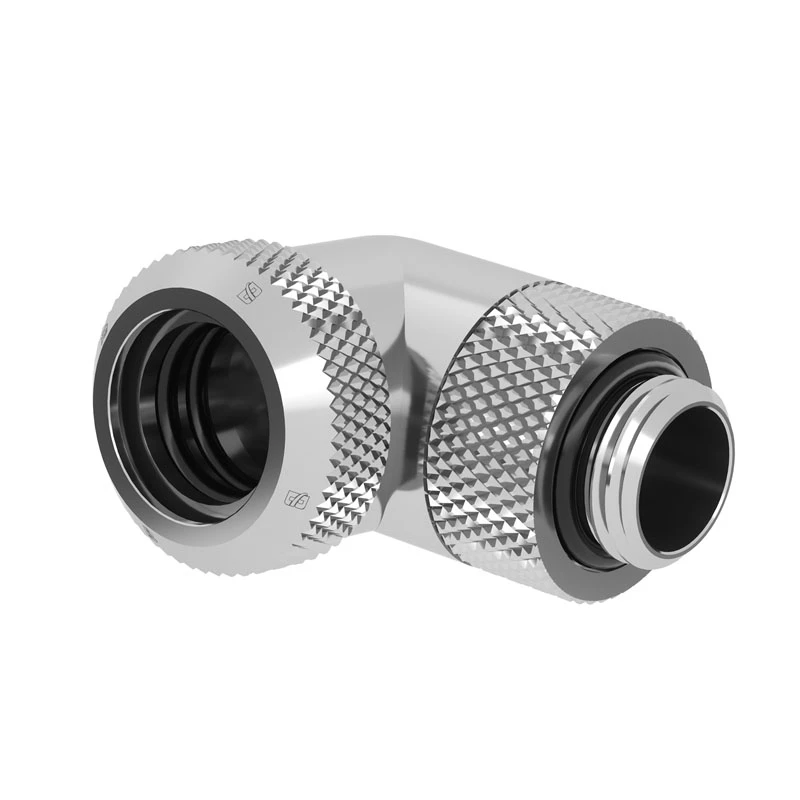

Adaptador multi-link de compresión de 90° Barrow TWT90KND-K14 — rosca macho G1/4 a tubo rígido de 14 mm, giratorio, plateado

Barrow TWT90KND-K14 is a 90-degree multi-link compression adapter designed for custom PC watercooling loops. It converts a G1/4 male fitting to a 14 mm hardtube connection and has a rotatable head that allows flexible alignment of hardline tubing in confined spaces. The adapter is made of metal with a silver finish, intended for use where a right-angle connection and a secure compression seal are required.

Advantages

The rotatable head enables precise orientation of 14 mm hard tubing without stressing fittings or tubing bends. The compression-style connection provides a reliable, leak-resistant seal for hardline installations. Metal construction and a silver finish offer durability and a neutral appearance that integrates with most watercooling hardware. The 90-degree form factor reduces the need for multiple fittings or angled tube bending when routing in tight chassis areas.

Suitable for

• Right-angle connections between G1/4 ports and 14 mm hard tubing
• Custom PC watercooling loops requiring neat hardline routing
• Installations in compact cases or around obstructed ports
• Systems where a rotatable fitting simplifies alignment and maintenance

Key specifications

• Connection A: G1/4 male thread
• Connection B: 14 mm hardtube compression interface
• Orientation: 90-degree angle
• Feature: Rotatable head for alignment
• Material: Metal construction with silver finish

How to use

Ensure both the G1/4 port and the 14 mm hardtube are clean and free of debris. Thread the G1/4 male end into the corresponding female port by hand to avoid cross-threading, then tighten to a snug fit using appropriate tools if necessary. Insert the 14 mm hardtube into the compression side and secure according to the compression collar design until the tube is firmly held. Rotate the head to the desired orientation before final tightening to achieve optimal routing and alignment. After installation, pressure-test the loop or run a leak test with coolant to confirm a secure seal.

Recommendations

Use with properly sized 14 mm hard tubing and compatible G1/4-threaded components. Avoid over-tightening metal threads; hand-start threads and then use a wrench for final, moderate tightening. When routing tubing in tight spaces, rotate the adapter into position before fully securing the compression collar to prevent stress on the tube and fittings.
