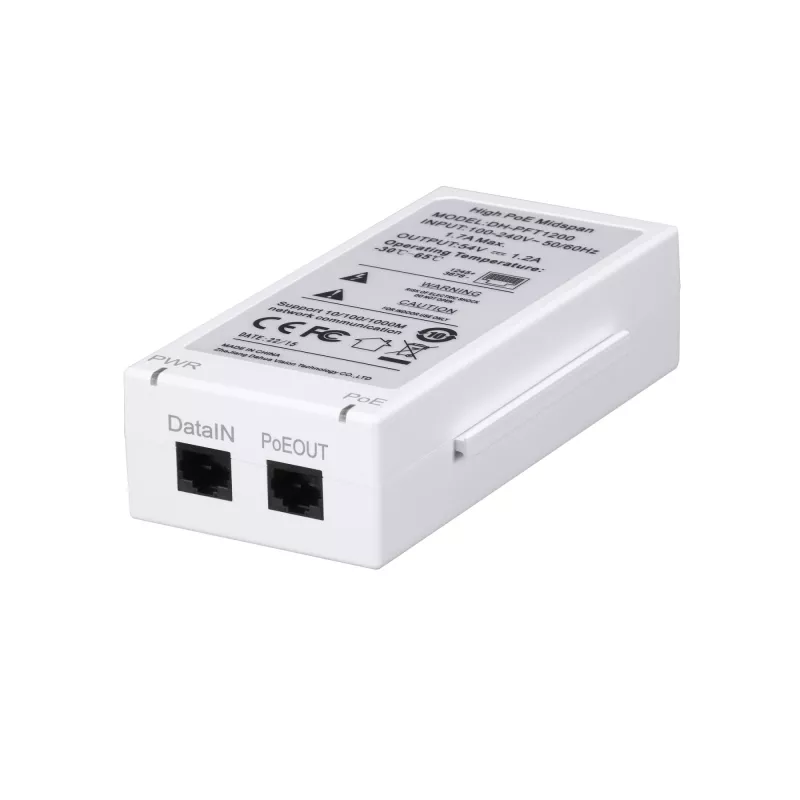

Adaptador PoE Dahua Technology PFT1200 Gigabit Ethernet

The Dahua Technology PFT1200 is a Gigabit Ethernet PoE adapter designed to deliver both data and power over standard Ethernet cabling. It supports 10/100/1000 Mbit/s data rates, provides up to 60 W of power per port, and can operate over distances up to 300 meters. The adapter is compact, with dimensions of 150 x 70 x 39 mm and a weight of 390 g, making it suitable for installations where space is limited.

Advantages

The PFT1200 offers gigabit-speed data transmission combined with Power over Ethernet capability, enabling simultaneous delivery of network connectivity and power to compatible devices. Its extended operating distance of up to 300 meters increases installation flexibility compared with standard PoE distance limits. The unit’s compact size supports mounting in confined spaces and simplifies integration into existing network setups.

Suitable for

• Powering PoE-compatible IP cameras and network devices
• Extending network and power delivery in surveillance and access control systems
• Deployments requiring gigabit data rates with centralized power over Ethernet

Key specifications

• Data rate: 10/100/1000 Mbit/s (Gigabit Ethernet)
• Power output: up to 60 W per port
• Maximum operating distance: 300 meters
• Ethernet ports: 2 RJ-45 LAN ports
• Dimensions: 150 x 70 x 39 mm
• Weight: 0.39 kg

How to use

Connect the PFT1200 to a network switch or router using an Ethernet cable on the LAN input, and connect the PoE output to the powered device via the output LAN port. Ensure cables and connected devices support the required data rate and power class. Place the adapter in a dry, ventilated location and secure mounting according to the installation environment to maintain proper operation and heat dissipation.

Recommendations

For reliable performance, use high-quality Cat5e or Cat6 cabling, verify device PoE compatibility and power requirements before connection, and avoid exceeding the specified maximum operating distance of 300 meters.
