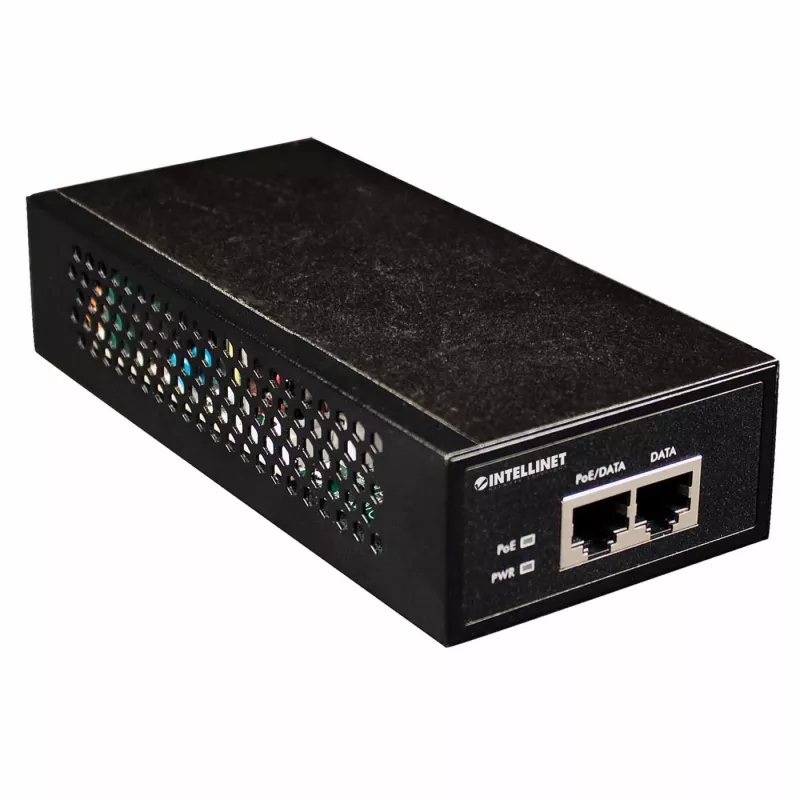

Intellinet Inyector Gigabit High-Power PoE+, 1 x 30 W, IEEE 802.3at/af Power over Ethernet (PoE+/PoE)

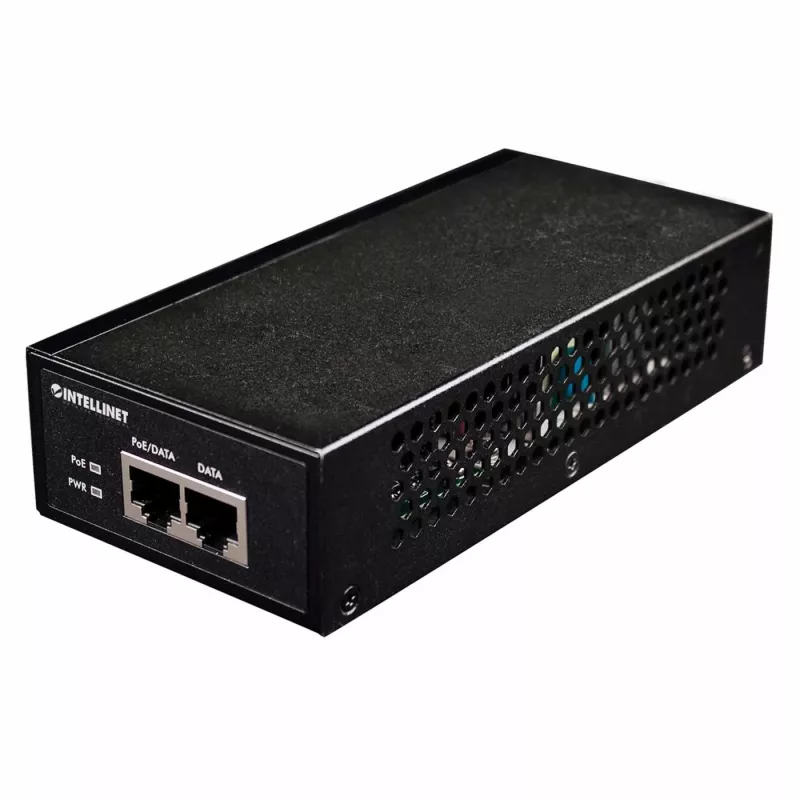

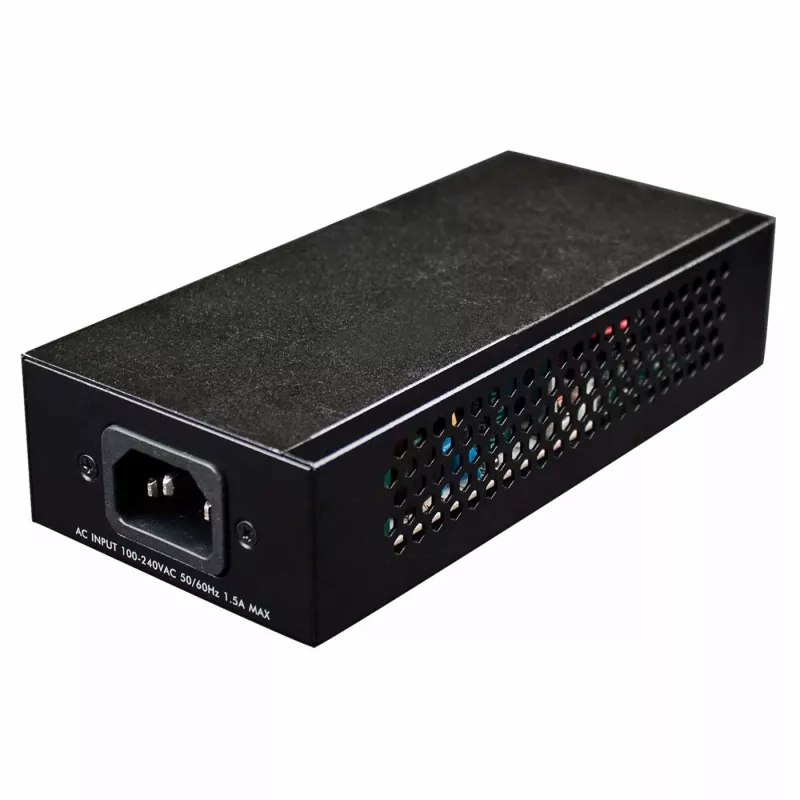

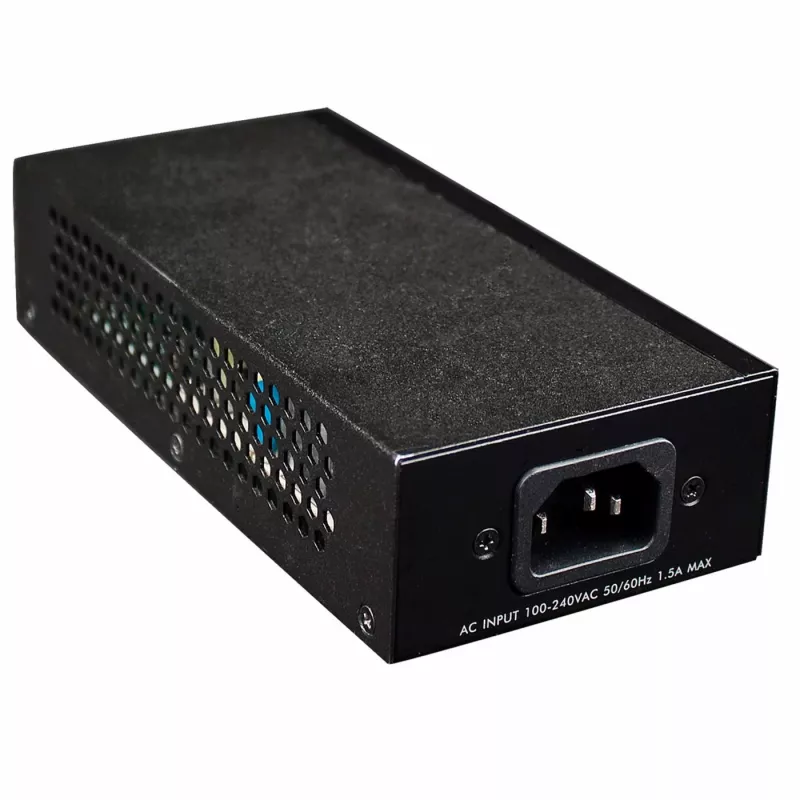

The Intellinet Gigabit High-Power 30W PoE+ Injector supplies up to 30 watts of power over existing Cat5/Cat5e/Cat6 cabling while carrying Gigabit Ethernet data, enabling IEEE 802.3af/at devices to be powered from a non-PoE switch port. Housed in a durable metal case, the injector supports 10/100/1000 Mbit/s data rates and includes LED indicators for power and PoE status. It accepts 100–240 V input and is certified to FCC, CE, RoHS, UKCA and NDAA standards.

Advantages

Using the PoE Injector reduces installation costs by delivering both power and data over existing twisted-pair cabling, eliminating the need for separate AC power lines at the device location. The 30 W output supports power-hungry PDs such as access points and IP cameras. Built-in protections guard against short circuits, current overloads and high voltages, while the metal enclosure and status LEDs support reliable operation and easy monitoring.

Suitable for

• Wireless access points (IEEE 802.3af/at)
• IP phones
• Network/IP cameras
• Any IEEE 802.3af/at-powered device requiring up to 30 W

Key specifications

• Power over Ethernet standard: IEEE 802.3af/at (PoE+)
• Maximum PoE output power: 30 W
• Data rates: 10/100/1000 Mbit/s (Gigabit Ethernet)

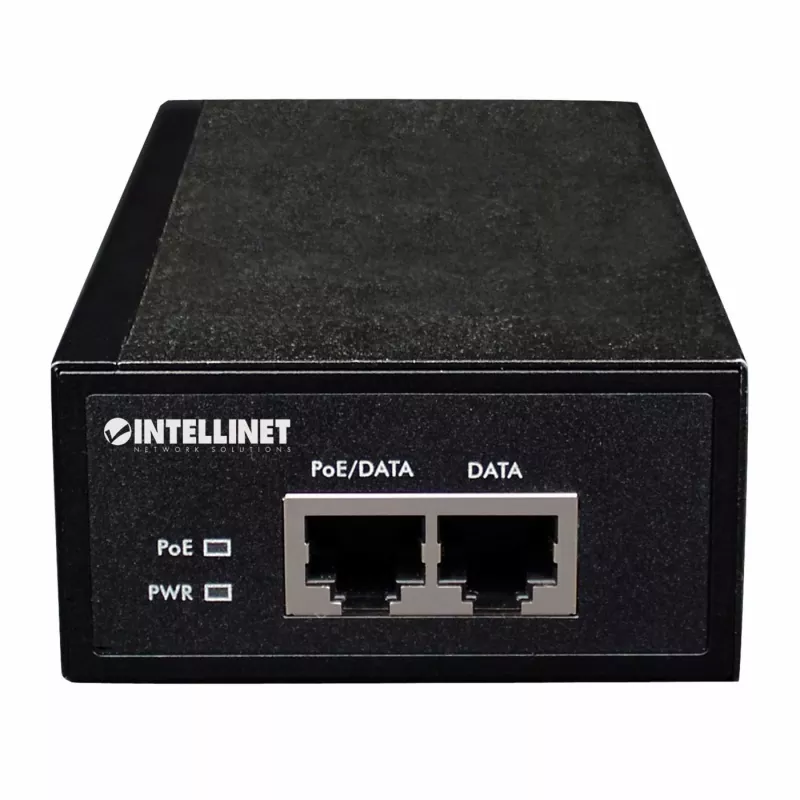

• Ports: 2 x RJ-45 (LAN in + PoE out)

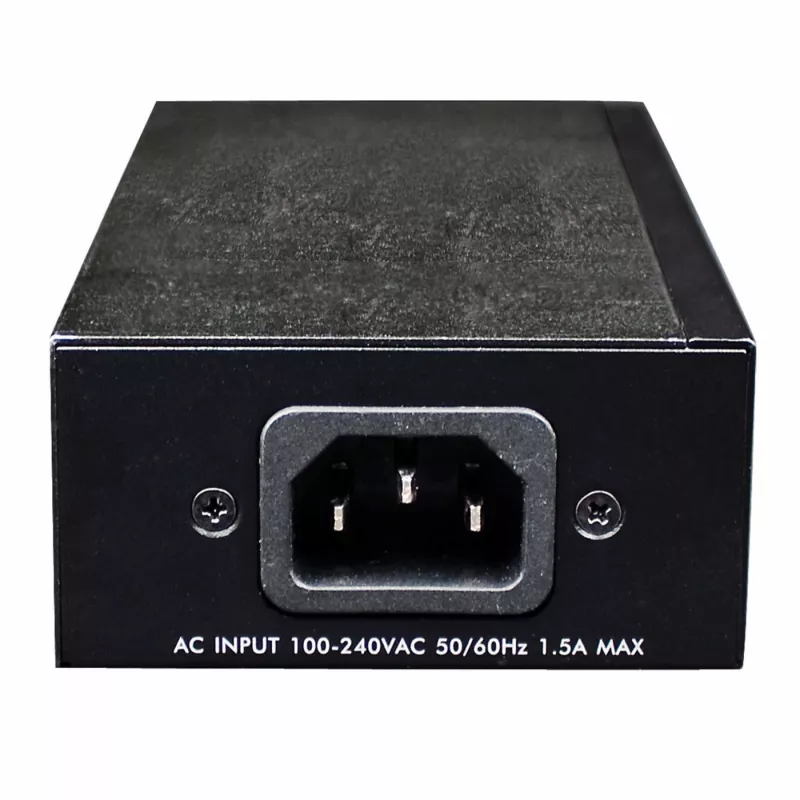

• Input voltage: 100–240 V AC
• Maximum power consumption: 42 W
• Certifications: FCC, CE, RoHS, UKCA, NDAA
• Dimensions: 72 x 154 x 35 mm
• Weight: 0.79 kg
• Colour: Black

How to use

Connect the injector's LAN input port to a non-PoE switch or router using a Cat5/5e/6 cable. Plug the powered output port into the IEEE 802.3af/at device (for example an access point, IP camera or IP phone) with another Cat5/5e/6 cable. Apply mains power to the injector (100–240 V). Verify operation using the power and PoE LEDs; the connected device should power on and establish a network connection via the Gigabit data link.

Recommendations

Use Cat5e or Cat6 cabling for best Gigabit performance and to minimize power loss. Ensure connected devices are IEEE 802.3af/at-compliant and require no more than 30 W. Install the injector in a ventilated area and avoid exposing it to excessive moisture or heat. For multiple devices, use a PoE switch or multiple injectors sized to the cumulative power requirements.
