Adaptador PoE Hikvision DS-3E0103DP-E/R Fast Ethernet

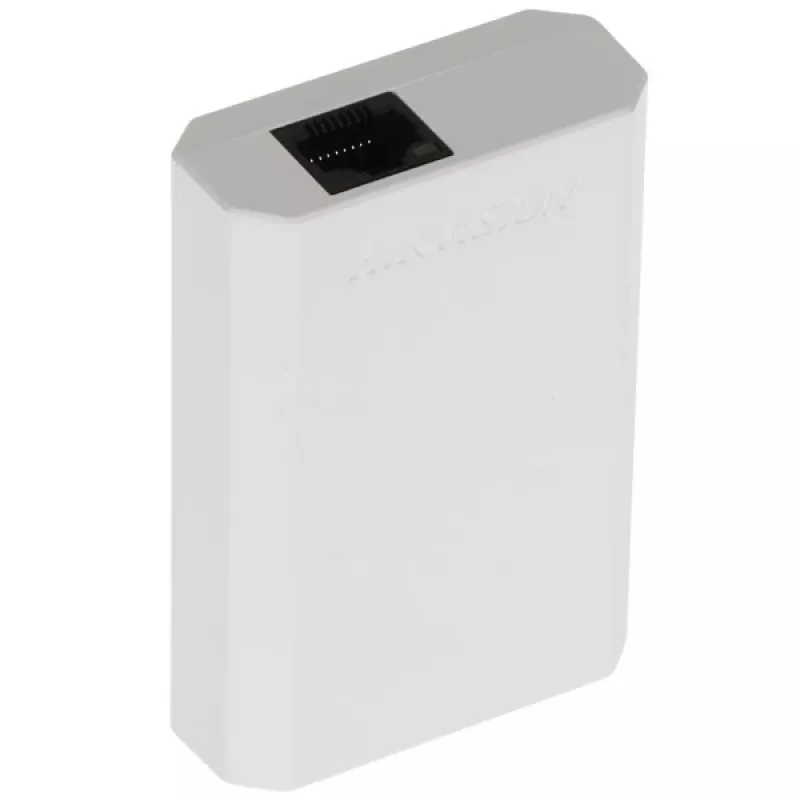

The Hikvision DS-3E0103DP-E/R Fast Ethernet PoE adapter supplies data and power over a single cable to compatible devices. Designed for small-scale network setups and camera deployments, the adapter combines one 10/100 Mbps PoE IN port with two 10/100 Mbps PoE OUT ports to deliver both connectivity and PoE power in a compact, desktop-friendly enclosure. The unit supports IEEE 802.3af and IEEE 802.3at standards and provides up to 30 W total PoE output, allowing straightforward integration with IP cameras and other low- to mid-power PoE devices.

Advantages

The adapter reduces cabling requirements by carrying power and data on the same Ethernet cable, simplifying installation and lowering infrastructure costs. Compliance with IEEE 802.3af/at ensures broad device compatibility and predictable power delivery. The plug-and-play design removes the need for configuration, enabling rapid deployment. Its lightweight plastic housing and white finish suit desktop or near-device mounting while keeping the unit unobtrusive.

Suitable for

• Powering and connecting IP cameras in small surveillance systems
• Adding PoE capability to network points without a PoE switch
• Deployments that require a compact, plug-and-play PoE solution
• Temporary or fixed installations where up to 30 W total PoE power is sufficient

Key specifications

• Ports: 1 × 10/100 Mbps PoE IN, 2 × 10/100 Mbps PoE OUT
• PoE standards supported: IEEE 802.3af, IEEE 802.3at
• Total PoE output power: up to 30 W
• Data speed: 10/100 Mbps (Fast Ethernet)
• Form factor: compact desktop enclosure
• Material: plastic
• Colour: white
• Weight: 0.046 kg

How to use

Connect a PoE-capable power source or PoE injector to the PoE IN port using a standard Ethernet cable. Connect up to two PoE-powered devices to the PoE OUT ports with Ethernet cables. Ensure connected devices’ total power draw does not exceed the adapter’s 30 W limit. No additional configuration is required; the device negotiates PoE according to the IEEE 802.3af/at protocol. Place the adapter on a stable, ventilated surface and avoid exposure to moisture or extreme temperatures.

Recommendations

When using the adapter with multiple devices, calculate the combined power consumption of connected equipment to stay within the 30 W total. Use quality shielded Ethernet cables for reliable data and power delivery over longer runs, and install the adapter near the powered devices or in a protected area to reduce cable length and potential signal loss.
