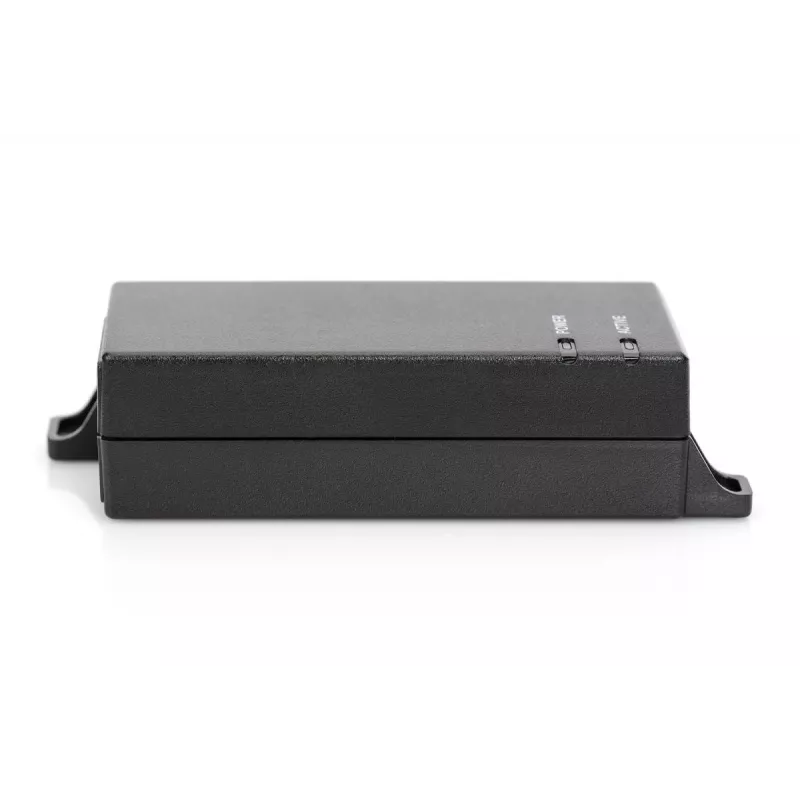

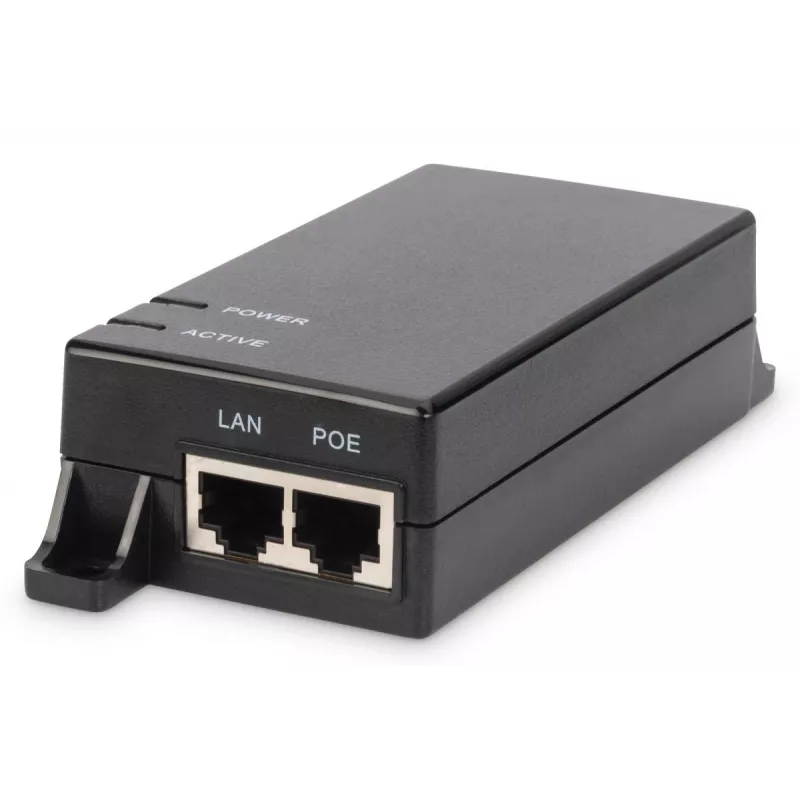

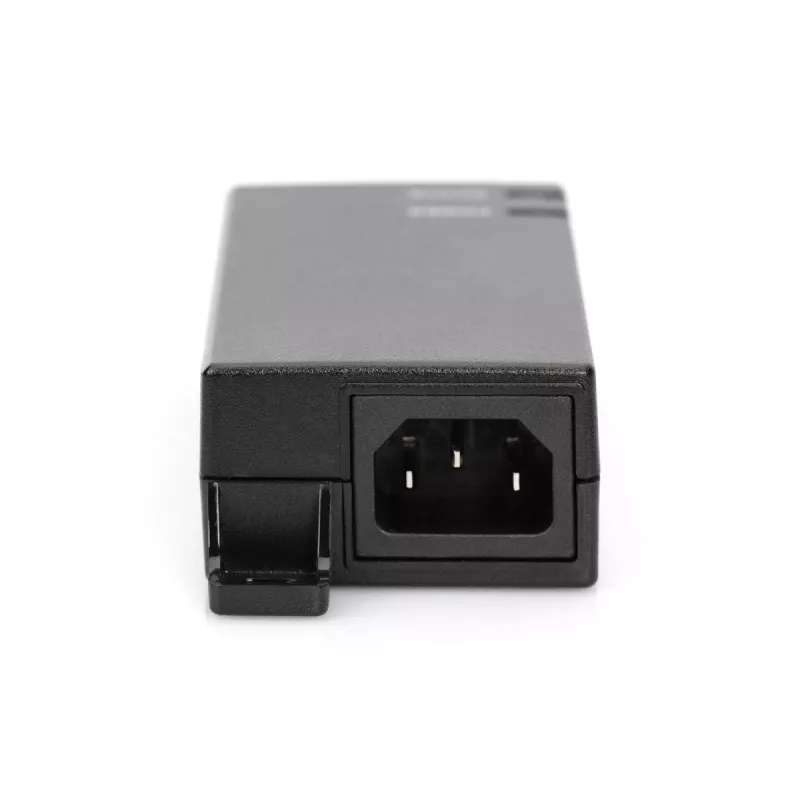

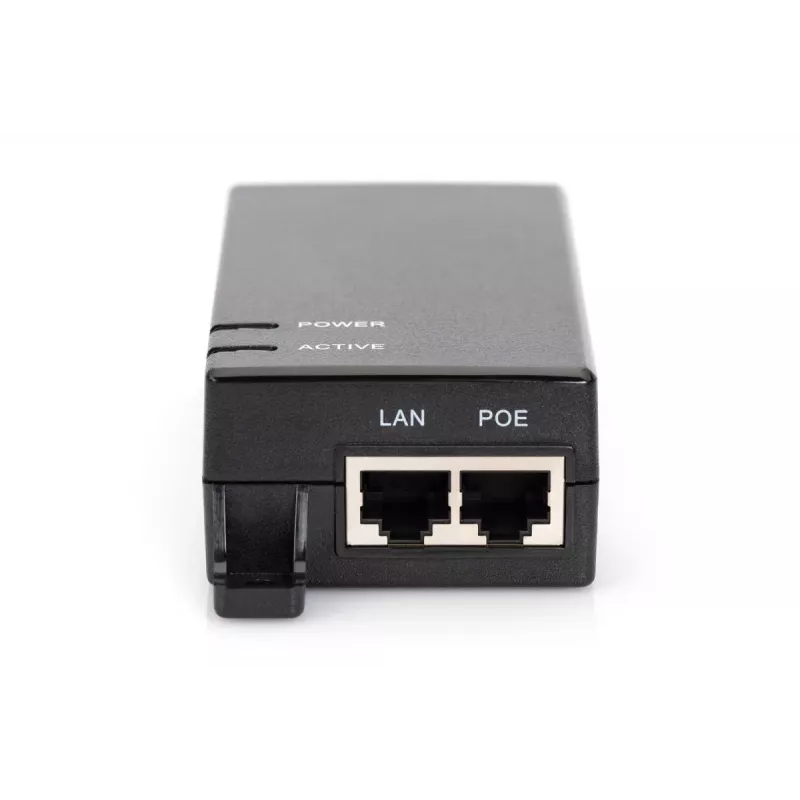

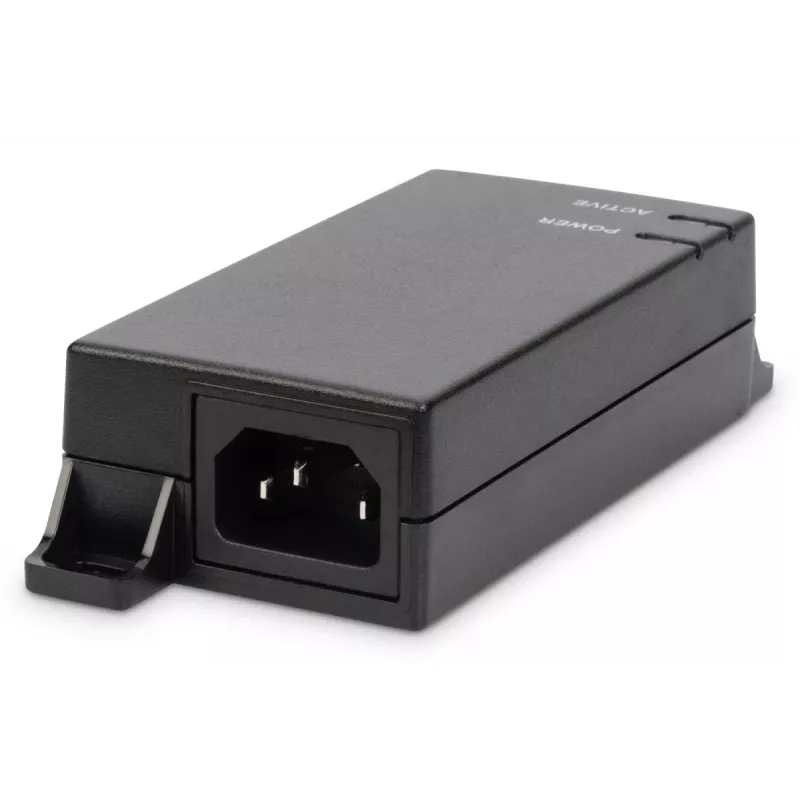

Inyector PoE Gigabit DIGITUS, 802.3af 10/100/1000Mbps, pines de alimentación:4/5(+),7/8(-), salida máx. 48V, 15.4W

The PoE Injector Digitus DN-95102-1 provides power and data over a single Ethernet cable, enabling installation of PoE-compatible devices such as wireless access points, IP phones and network cameras without separate power lines. The compact injector supports Gigabit Ethernet and complies with the IEEE 802.3af PoE standard, supplying up to 15.4 W at 48 V.

Advantages

The injector reduces cabling by delivering both data and 48 V power through one cable, supports Gigabit speeds (10/100/1000 Mbps) and is fully compliant with the 802.3af standard. Its small dimensions make it easy to integrate into existing network setups, and the device has low power consumption when idle.

Suitable for

• IP network cameras
• Wireless access points (APs)
• IP phones and VoIP devices
• Other PoE-compatible devices requiring up to 15.4 W

Key specifications

• Standard: IEEE 802.3af (PoE)
• Output voltage: 48 V
• Maximum output power: 15.4 W
• Ethernet data rates: 10/100/1000 Mbps (Gigabit)
• Ethernet ports (RJ-45): 1
• Power consumption (idle/max): 1.6 W max.
• Dimensions: 56 x 134 x 33 mm
• Manufacturer part number (MPN): DN-95102-1
• EAN: 4016032441120

How to use

Connect the injector to your network switch or router using a standard Ethernet cable on the data input port, then connect the PoE output port to the PoE-compatible device using a second Ethernet cable. Plug the injector into a power outlet. The connected device will receive both data and 48 V power through the Ethernet cable, eliminating the need for a separate power adapter at the device.

Recommendations

Use Cat5e or higher-rated Ethernet cables for reliable Gigabit performance and to ensure proper power delivery. Verify that the powered device is IEEE 802.3af compatible and does not require more than 15.4 W. Install the injector in a well-ventilated area and avoid exposure to moisture.
